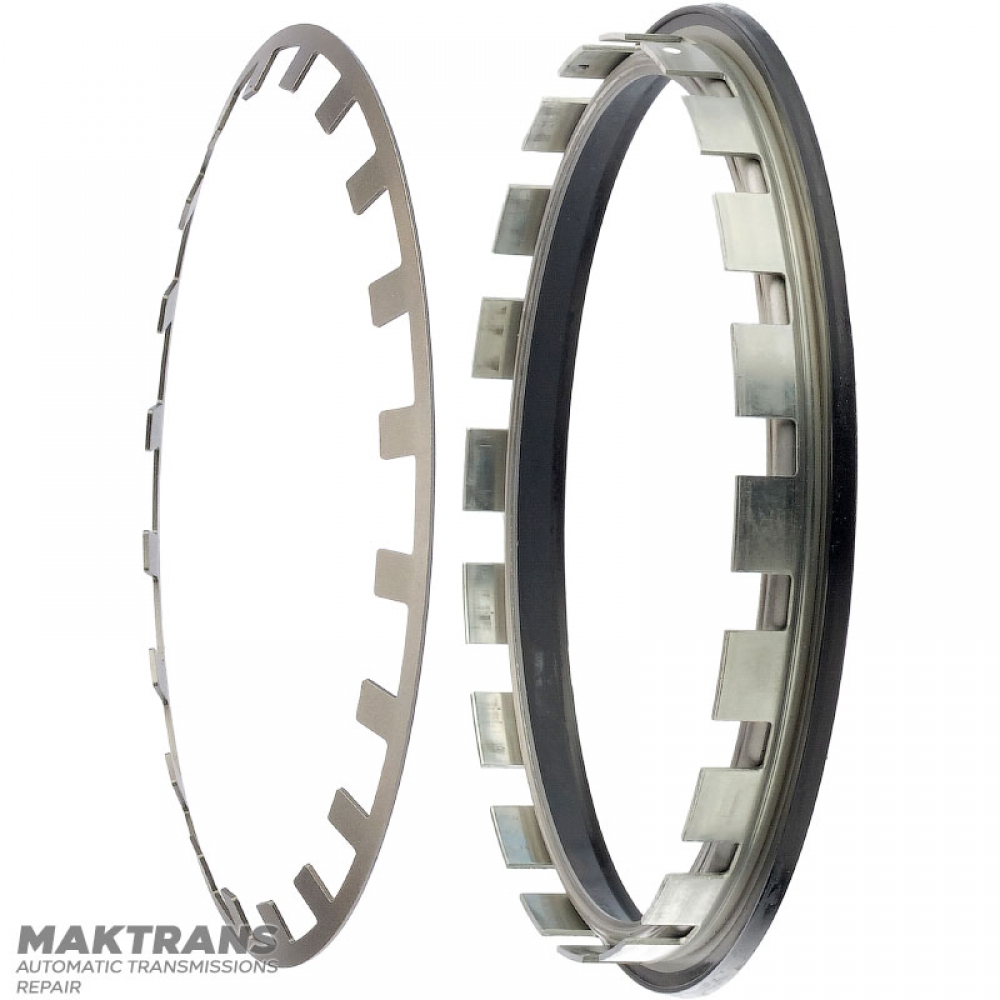

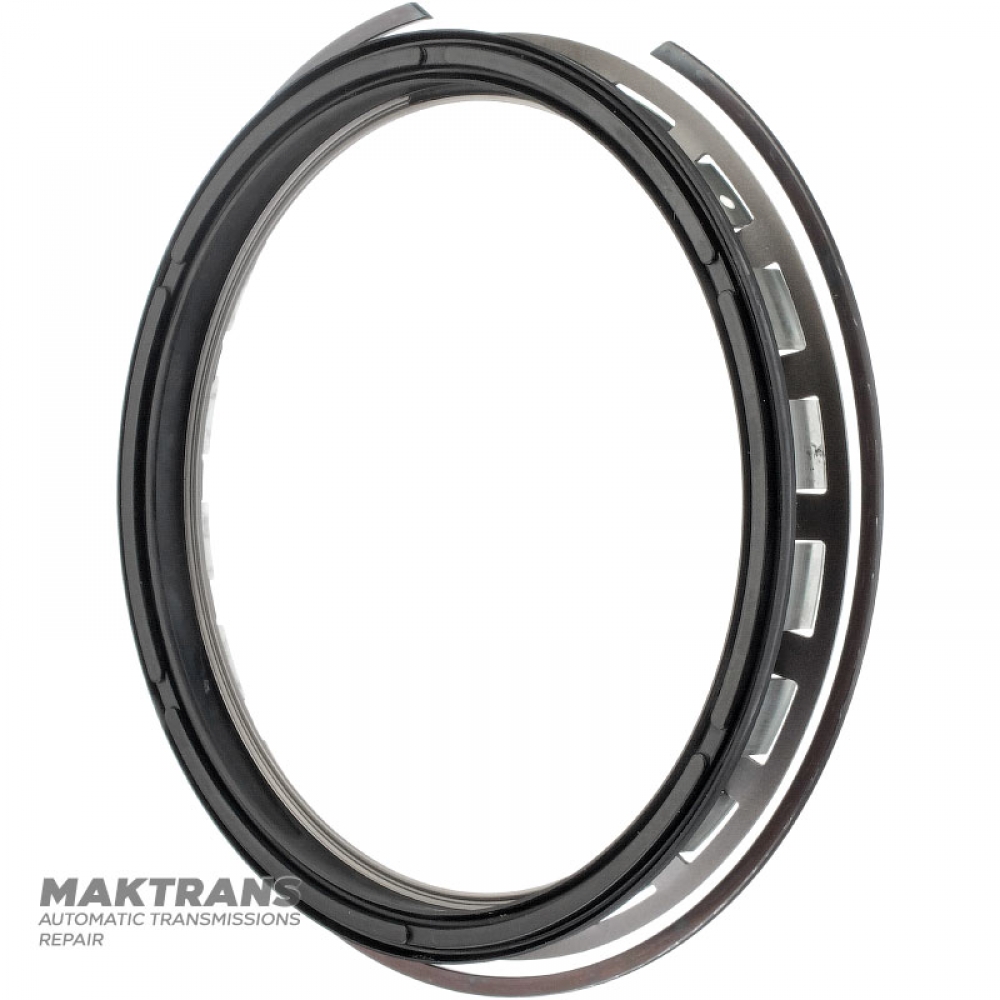

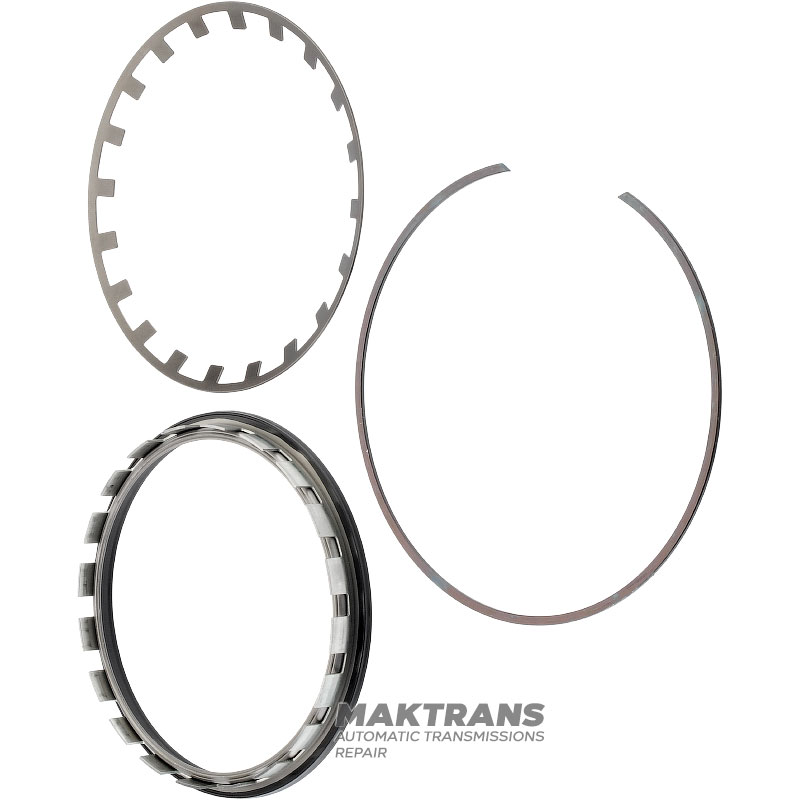

Rubberized piston 2-6 Clutch GM 6L45, 6L50 — 24225524, 24225561

Piston 2-6 Clutch:

• Overall height - 21.20 mm;
• Outer diameter - 184.45 mm;
• Inner diameter - 163.70 mm;

Return spring:

• Thickness - 1.30 mm;
• Outer diameter - 184.95 mm;

Retaining ring:

• Thickness - 2.55 mm;
• Outer diameter - 203.40 mm;
• Inner diameter - 195.50 mm;
