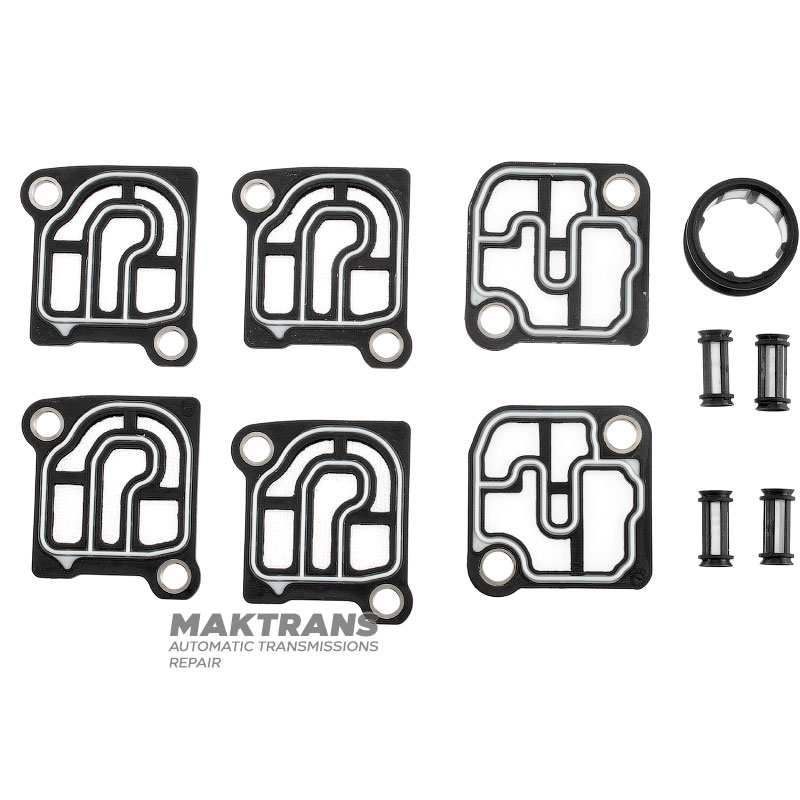

Set of gaskets for hydraulic unit VAG 0B5 DL501 - with mesh filters

The kit includes:

Mesh filters:

• 6 - solenoid filters;
• 4 — cylindrical filters of the hydraulic unit (16.52 mm x 7.95 mm);
• 1 — cylindrical filter of the hydraulic unit (16.35 mm x 24.35 mm);

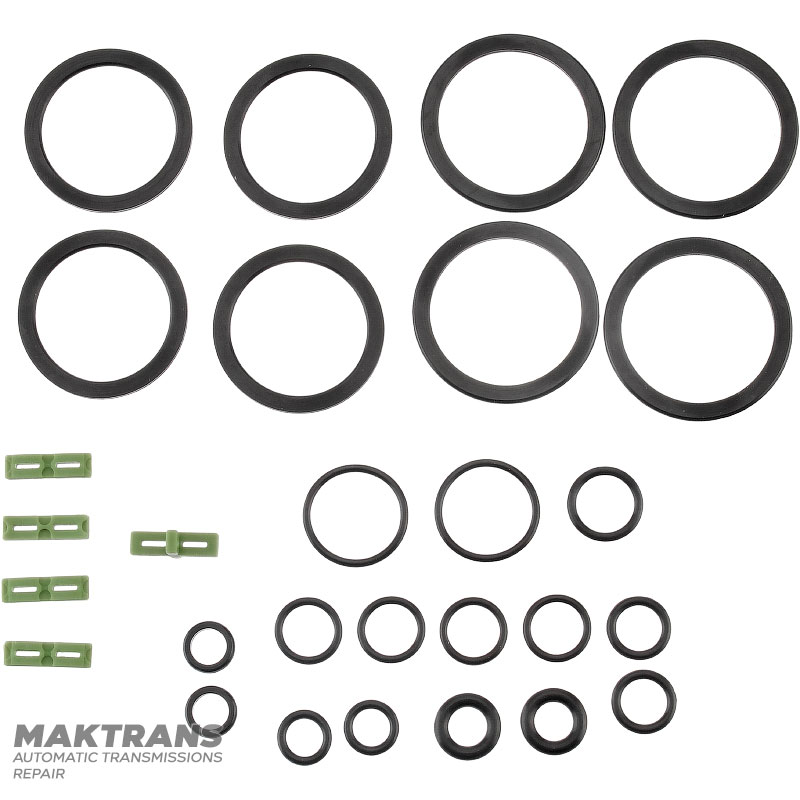

Flat section rubber rings:

• 4 rings - thickness 2 mm, outer Ø 40.40 mm, inner Ø 32.65 mm;
• 4 rings - thickness 2 mm, outer Ø 37.50 mm, inner Ø 29.65 mm;
• 2 rings - thickness 3.10 mm, outer Ø 11.20 mm, inner Ø 7.50 mm;

Round rubber rings:

• 2 rings - thickness (1.75 x 22.50 x 18.95);
• 4 rings - thickness (1.80 x 14.50 x 10.85);
• 2 rings - thickness (1.95 x 13.60 x 9.45);
• 2 rings - thickness (2 x 11.95 x 7.80);
• 2 rings - thickness (3.05 x 14.10 x 8.20);
• 1 ring - thickness (1.95 x 16.25 x 12.15);

Solenoid contact insulators:

• 4 insulators - 18.75 x 5.25 x 3.30;
• 1 insulator - 18.75 x 5 x 2.65 (11.15);
