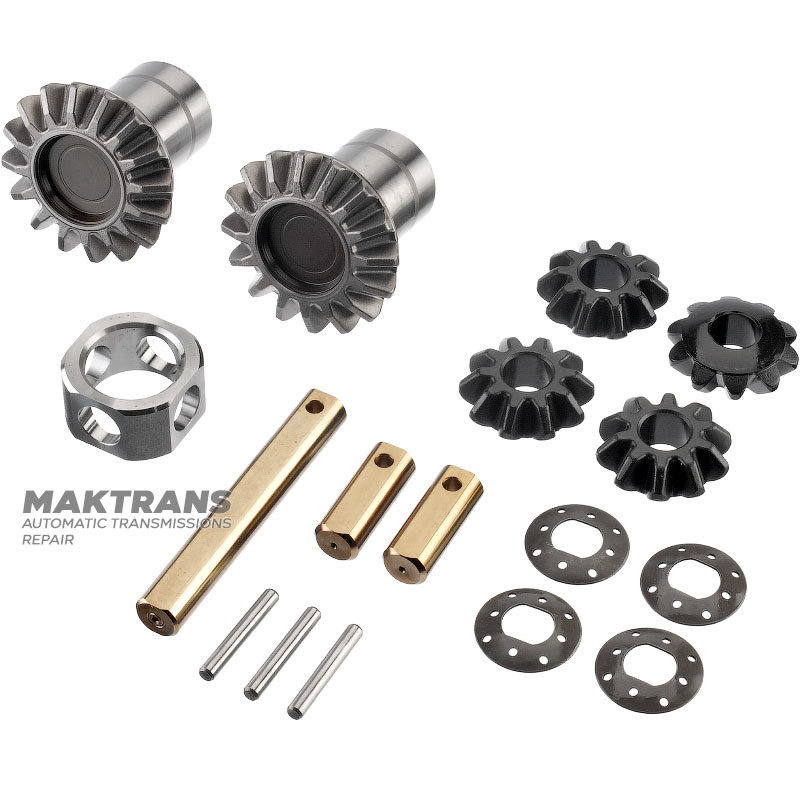

Set of half-axle gears (2 pcs.) and satellites (4 pcs.) Aisin Warner AWF8G30 — outer Ø of half-axle gear 40 mm (37 splines on the inner side)

Half-axle gears (2 pcs. in a set):

• Overall height - 68 mm;
• Neck height - 54 mm;
• Outer diameter of the neck - 40 mm;
• Number of slots on the inner side - 37 pcs.;
• Number of teeth on the gear - 16 pcs.;
• Gear outer diameter - 71.45 mm;

Satellites and their components:

Satellite gears (4 pcs. in a set):

• Overall height - 17.80 mm;
• Inner diameter - 17 mm.;
• Outer diameter - 47.75 mm;
• Number of teeth - 10 pcs.;

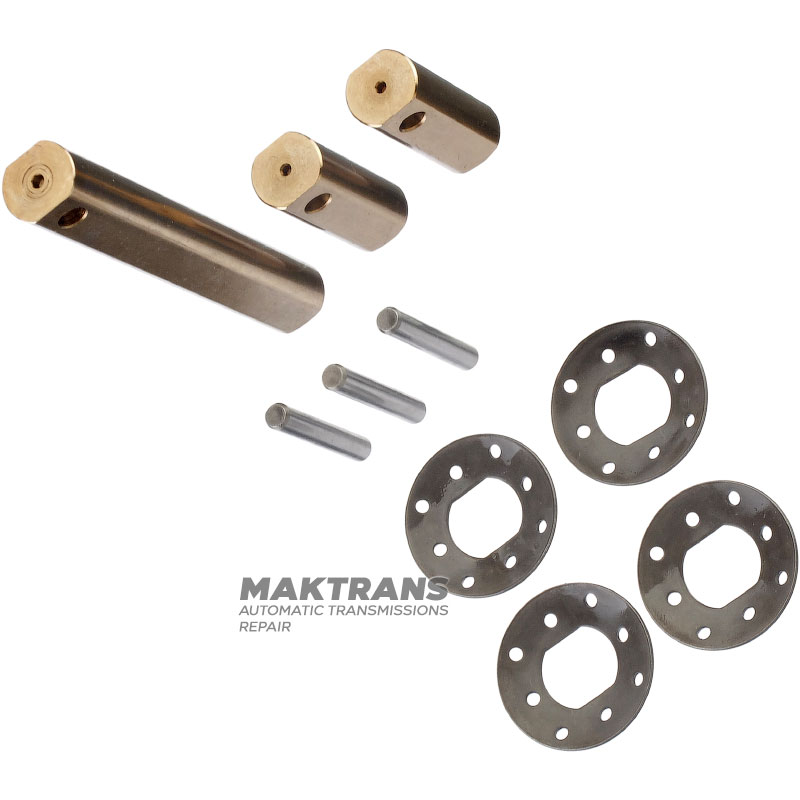

Satellite axes:

Short:

• Length - 44.20 mm;
• Outer diameter - 17 mm;
• Quantity in the set - 2 pcs.;

Long:

• Length - 110.60 mm;
• Outer diameter - 17 mm;
• Quantity in the set - 1 pc.;

Pins for fixing the satellite axles:

• Length - 41.05 mm;
• Diameter - 5.95 mm;
• Quantity in the set - 3 pcs.;

Central axle support:

• 25.05 mm x 44.50 mm x 33.95 mm (int.Ø);
• Quantity in the set - 1 pc.;
