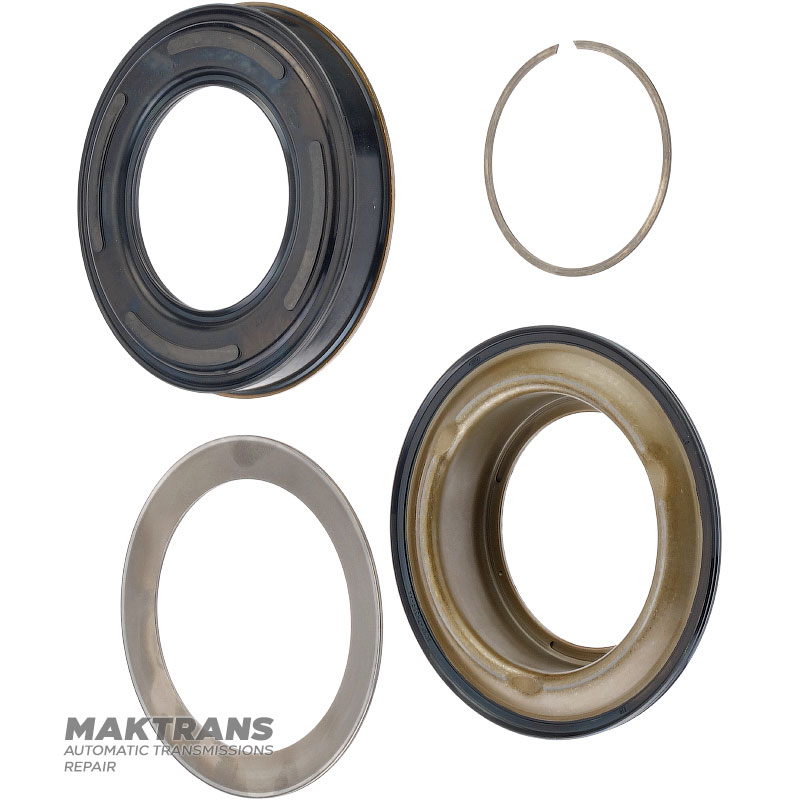

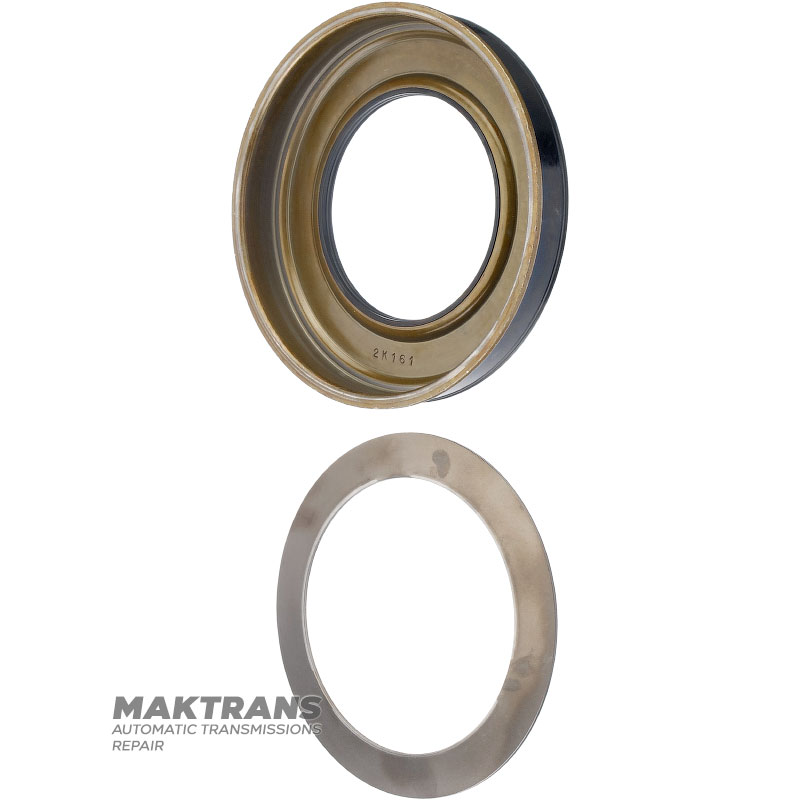

Set of rubberized pistons DIRECT Clutch FORD 5R110W — 3C3Z-7A262-DA, 3C3Z-7H359-AA

Piston (3140 in the diagram):

• Overall height - 32.50 mm;
• Outer diameter - 148.20 mm;
• Inner diameter - 85.45 mm;
• 3C3P-7H359-AA;

Piston (809 in the diagram):

• Overall height - 26 mm;
• Outer diameter - 90.40 mm;
• Inner diameter - 155.40 mm;
• 3C3P-7F254-AC;

Return spring:

• Thickness - 2.15 mm;
• Outer diameter - 145.95 mm;
• Inner diameter - 110 mm;

Retaining ring:

• Thickness - 1.25 mm;
• Outer diameter - 86.61 mm;
• Inner diameter - 79.90 mm;

Tags: 3C3Z-7H359-AA, 3C3Z-7A262-DA, 3C3Z-7A262-AA, 3C3Z-7A262-BA
