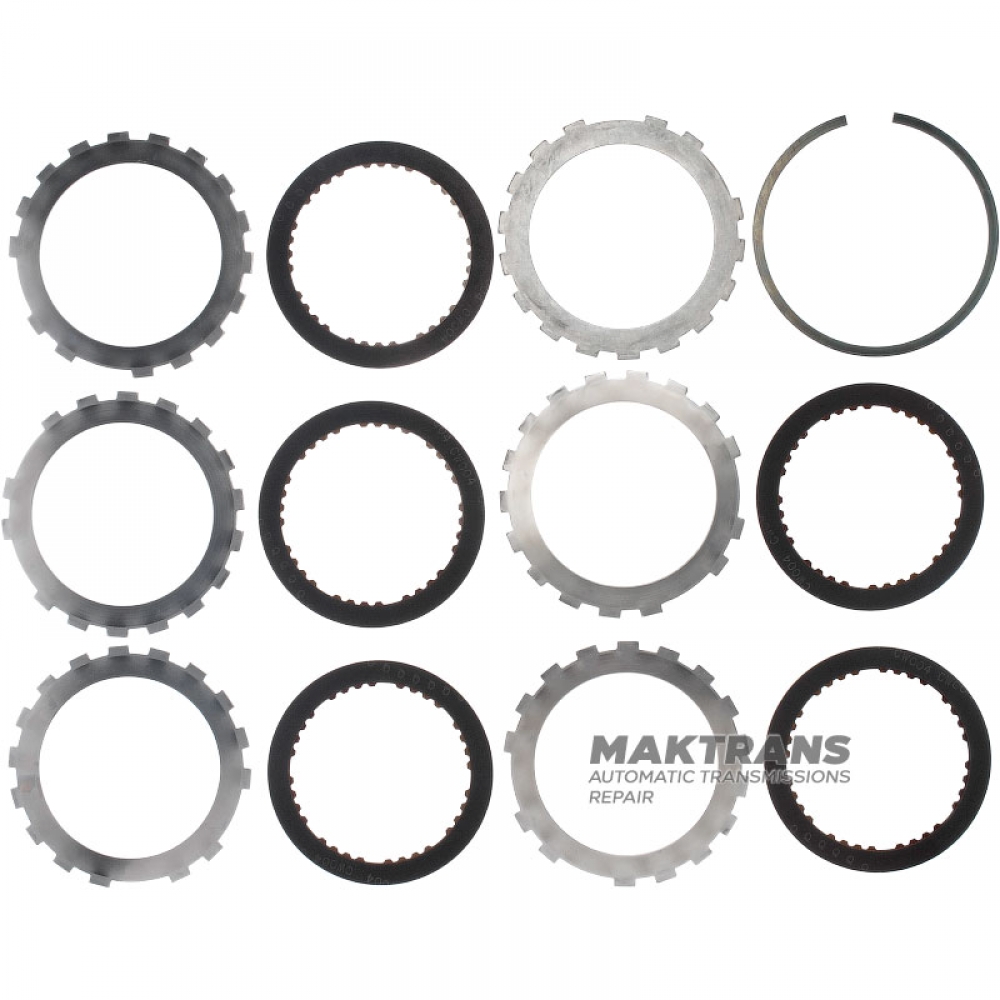

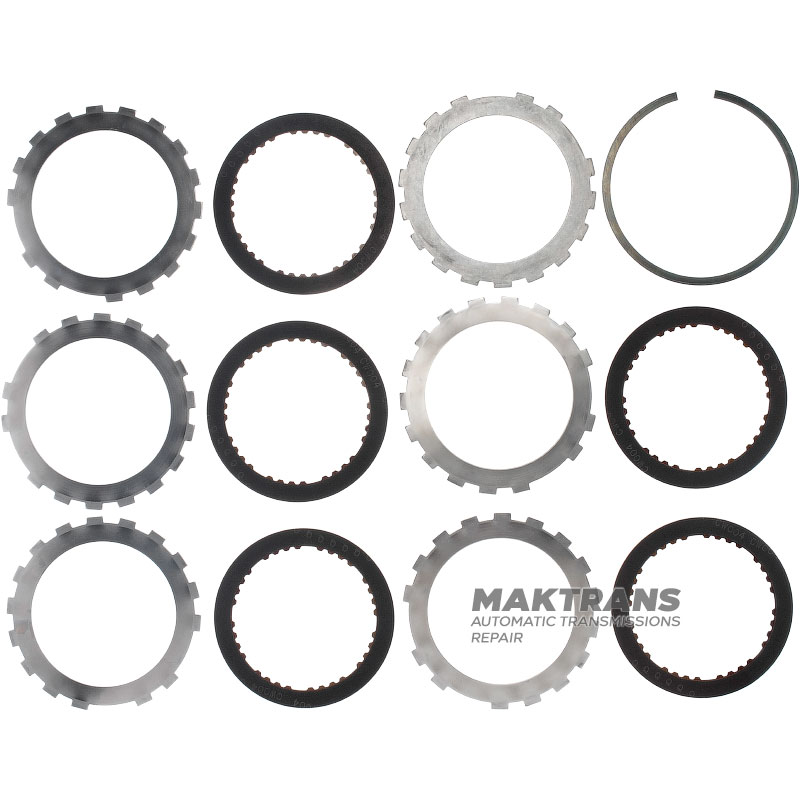

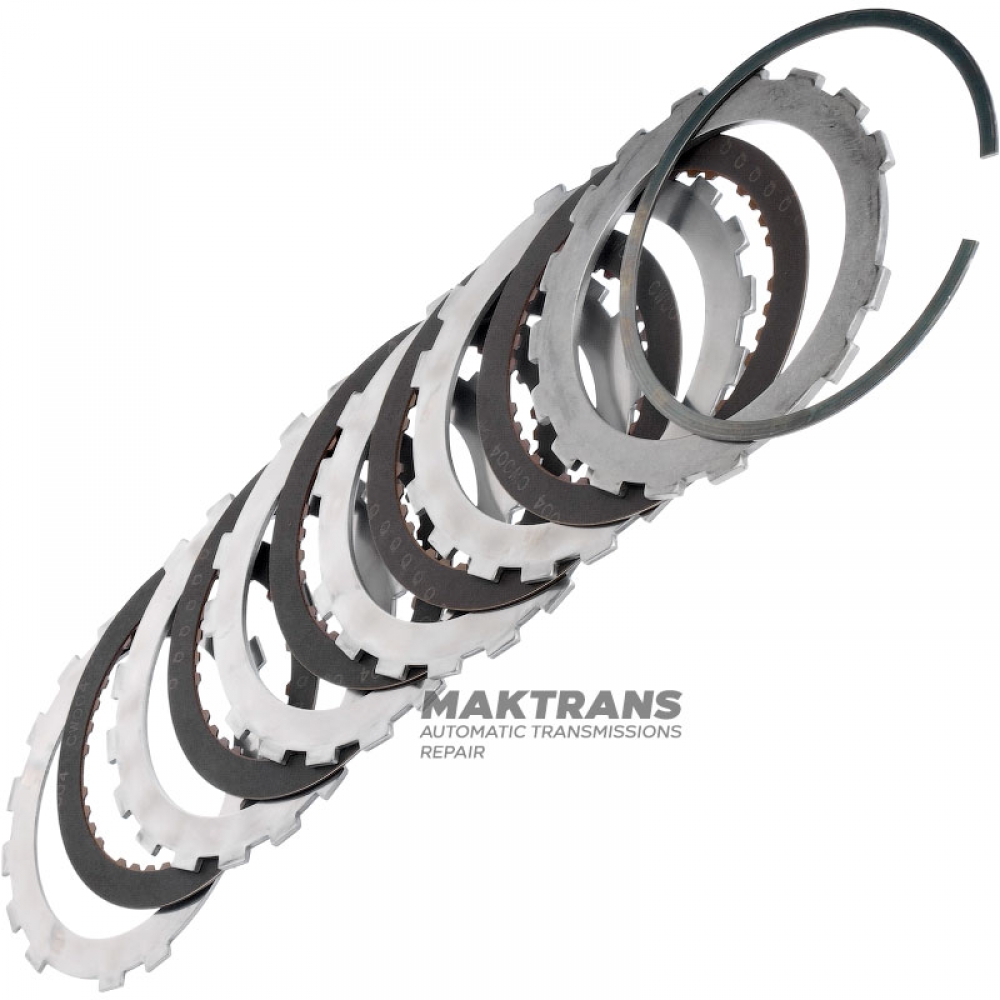

Set of steel and friction discs 2ND Brake (Intermediare Clutch) Aisin Warner 30-40LE, 30-80LE / TOYOTA A343 - 5 friction discs (total thickness of the set 25.60 mm, support disc 3.30 mm)

• The total thickness of the set is 25.60 mm;

Steel disk:

• Thickness - 3.30 mm;
• Inner diameter - 105.70 mm;
• Number of teeth - 16 pcs.;
• Number of discs in the set - 1 pc.;

Steel disk:

• Thickness - 2.45 mm;
• Inner diameter - 105.70 mm;
• Number of teeth - 16 pcs.;
• Number of discs in the set - 4 pcs.;

Friction disc:

• Thickness - 1.90 mm;
• Outer diameter - 131.25 mm;
• Number of teeth - 32/40 pcs.;
• Number of discs in the set - 5 pcs.;

Steel disk (lower):

• Thickness - 1.80 mm;
• Inner diameter - 105.70 mm;
• Number of teeth - 16 pcs.;
• Number of disks in the set - 1 pc.;

Tags: 9052199032, 3567630020, 3566730080, 3564730030, 3564730020
