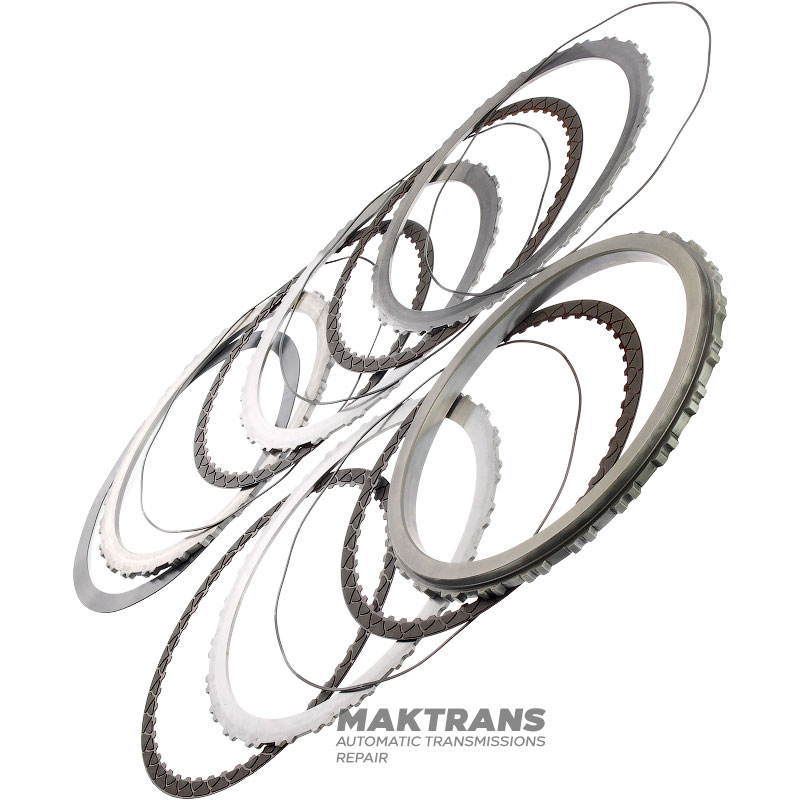

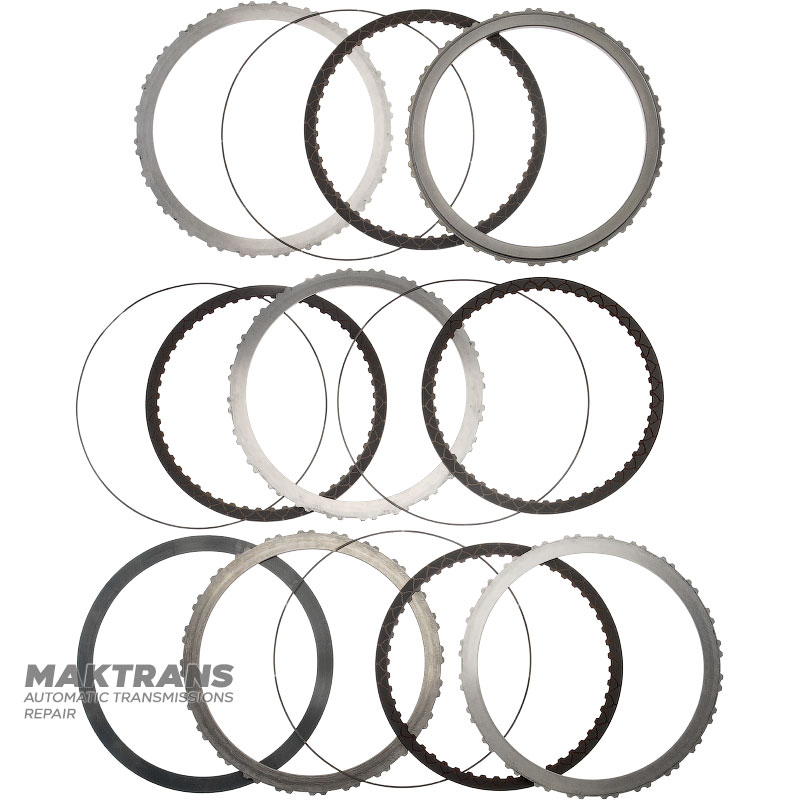

Set of steel and friction discs A Brake FORD 10R140 LC3Z-7F219-A, LC3Z-7F220-A - 4 friction discs (total thickness of the set 25 mm)

• The total thickness of the set is 25 mm;

Support disk:

• Thickness - 13 mm / 6.15 mm;
• Inner diameter - 216.40 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.75 mm;
• Outer diameter - 238.70 mm;
• Number of teeth - 53 pcs.;
• Number of teeth in the set - 4 pcs.;

Steel disk:

• Thickness - 2.60 mm;
• Inner diameter - 216.80 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 3 pcs.;

Pressure disc:

• Thickness - 4.50 mm;
• Inner diameter - 216.80 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 1 pc.;

Spring ring (installed between steel disks):

• Thickness - 1 mm;
• Outer diameter - 246.65 mm;
• Inner diameter - 243.90 mm;
• Number of discs in the set - 4 pcs.;

Spring disc (wave):

• Thickness - 0.95 mm;
• Inner diameter - 216.35 mm;
• Outer diameter - 248.80 mm;
• Number of discs in the set - 1 pc.;
