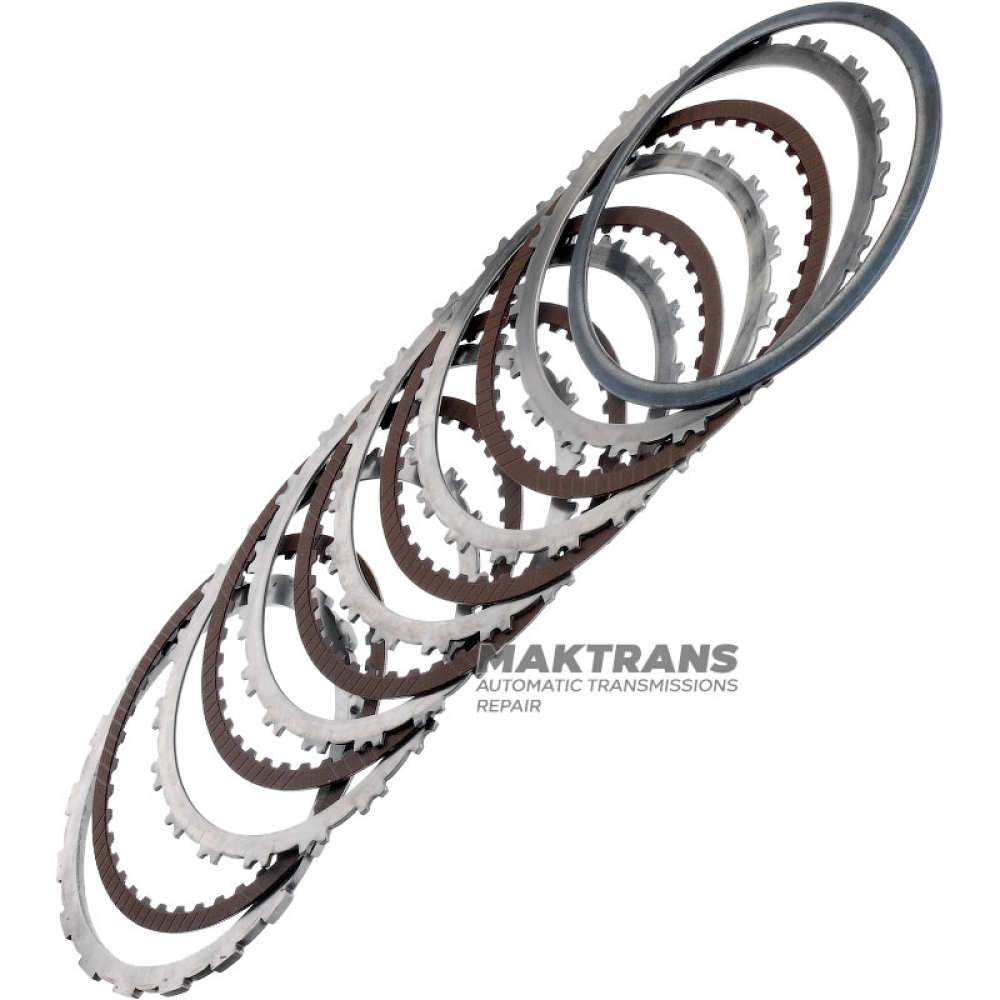

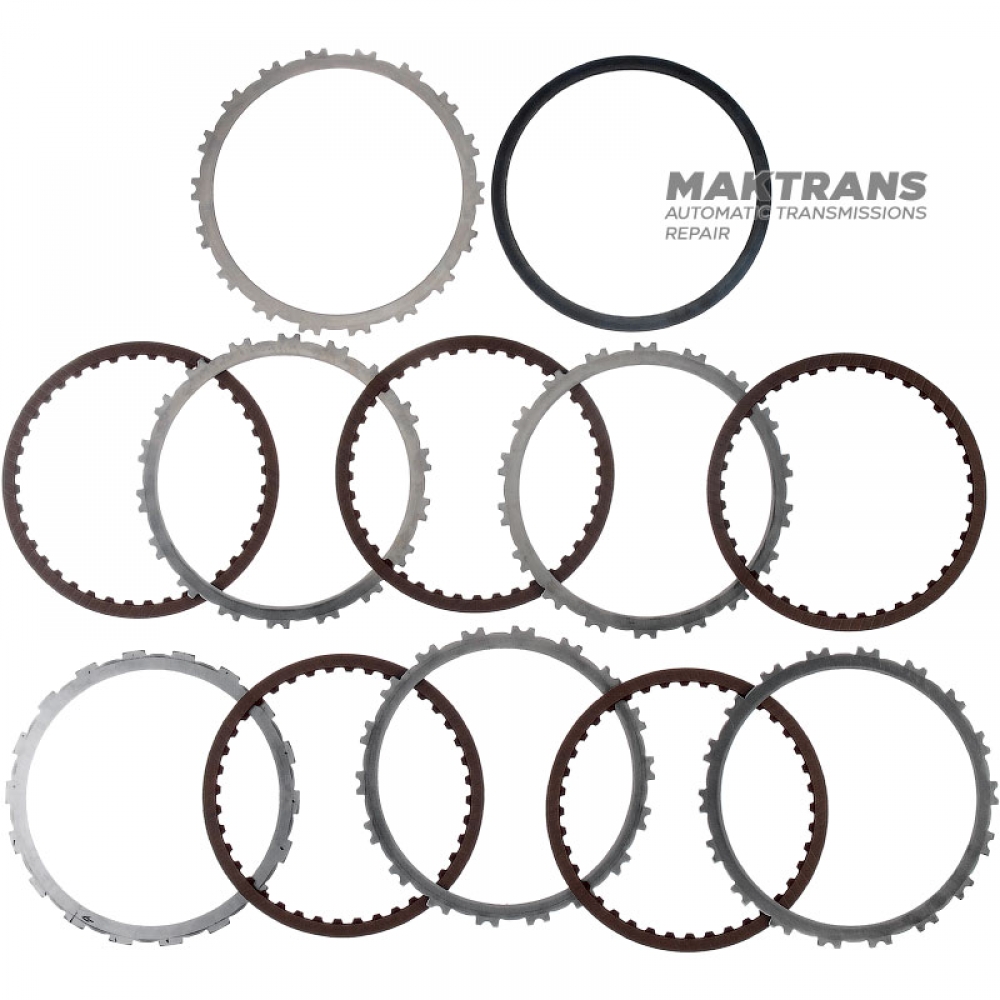

Set of steel and friction discs B1 Reverse Brake RE5R05A 31662-95X00 - 5 friction discs (40 teeth per disc), total thickness of the set 23.85 mm

• The total thickness of the set is 23.85 mm;

Support disk:

• Thickness - 4.55 mm;
• Inner diameter - 150.55 mm;
• Number of teeth - 18 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.75 mm;
• Outer diameter - 167.45 mm;
• Number of teeth - 40 pcs.;
• Number of discs in the set - 5 pcs.;

Steel disk:

• Thickness - 2 mm;
• Inner diameter - 150.55 mm;
• Number of teeth - 18 pcs.;
• Number of discs in the set - 5 pcs.;

Spring disc:

• Thickness - 2.05 mm;
• Outer diameter - 168.40 mm;
• Inner diameter - 150.55 mm;
• Without teeth;
