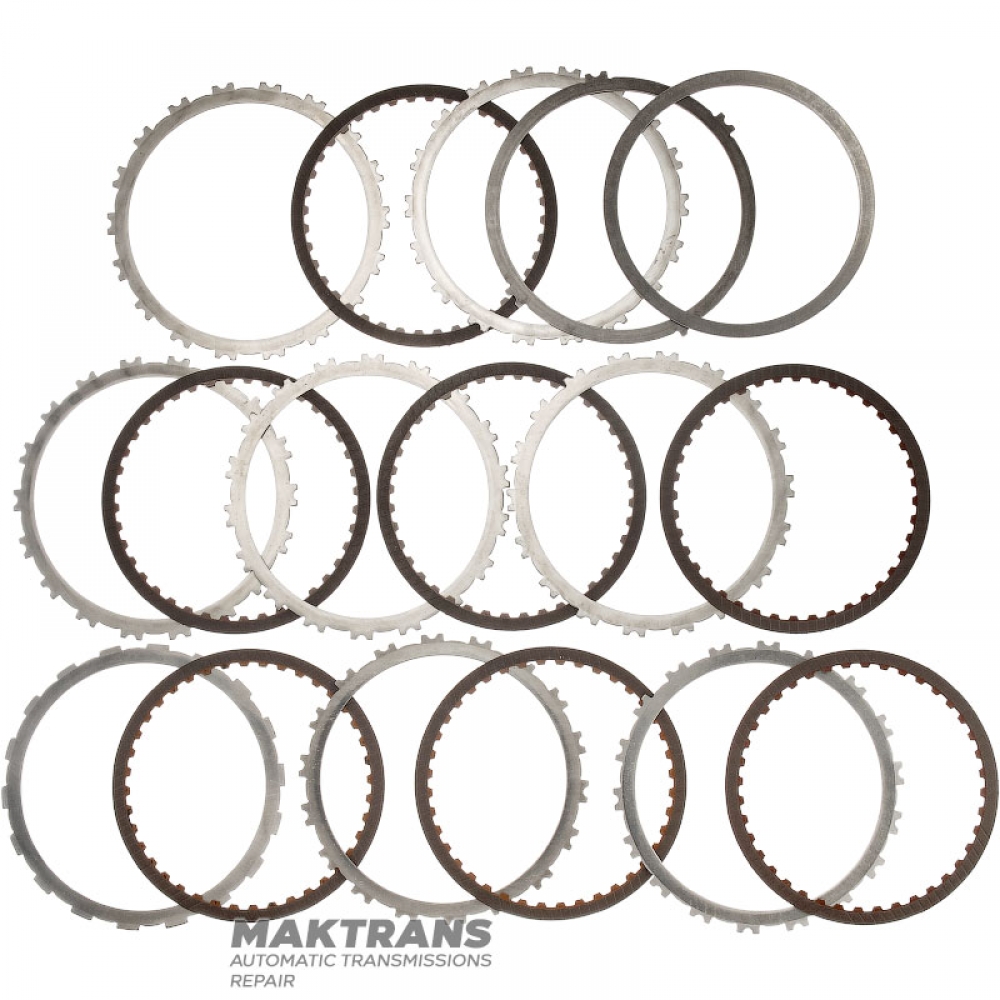

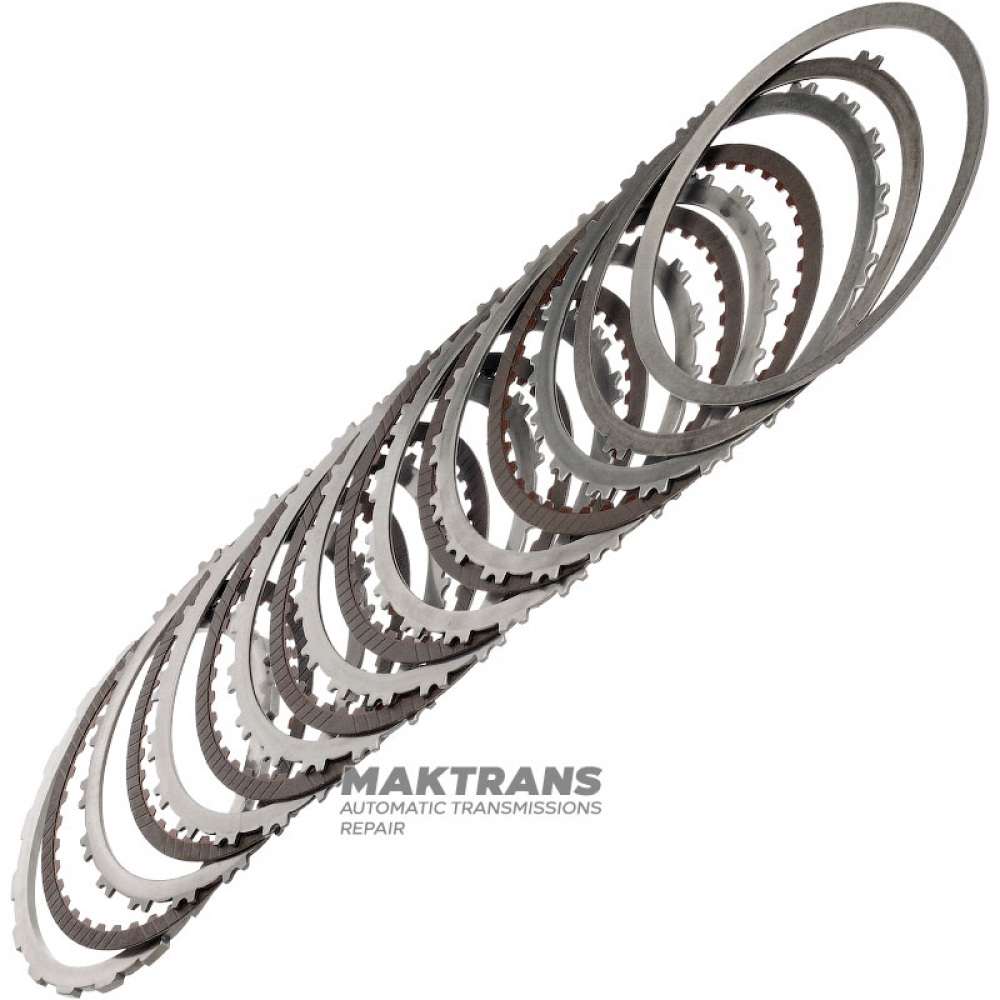

Set of steel and friction discs B1 Reverse Brake RE5R05A 3166295X00 - 7 friction discs (40 teeth), total thickness of the set 31.60 mm, thickness of the steel disc 2 mm

• The total thickness of the set is 31.60 mm;

Support disk:

• Thickness - 4.40 mm;
• Inner diameter - 150.65 mm;
• Number of teeth - 18 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.65 mm;
• Outer diameter - 167.45 mm;
• Number of teeth - 40 pcs.;
• Number of discs in the set - 7 pcs.;

Steel disk:

• Thickness - 2 mm;
• Inner diameter - 150.65 mm;
• Number of teeth - 18 pcs.;
• Number of discs in the set - 7 pcs.;

Spring disc N1:

• Thickness - 1.20 mm;
• Inner diameter - 150.90 mm;
• Number of teeth - 4 mm;
• Number of discs in the set - 1 pc.;

Spring disc N2:

• Thickness - 2.10 mm;
• Inner diameter - 150.80 mm;
• Outer diameter - 169.75 mm;
• Number of discs in the set - 1 pc.;
