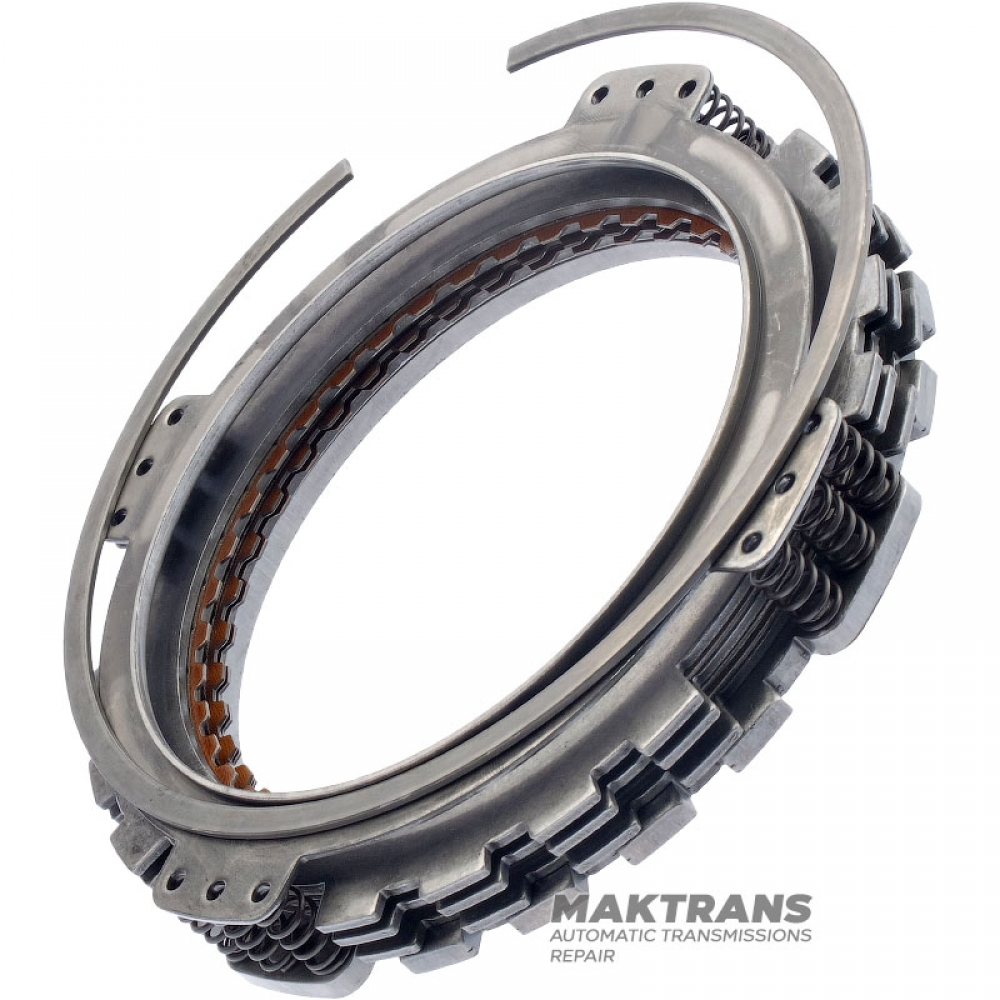

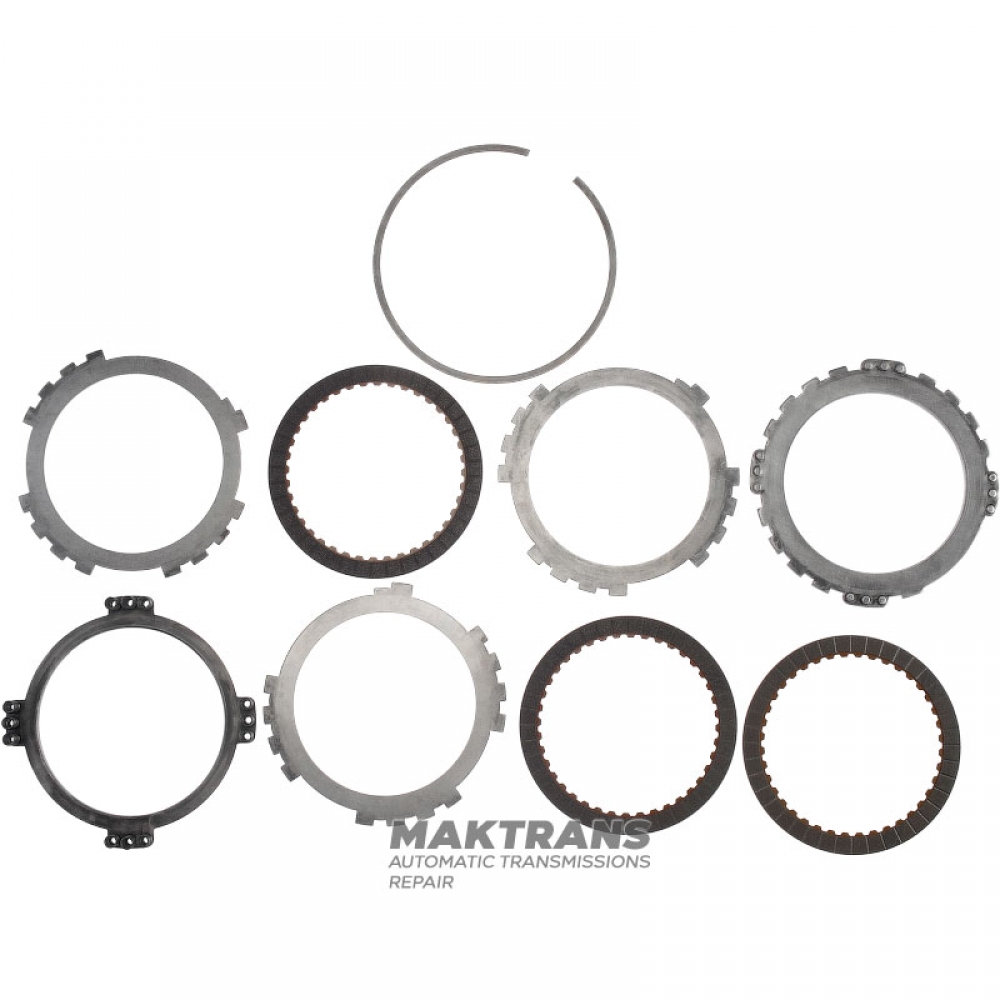

Set of steel and friction discs B2 / Overdrive Brake TOYOTA A750 E/F - 3 friction discs, total thickness of the set 15.35 mm

• The total thickness of the set is 15.35 mm;

Support disk:

• Thickness - 4.50 mm;
• Inner diameter - 115.20 mm;
• Number of teeth - 13 / +4 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.60 mm;
• Outer diameter - 138.10 mm;
• Number of teeth - 40 pcs.;
• Number of discs in the set - 3 pcs.;

Steel disk:

• Thickness - 2 mm;
• Inner diameter - 115.30 mm;
• Number of teeth - 13 pcs.;
• Number of discs in the set - 3 pcs.;

Return spring block:

• Overall height 17.15 mm;
• Inner diameter - 117.85 mm;

Tags: 356820C040, 356820C010, 3568260010, 3568250010, 356920C010, 3569260010, 3567860010
