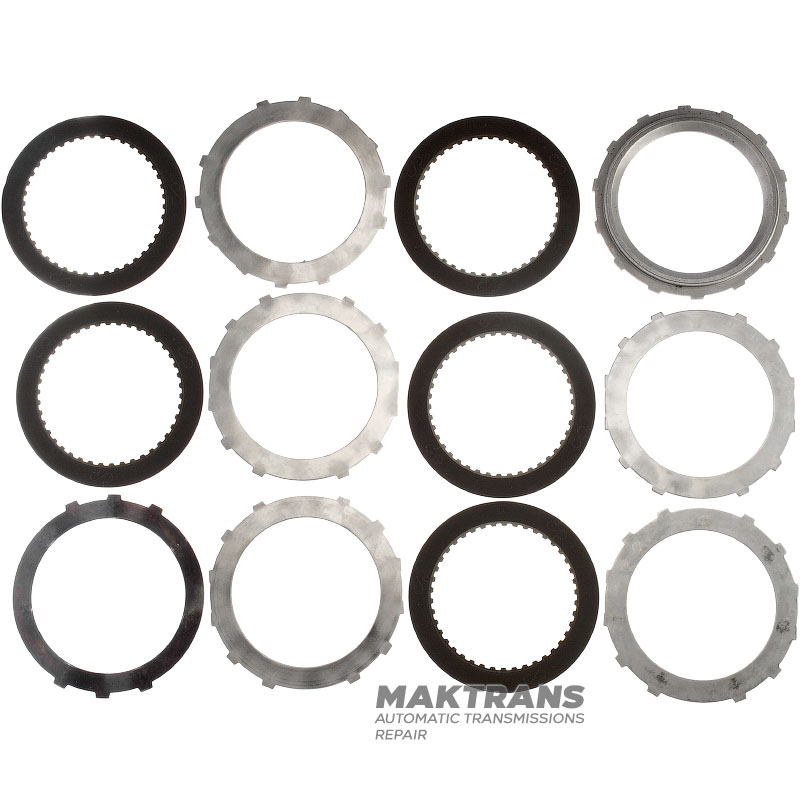

Set of steel and friction discs FORWARD Clutch GM 4L80E, 4L85E — 24202646, 8675557 (5 friction discs)

• The total thickness of the set is 27.05 mm;

Support disk:

• Thickness - 4.55 mm / 10.15 mm;
• Inner diameter - 116.35 mm;
• Number of teeth - 14 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 2.10 mm;
• Outer diameter - 149.70 mm;
• Number of teeth - 42 pcs.;
• Number of discs in the set - 5 pcs.;

Steel disk:

• Thickness - 2.40 mm;
• Inner diameter - 116 mm;
• Number of teeth - 12 pcs.;
• Number of discs in the set - 5 pcs.;

Spring disc:

• Thickness - 1.05 mm;
• Inner diameter - 120.25 mm;
• Number of teeth - 6 pcs.;
• Number of discs in the set - 1 pc.;

Tags: 29530330, 6836518, 8625197, 8625797
