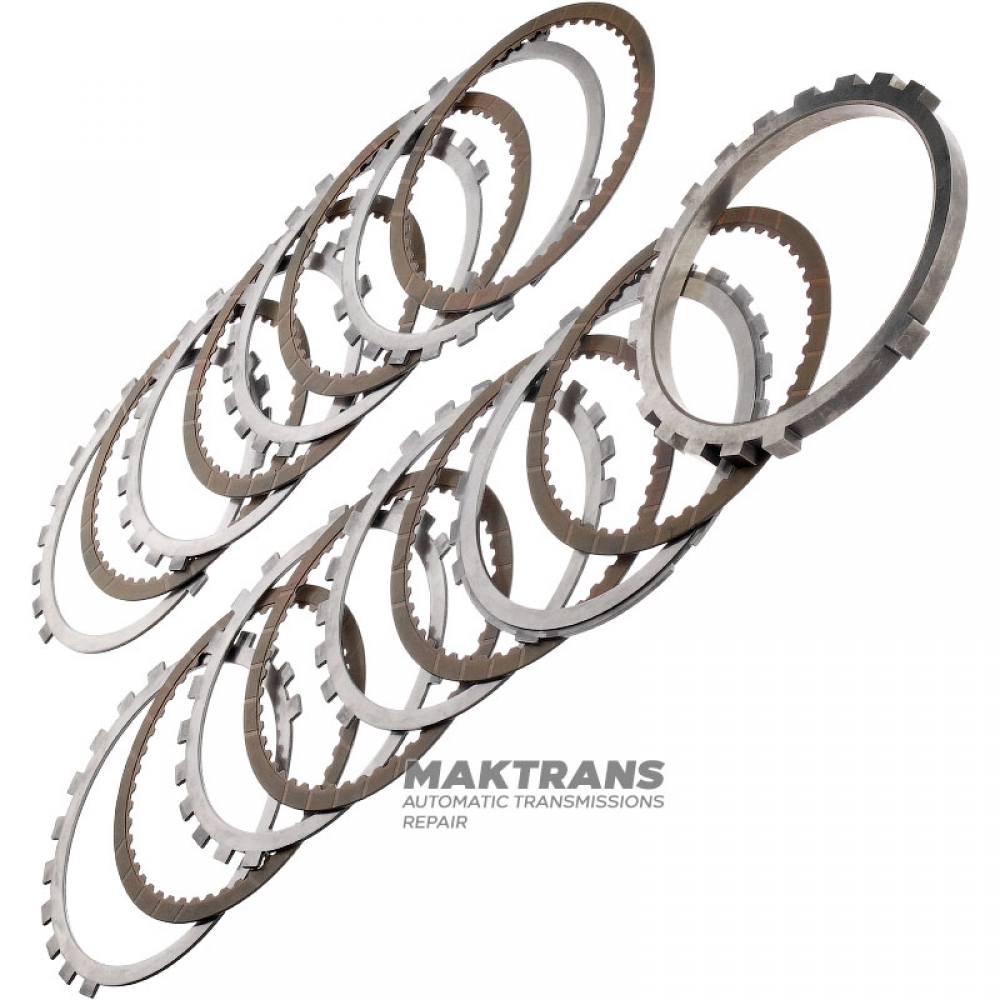

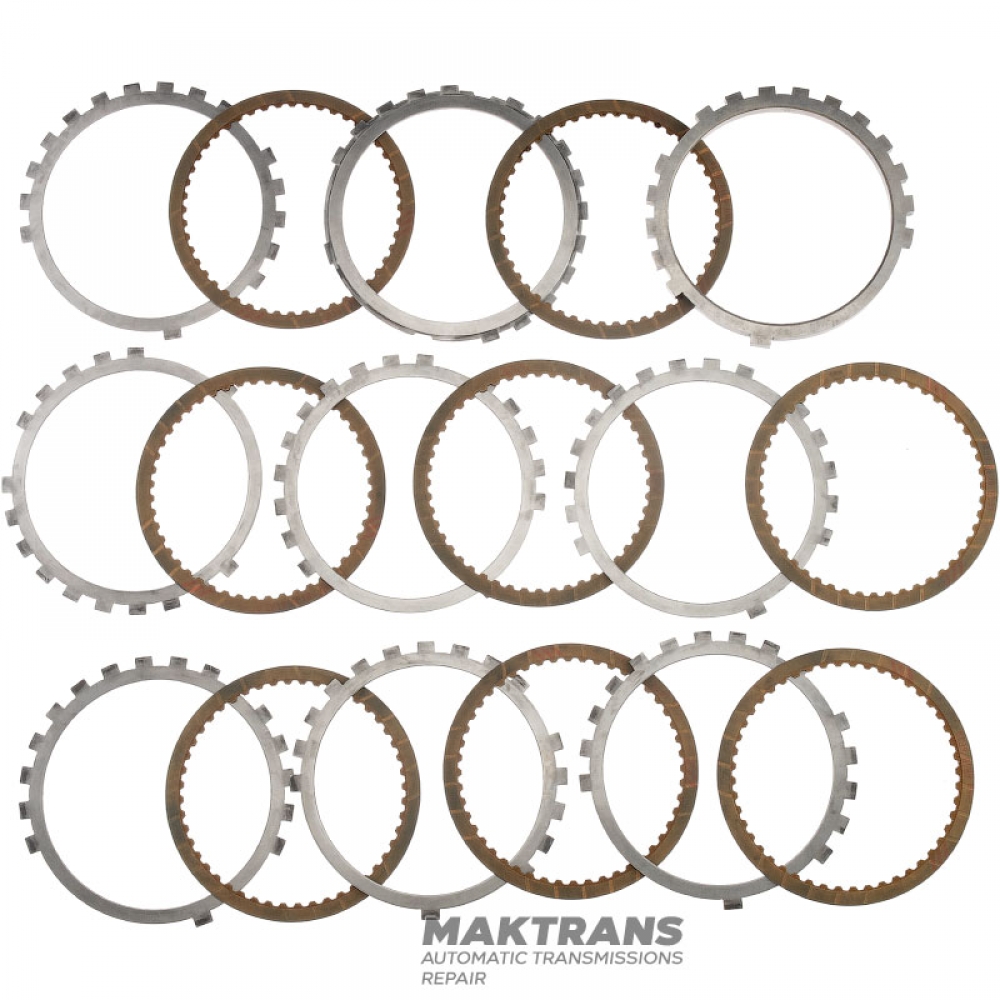

Set of steel and friction discs Low / Reverse Brake A760E, A760F - 8 friction discs (total thickness of the set 36.75 mm)

• The total thickness of the set is 36.75 mm;

Support disk:

• Thickness - 9 mm;
• Inner diameter - 125 mm;
• Number of teeth - 16 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.55 mm;
• Outer diameter - 140 mm;
• Number of teeth - 48 mm;
• Number of discs in the set - 8 pcs.;

Steel disk :

• Thickness - 2.45 mm;
• Inner diameter - 125.05 mm;
• Number of teeth - 16 pcs.;
• Number of discs in the set - 1 pc.;

Steel disk :

• Thickness - 1.80 mm;
• Inner diameter - 125 mm;
• Number of teeth - 16 pcs.;
• Number of discs in the set - 7 pcs.;

Tags: 356840C040, 356840C010, 3568460030, 3568460010, 3568450010, 3568404010, 356940C010, 3569460011, 3569460010
