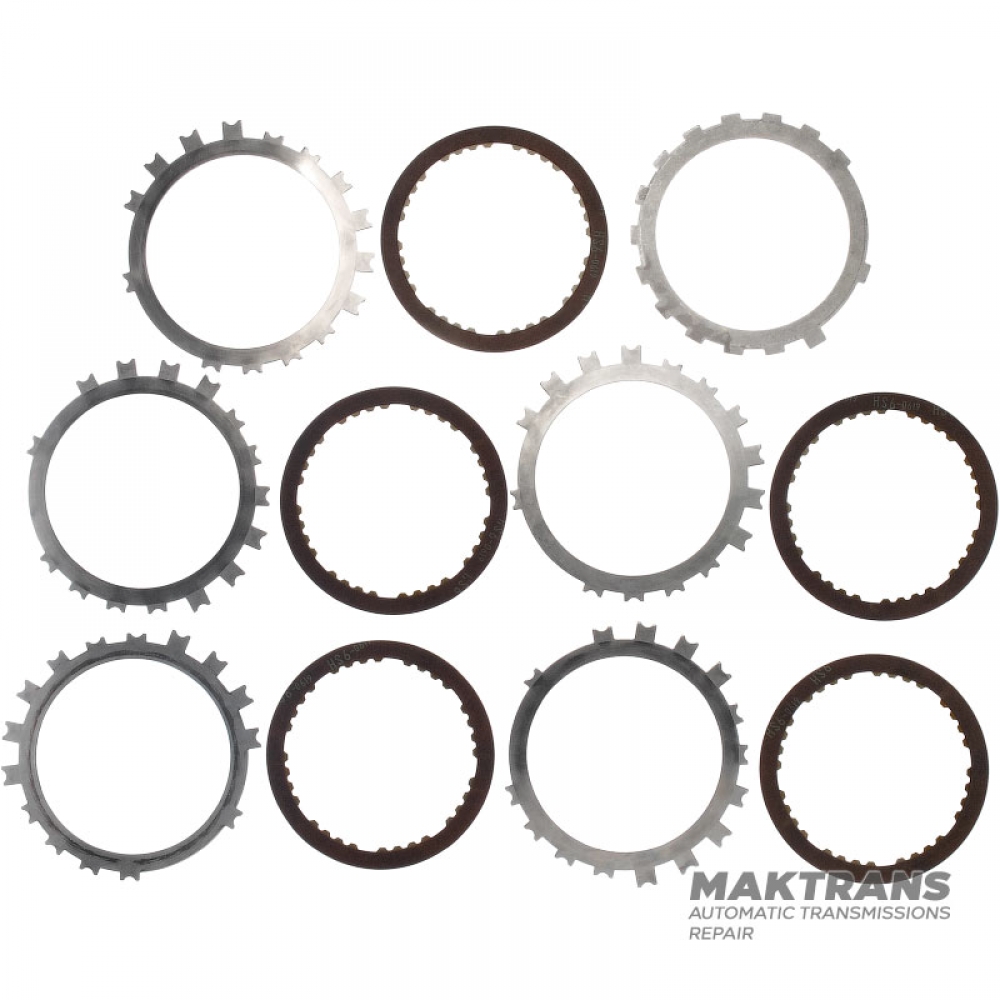

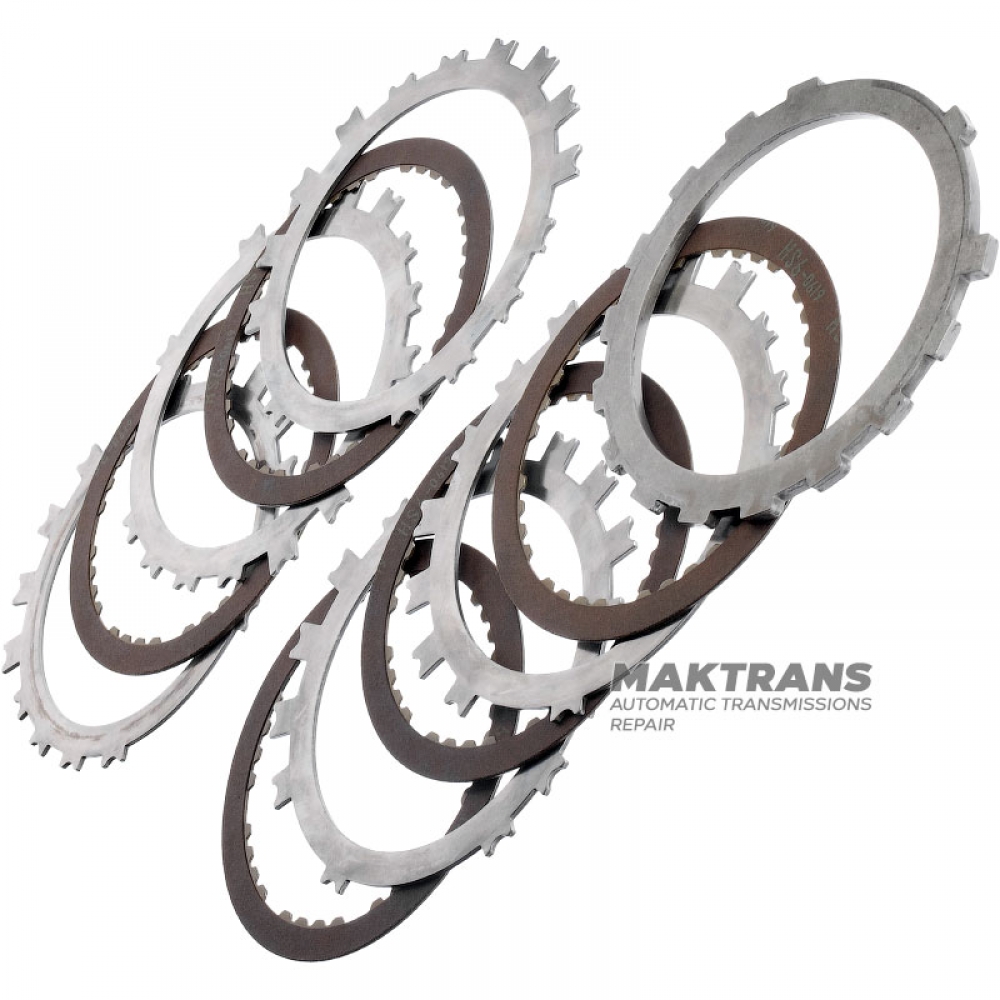

Set of steel and friction discs LOW-REVERSE BRAKE Aisin Warner 30-40LE, 30-80LE / TOYOTA A340 A343 - 5 friction discs (total thickness of the set 22.60 mm, thickness of the support disc 4.60 mm)

• The total thickness of the set is 25.75 mm;

Support disk:

• Thickness - 4.60 mm;
• Inner diameter - 109.30 mm;
• Number of teeth - 15 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.75 mm;
• Outer diameter - 129.30 mm;
• Number of teeth - 32/40 pcs.;
• Number of discs in the set - 5 pcs.;

Steel disk:

• Thickness - 1.80 mm;
• Inner diameter - 109.50 mm;
• Number of teeth - 15 pcs.;
• Number of discs in the set - 5 pcs.;

Tags: 3564830031, 3567730130, 3567730110, 3567650060, 3567650050, 3567650040, 3567650030, 3567650020, 3567650010
