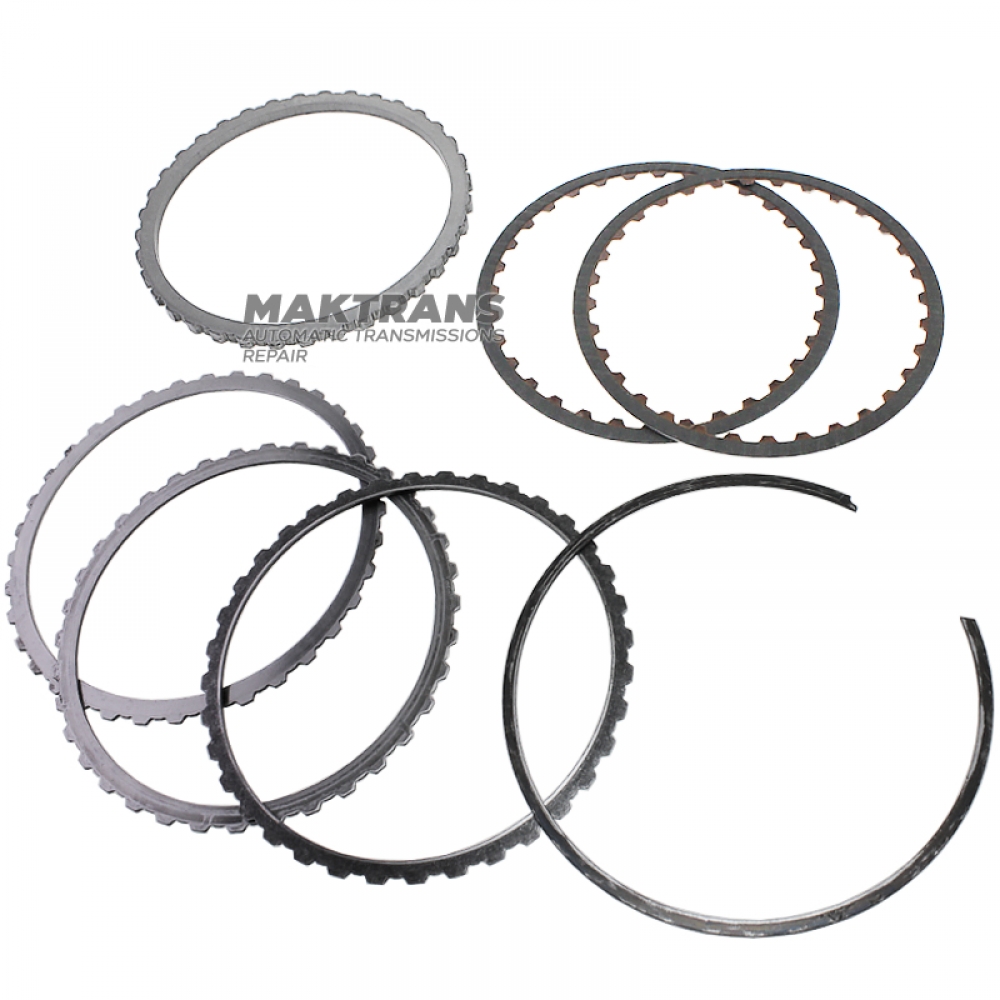

Set of steel and friction discs REVERSE Clutch FNR5 - 2 friction discs

Reverse Clutch Steel and Friction Disc Kit:

• Total thickness of the disc set (without spring disc) - 12.25 mm;

Support disk:

• Thickness - 5.80 mm;
• Inner diameter - 127.65 mm;
• Number of teeth - 36 pcs.;
• Number of discs in the set - 1 pc.;

Steel disk:

• Thickness - 1.60 mm;
• Inner diameter - 127.45 mm;
• Number of teeth - 36 pcs.;
• Number of discs in the set - 2 pcs.;

Friction disc:

• Thickness - 1.60 mm;
• Outer diameter - 140 mm;
• Number of teeth - 32 pcs.;
• Number of discs in the set - 2 pcs.;

Spring disc:

• Thickness - 2.10 mm;
• Inner diameter - 129.70 mm;
• Number of teeth - 36 pcs.;
• Number of discs in the set - 1 pc.;
