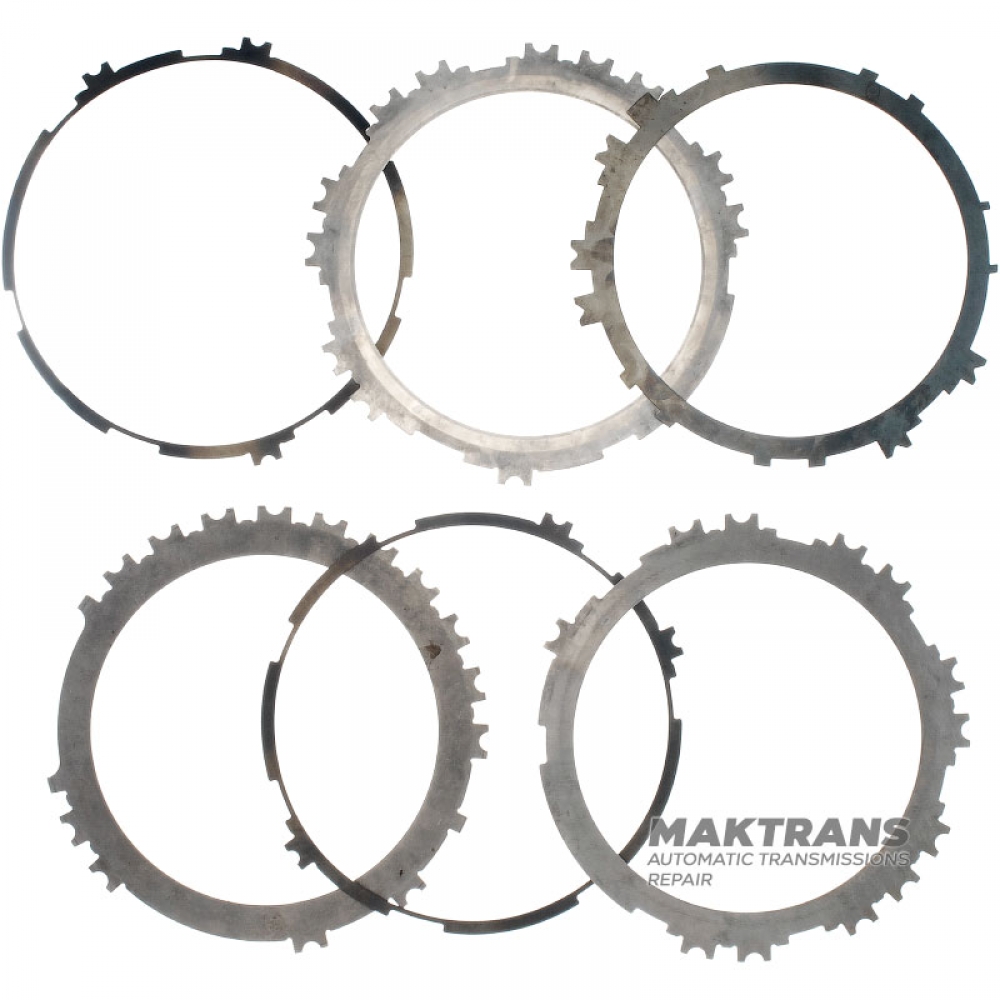

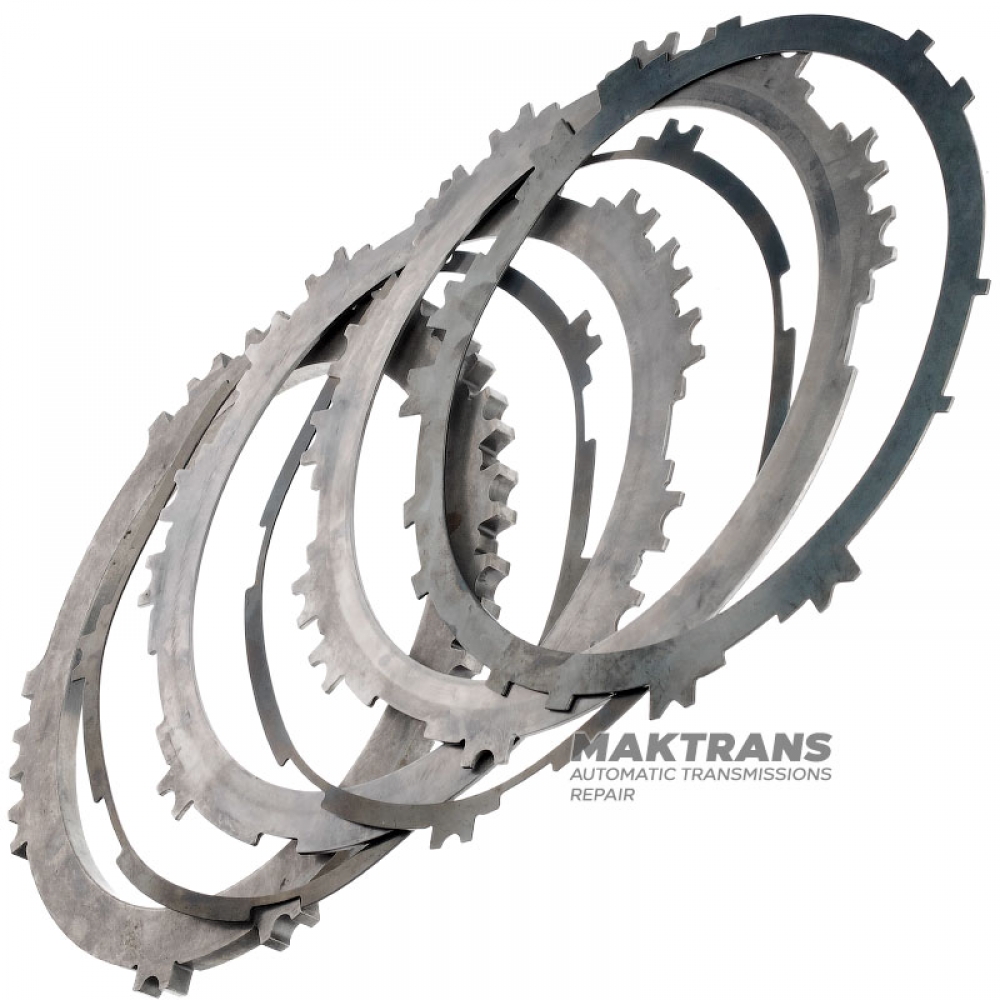

Set of steel wheels 1-2-3-4 Clutch FORD 6F15 - with spring discs (2 pcs.) FD8Z-7B070-A 9L8Z-7B442-A FD8Z-7B066-B 9L8Z-7B070-F

Support disk:

• Thickness - 8 mm;
• Inner diameter - 188.60 mm;
• Number of teeth - 17 pcs. (31 pcs.);
• Number of discs in the set - 1 pc.;

Spring wave discs (installed on the outer side of the friction disc, between the steel discs):

• Thickness - 0.90 mm;
• Inner diameter - 212.90 mm;
• Number of teeth - 3 pcs. (double);
• Number of discs in the set - 2 pcs.;

Steel disk:

• Thickness - 1.75 mm;
• Inner diameter - 188.75 mm;
• Number of teeth - 12 pcs. (double);
• Number of discs in the set - 2 pcs.;

Spring disc:

• Thickness - 0.85 mm;
• Inner diameter - 191.10 mm;
• Number of teeth - 15 pcs. (19 pcs.);
• Number of discs in the set - 1 pc.;
