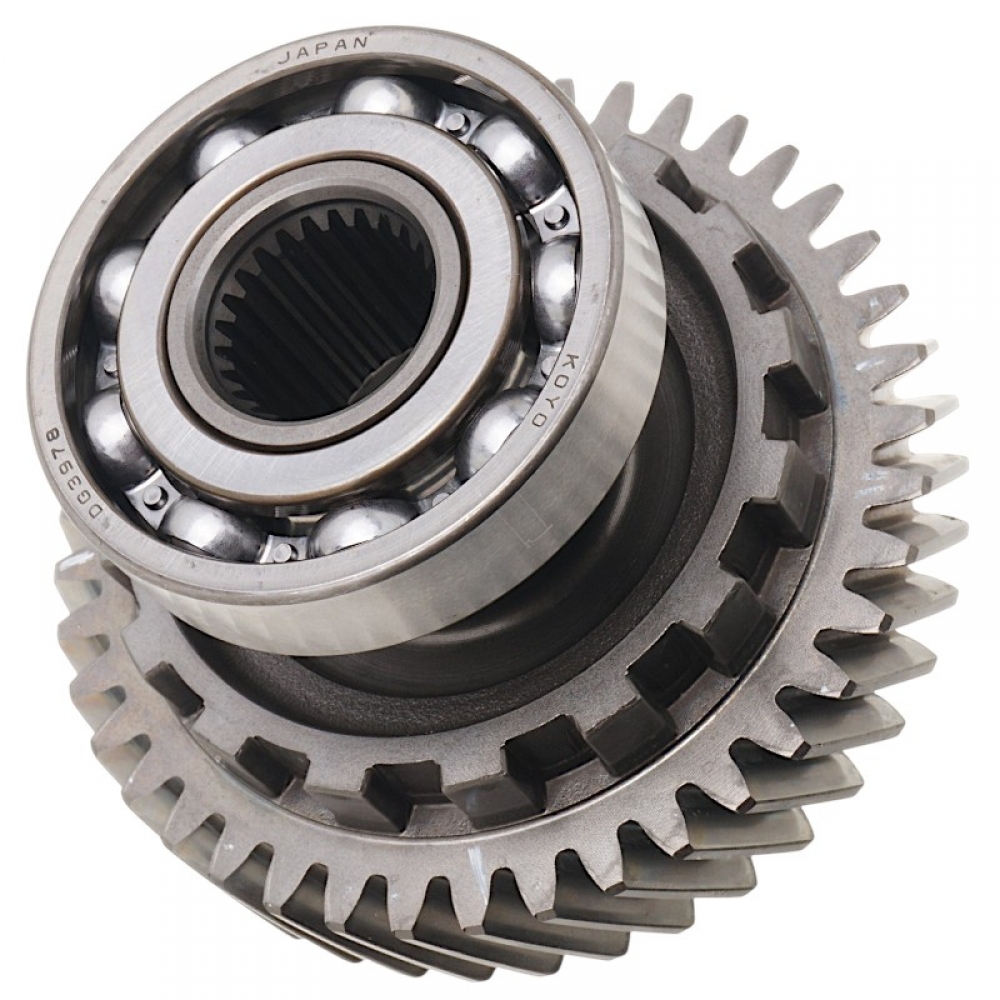

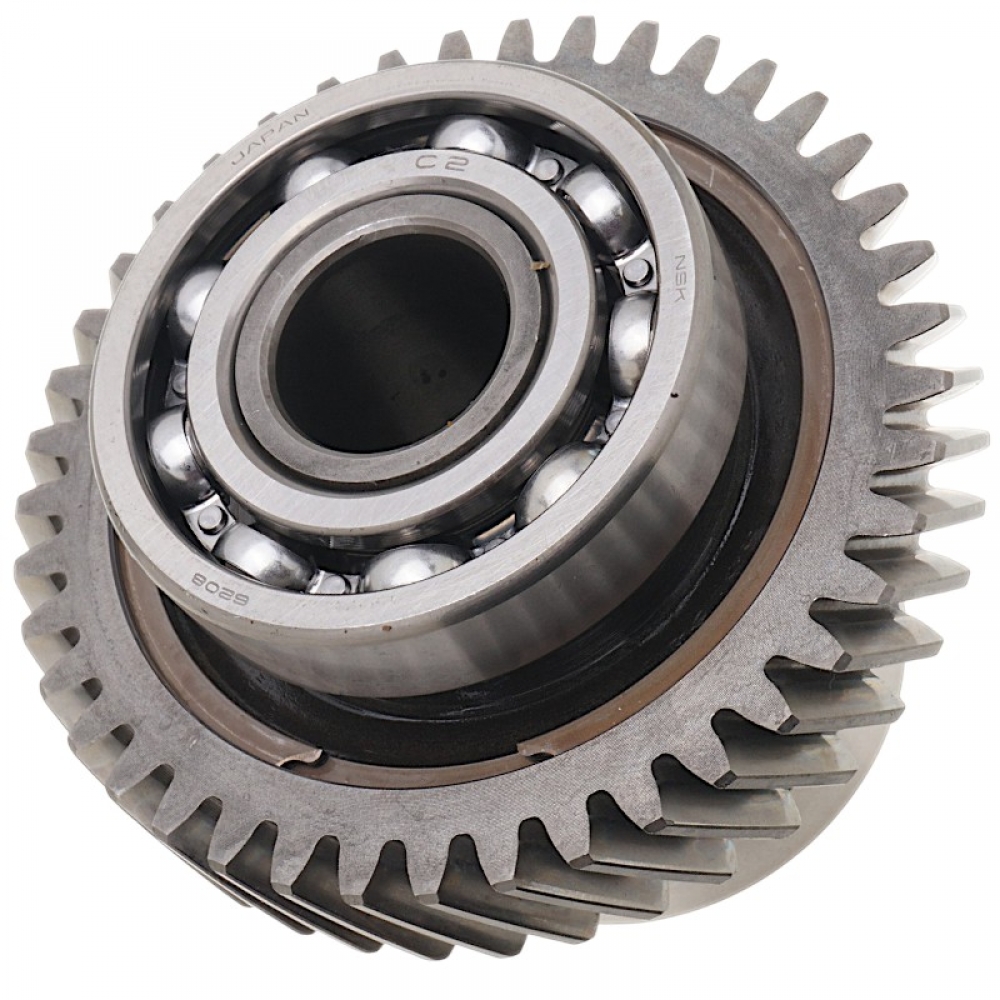

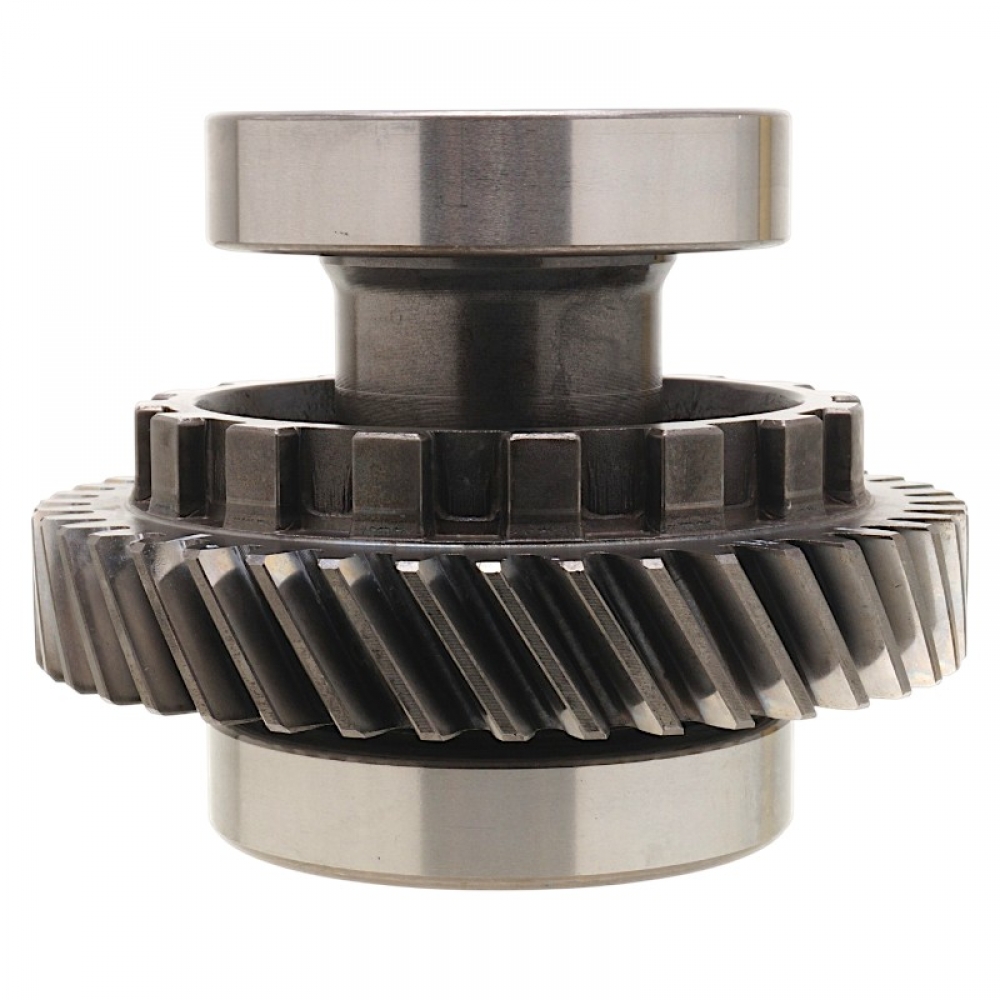

5EAT 31448AA330 differential drive intermediate gear 806239010 806240060 with 41/16 gears

5EAT 31448AA330 differential drive intermediate gear 806239010 806240060 with 41/16 gears

• Total height - 96.50 mm.
• The diameter of the splined inner part is 30 mm.

Bearings:

• The outer diameter of the bearings is 78 mm(DG3978)., 80 mm(6208).
• Bearing thickness - 18 mm.

Idler gear :

• The number of gear teeth is 41 pcs.
• The diameter of the gear is 125.35 mm.
• The thickness of the gear is 21. mm.

Parking gear:

• The number of teeths of the parking gear is 16 pcs.
• The diameter of the gear is 97.95 mm.

Splined inner part:

• The number of slots on the inside is 25 pcs.
• The internal diameter of the splines is 26.50 mm.
