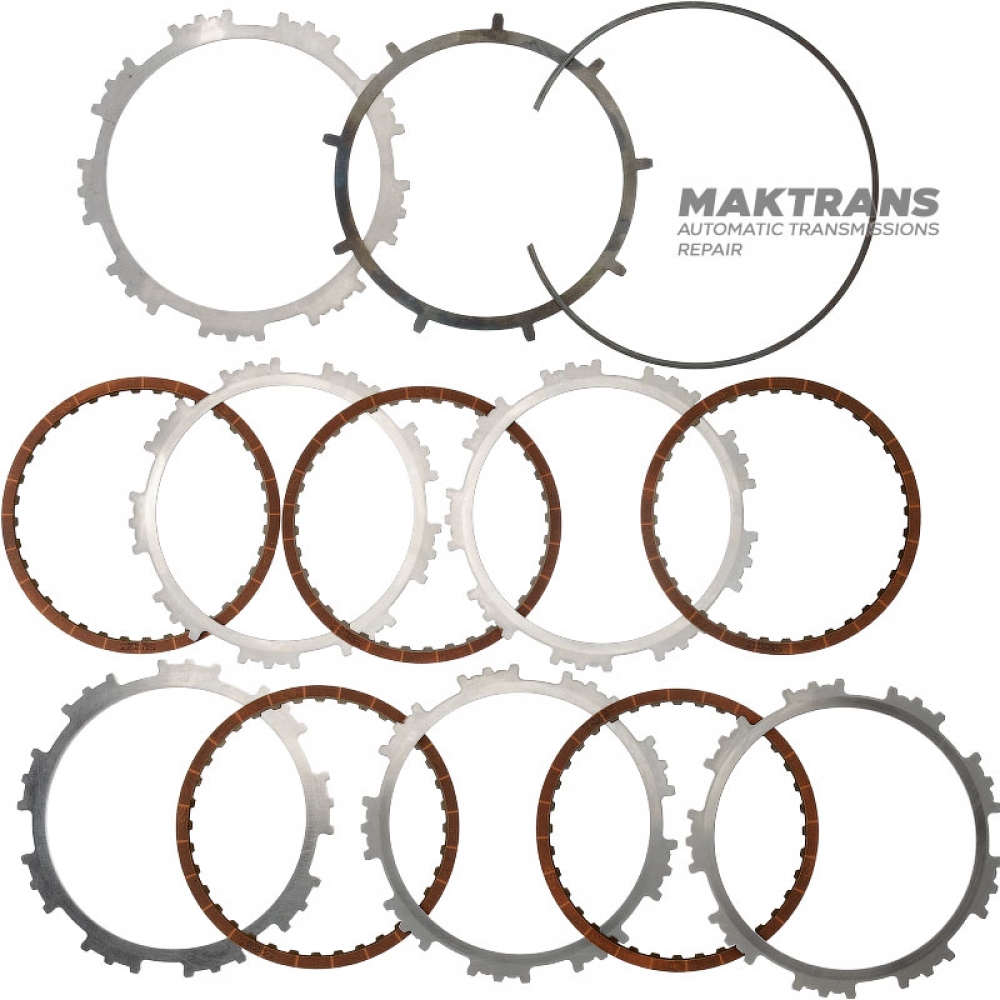

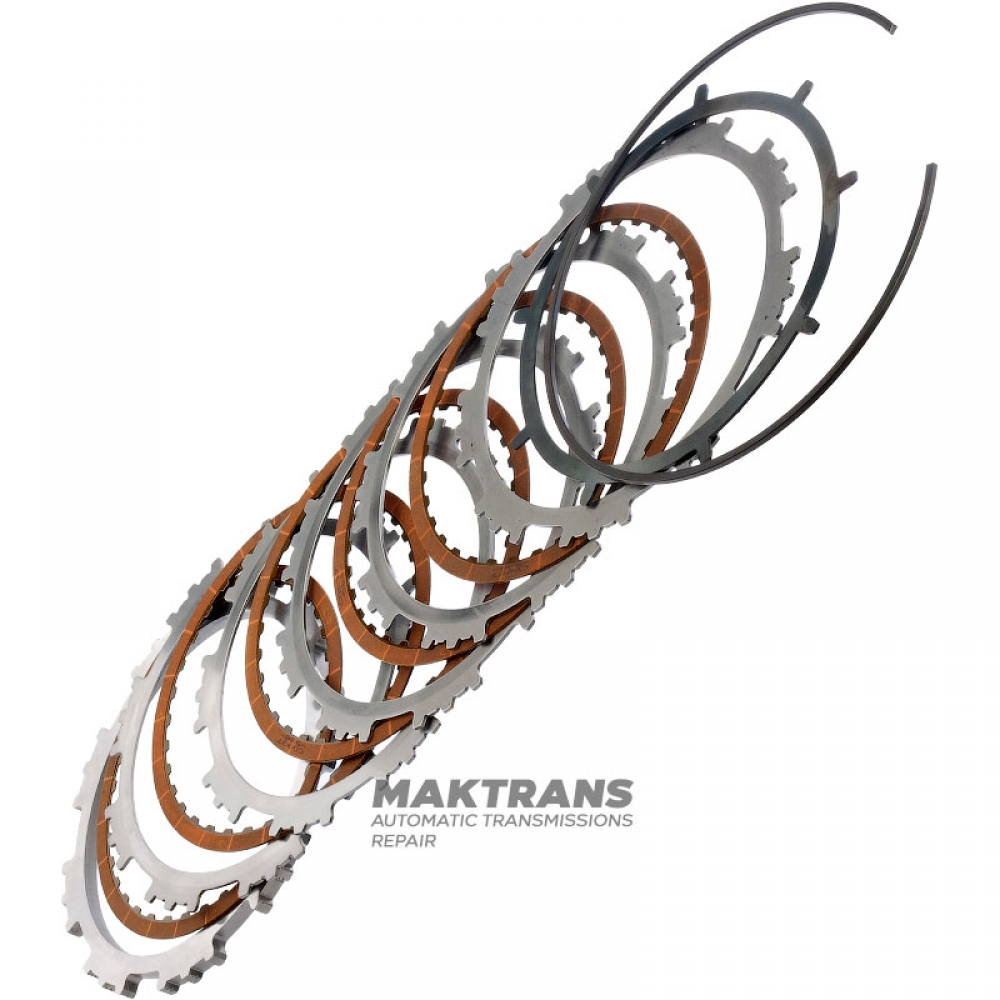

Steel and friction disc set 1-2-3-4 Clutch GM 6L45 6L50 24232652, 24233534 - 5 friction discs (total thickness of the set 24.10 mm)

• Total thickness of the set - 24.10 mm;

Support disk:

• Thickness - 7.12 mm;
• Inner diameter - 156.40 mm;
• Number of teeth - 27 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.60 mm;
• Outer diameter - 170.05 mm;
• Number of teeth - 36 pcs.;
• Number of teeth in the set - 5 pcs.;

Steel disk:

• Thickness - 1.77 mm;
• Inner diameter - 156.05 mm;
• Number of teeth - 36 pcs.;
• Number of discs in the set - 5 pcs.;

Spring disc:

• Thickness - 1.72 mm;
• Inner diameter - 156.20 mm;
• Number of teeth - 9 pcs.;
• Number of discs in the set - 1 pc.;
