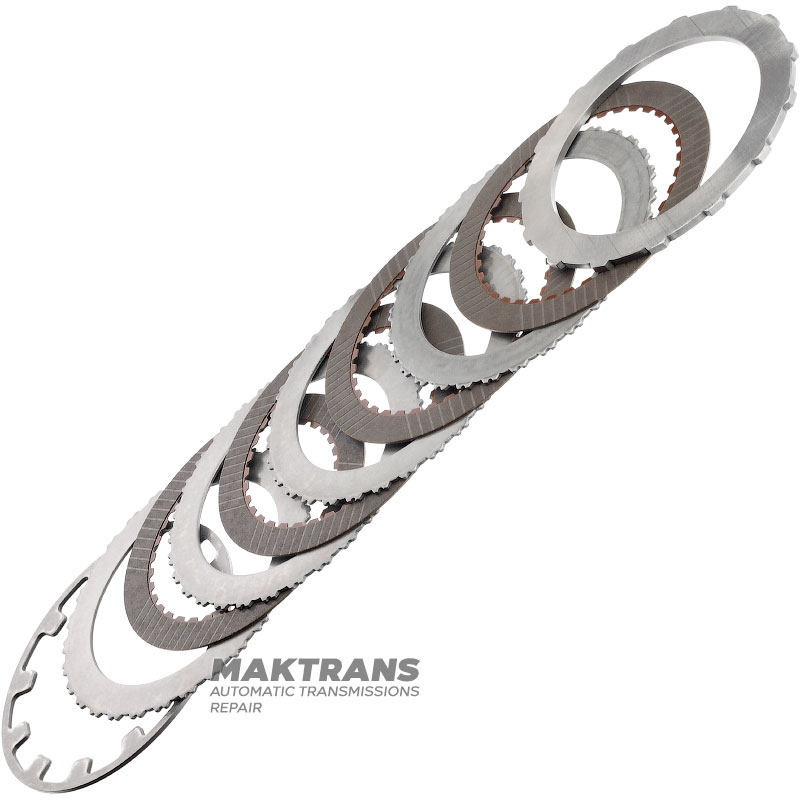

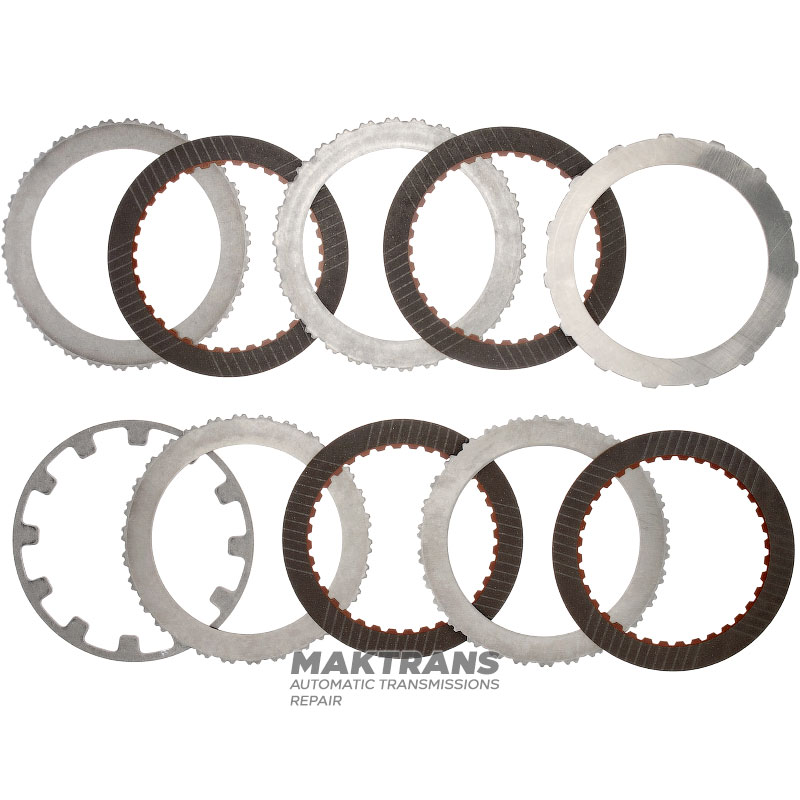

Steel and friction disc set 2-3-4-6 Brake (B3) 316661XJ0A 316623SX0B 316651XJ0C 316671XJ1C - 4 friction discs (36 teeth), total thickness of the set 18.05 mm

• Total thickness of the set - 18.05 mm;

Support disk:

• Thickness - 3.95 mm;
• Inner diameter - 115.70 mm;
• Number of teeth - 15 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.45 mm;
• Outer diameter - 150 mm;
• Number of teeth - 36 pcs.;
• Number of discs in the set - 4 pcs.;

Steel disk:

• Thickness - 2 mm;
• Inner diameter - 115.50 mm;
• Number of teeth - 30 pcs.;
• Number of discs in the set - 4 pcs.;

Pressure disc / spring:

• Outer diameter - 149.10 mm;
• Thickness - 2.65 mm;
• Number of disks in the set - 1 pc.;

Tags: 31662-1XJ0B
