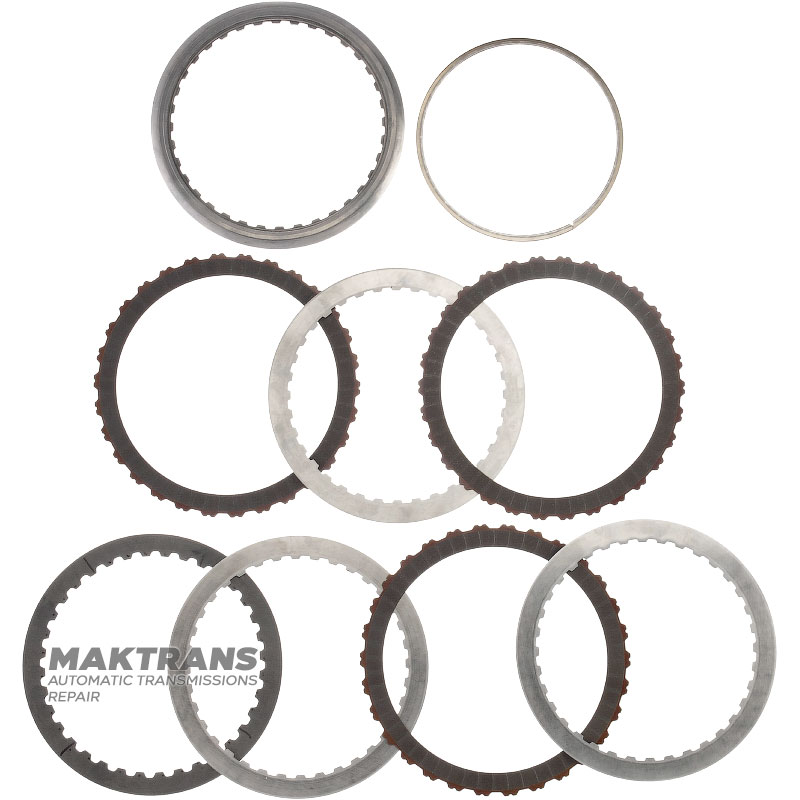

Steel and friction disc set 3-5-R Clutch GM 6T30, 6T31 - 24231692, 24261225, 3 friction discs (total thickness 19.50 mm)

• Total thickness of the set - 19.50 mm;

Support disk:

• Thickness - 6.80 mm;
• Outer diameter - 156.40 mm;
• Number of teeth - 36 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.50 mm;
• Inner diameter - 134.05 mm;
• Number of teeth - 30 pcs.;
• Number of discs in the set - 3 pcs.;

Steel disk:

• Thickness - 2.50 mm;
• Outer diameter - 156.20 mm;
• Number of teeth - 36 pcs.;
• Number of discs in the set - 3 pcs.;

Spring disc (wave):

• Thickness - 1.35 mm;
• Outer diameter - 156 mm;
• Number of teeth - 36 pcs.;
• Number of discs in the set - 1 pc.;
