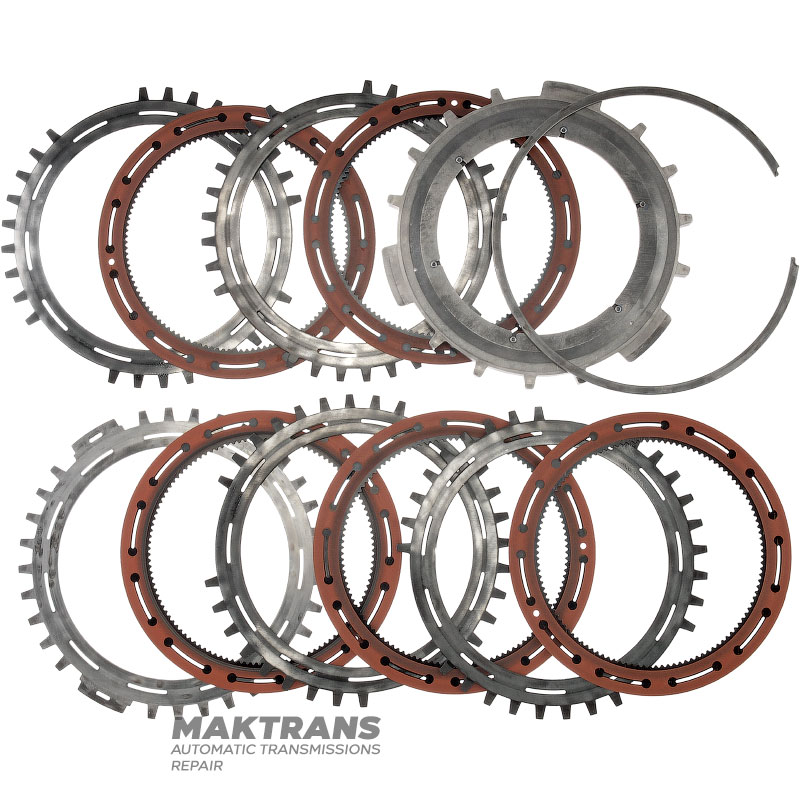

Steel and friction disc set C3 (3-5-R) Clutch ALLISON 1000, 2000, 2400 - 5 friction discs (total thickness of the set 37.15 mm), 29542192, 29546701, 29531049, 29535648

• The total thickness of the set is 37.15 mm;

Support disk:

• Thickness - 15.50 mm / 17.75 mm;
• Inner diameter - 184.20 mm / 158 mm;
• Number of teeth - 15 pcs.;
• Number of discs in the set - 1 pc.;

Steel disk:

• Thickness - 1.70 mm;
• Inner diameter - 180.65 mm;
• Number of teeth - 27 pcs.;
• Number of discs in the set - 4 pcs.;

Friction disc:

• Thickness - 2.15 mm;
• Outer diameter - 220 mm;
• Number of teeth - 117 pcs.;
• Number of discs in the set - 5 pcs.;

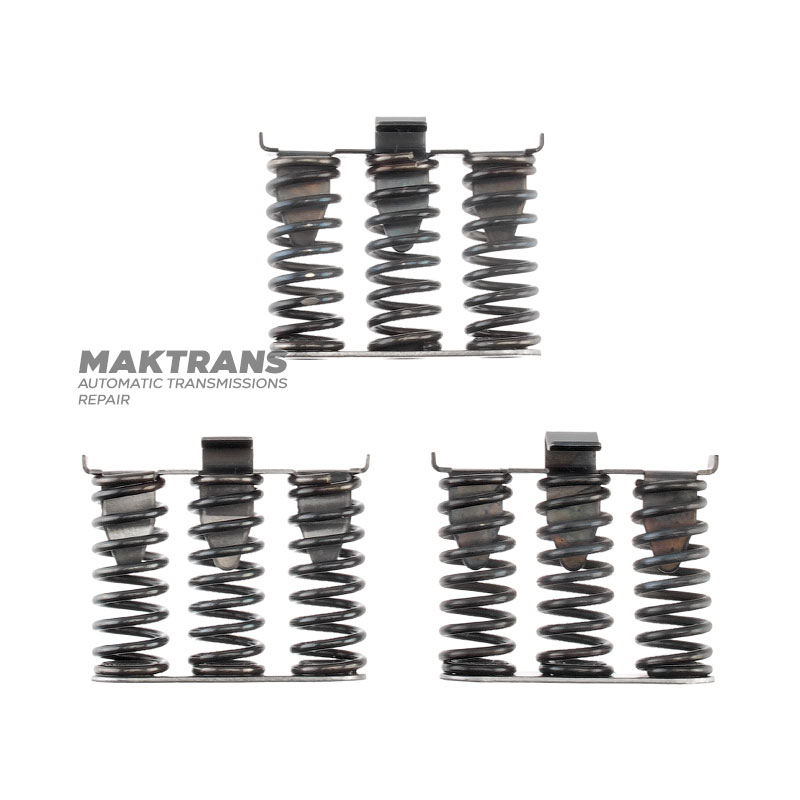

Support disk (with return springs):

• Thickness - 3.25 mm;
• Inner diameter - 180.50 mm;
• Number of teeth - 30 pcs.;
• Number of discs in the set - 1 pc.;
