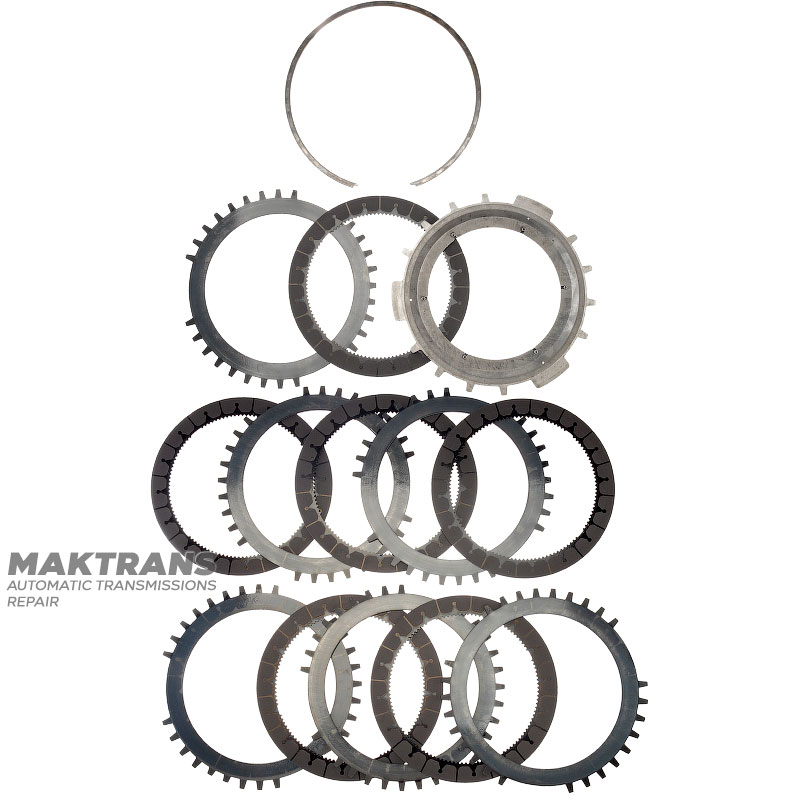

Steel and friction disc set C3 (3-5-R) Clutch ALLISON 1000, 2000, 2400 - 6 friction discs (total thickness of the set 36.60 mm), 29542192, 29546701, 29531049, 29535648

• The total thickness of the set is 36.60 mm;

Support disk:

• Thickness - 11.50 mm / 9.35 mm;
• Inner diameter - 184.20 mm / 158 mm;
• Number of teeth - 15 pcs.;
• Number of discs in the set - 1 pc.;

Steel disk:

• Thickness - 2.50 mm;
• Inner diameter - 180.65 mm;
• Number of teeth - 27 pcs.;
• Number of discs in the set - 7 pcs.;

Friction disc:

• Thickness - 2.20 mm;
• Outer diameter - 220.30 mm;
• Number of teeth - 118 pcs.;
• Number of discs in the set - 6 pcs.;
