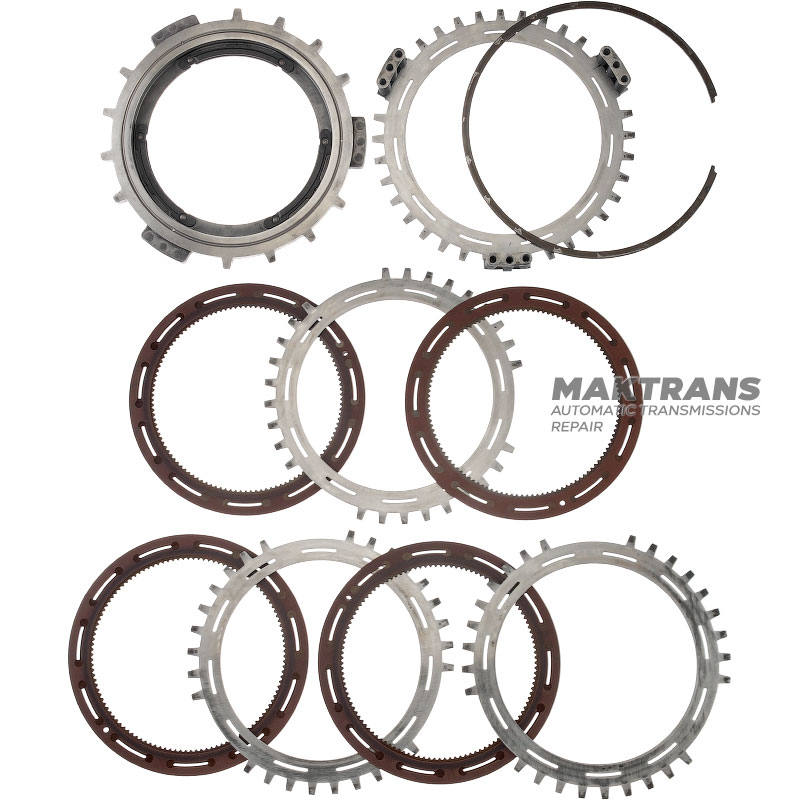

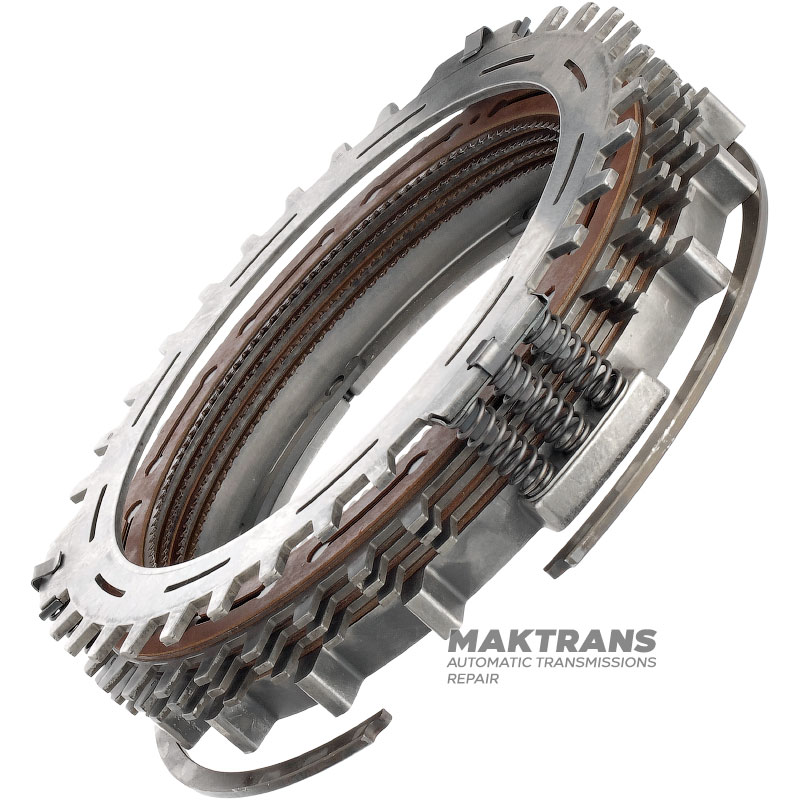

Steel and friction disc set C3 (3-5-R) Clutch ALLISON 1000 - 4 friction discs (total thickness of the set 36.50 mm), 29542192, 29546701, 29531049, 29535648

• Total thickness of the set - 36.50 mm;

Support disk:

• Thickness - 15.50 mm;
• Inner diameter - 184.20 mm / 157.85 mm;
• Number of teeth - 15 pcs.;
• Number of discs in the set - 1 pc.;

Steel disk:

• Thickness - 2.50 mm;
• Inner diameter - 180.50 mm;
• Number of teeth - 27 pcs.;
• Number of discs in the set - 3 pcs.;

Friction disc:

• Thickness - 2.60 mm;
• Outer diameter - 220.30 mm;
• Number of teeth - 117 pcs.;
• Number of discs in the set - 4 pcs.;

Support disk (with return springs):

• Thickness - 3.25 mm;
• Inner diameter - 180.50 mm;
• Number of teeth - 30 pcs.;
• Number of discs in the set - 1 pc.;
