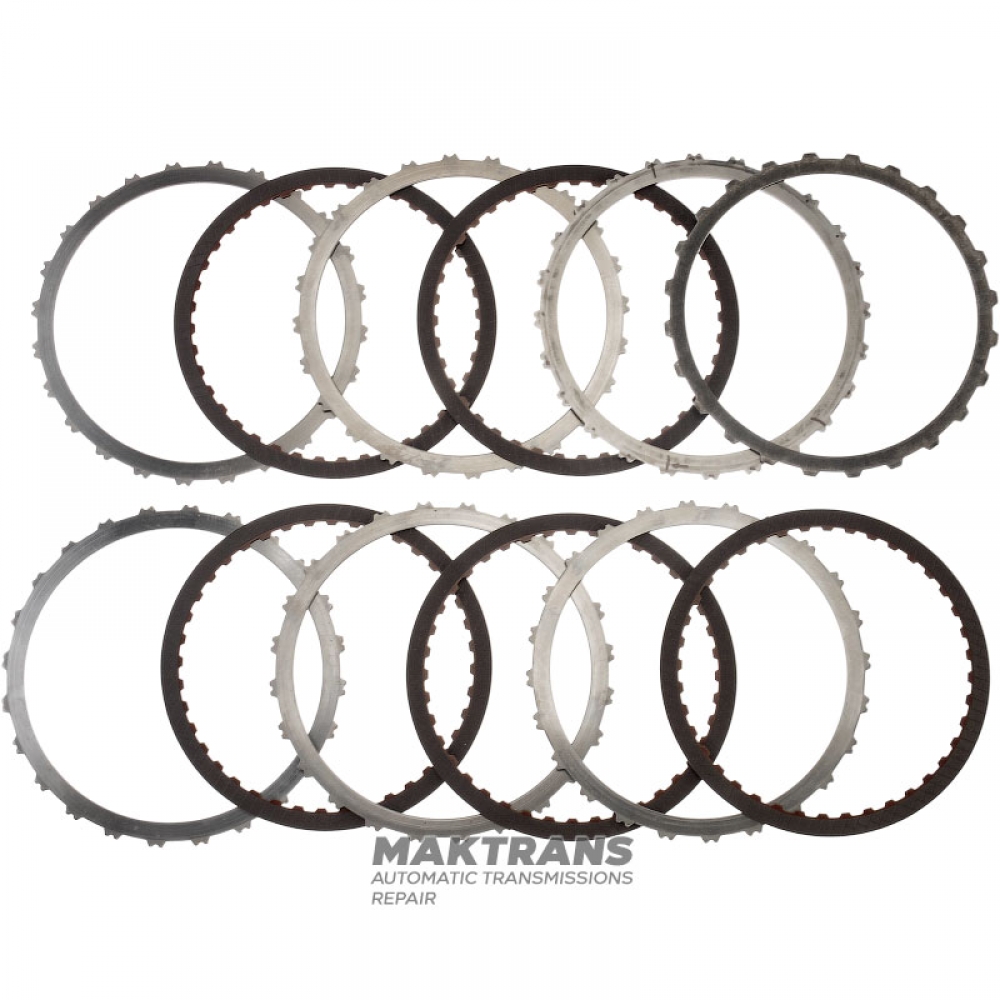

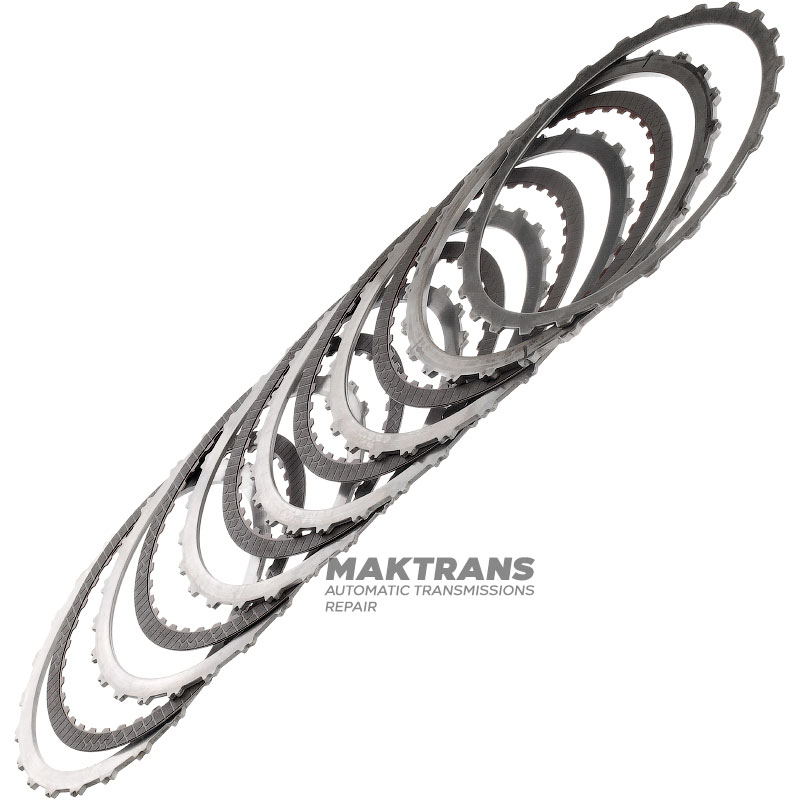

Steel and friction disc set C3 Clutch (Reverse) TOYOTA AB60E, AB60F, 3567760040, 3564860020 - 5 friction discs (total thickness of the set 24.55 mm)

• The total thickness of the set is 24.45 mm;

Support disk:

• Thickness - 3.50 mm;
• Inner diameter - 160.30 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.50 mm;
• Outer diameter -179.50 mm;
• Number of teeth - 40 pcs.;
• Number of discs in the set - 5 pcs.;

Steel disk:

• Thickness - 2.45 mm;
• Inner diameter - 179.50 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 4 pcs.;

Support disk:

• Thickness - 2.95 mm;
• Inner diameter - 179.50 mm;
• Number of teeth - 40 pcs.;
• Number of discs in the set - 1 pc.;

Spring disc:

• Thickness - 1.85 mm;
• Inner diameter - 162 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 1 pc.;

Tags: 3567760040, 3564860020
