Steel Drum Piston 6TH Clutch A8TR1 - 454414E030, 454114E000, 454164E000

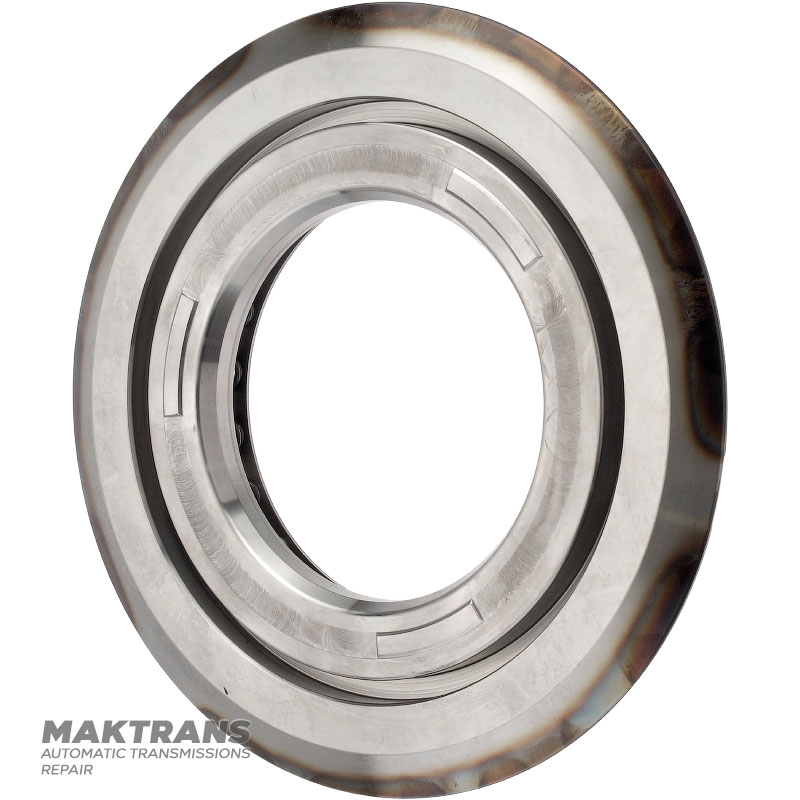

Steel piston:

• Overall height - 22.70 mm;
• Overall outer diameter - 180.65 mm;
• The outer diameter of the piston cylinder is 142.80 mm;
• Piston inner diameter - 91.05 mm;

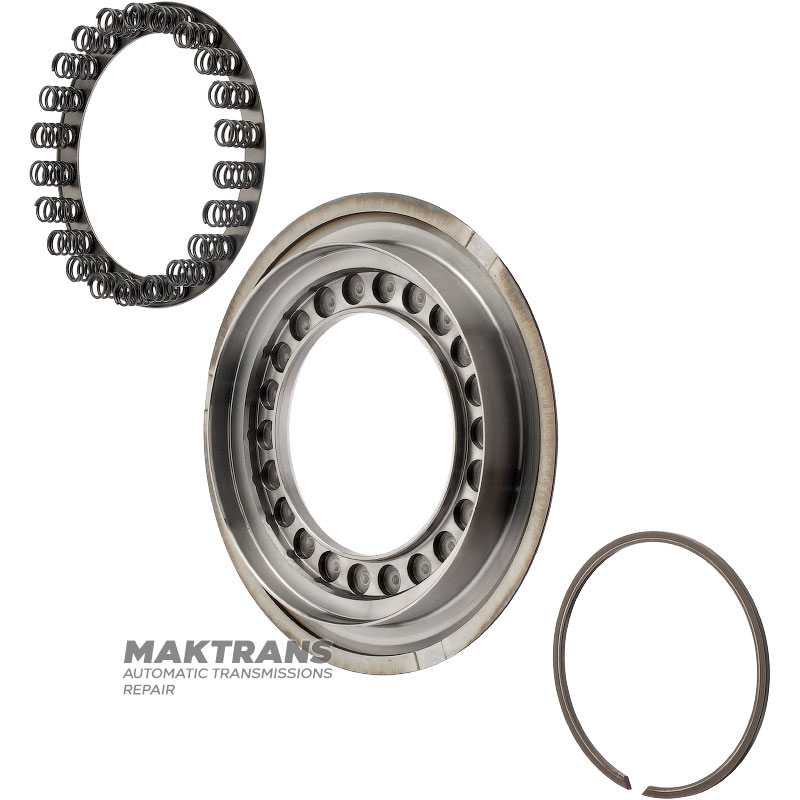

Return spring block:

• Overall height - 18.45 mm;
• Outer diameter - 124.20 mm;
• Inner diameter - 99.25 mm;
