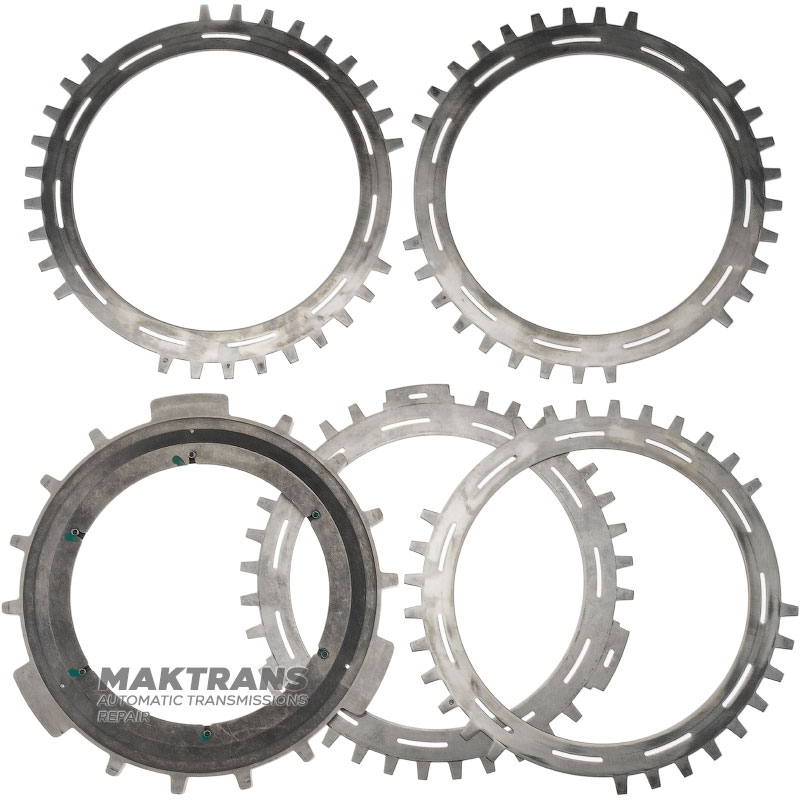

Steel Wheel Set C3 (3-5-R) Clutch ALLISON 1000 - 29535648, 29546701, 29542192

Support disk:

• Overall height - 17.53 mm;
• Disc thickness - 15.40 mm;
• The thickness of the return spring support is 10.35 mm;
• Inner diameter - 184.20 mm / 157.85 mm;
• Number of teeth - 15 pcs.;
• Number of discs in the set - 1 pc.;

Steel disk:

• Thickness - 2.55 mm;
• Inner diameter - 180.50 mm;
• Number of teeth - 27 pcs.;
• Number of discs in the set - 3 pcs.;

Support disk (with return springs):

• Thickness - 3.25 mm;
• Inner diameter - 180.50 mm;
• Number of teeth - 30 pcs.;
• Number of discs in the set - 1 pc.;
