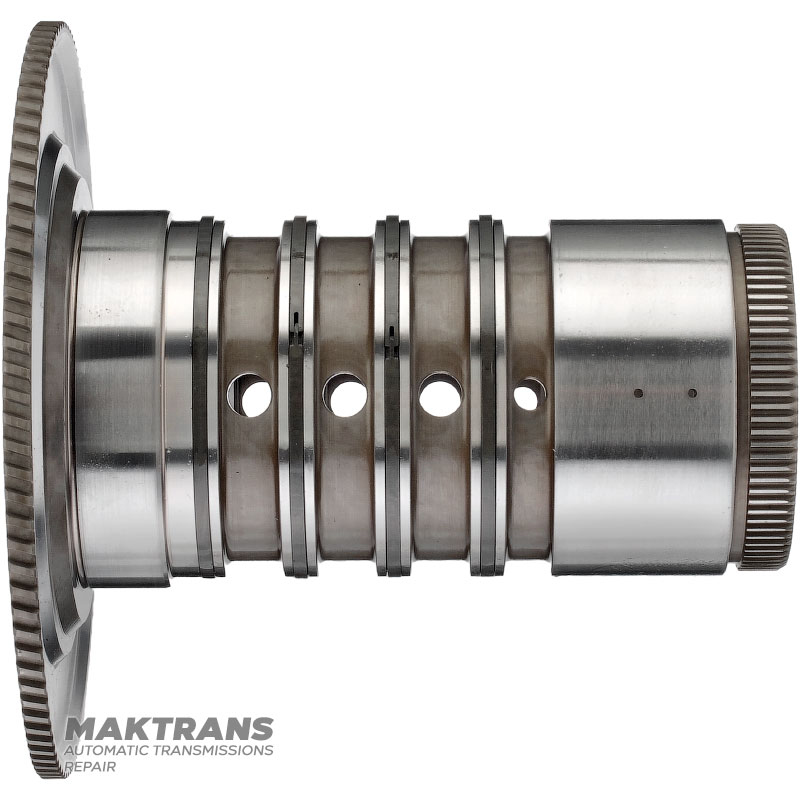

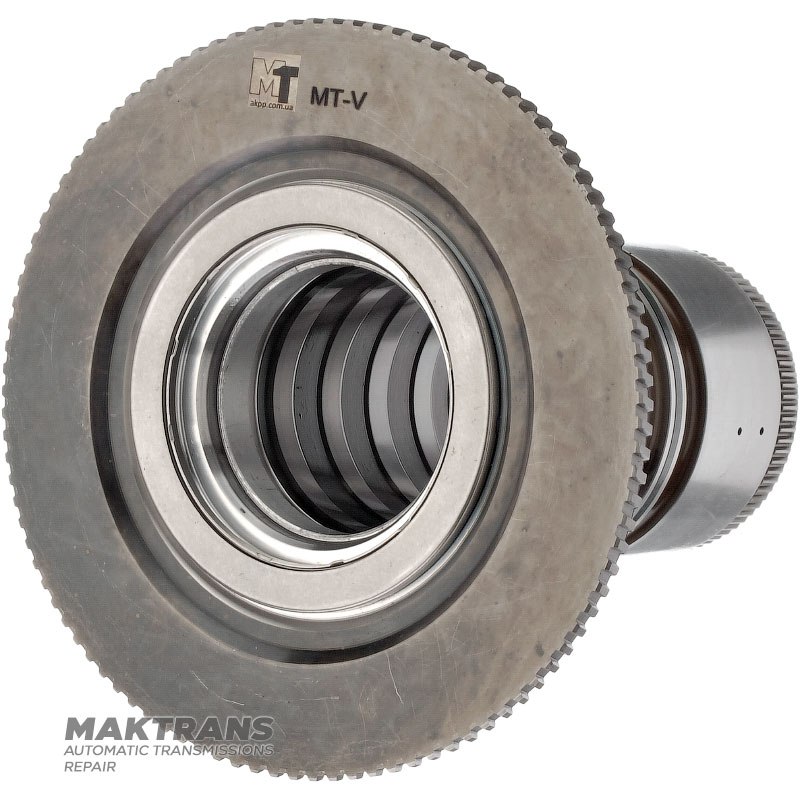

Drum hub C-D-F Clutch GM 10L1000 / (total height 142.50 mm, outer Ø 68.90 mm)

• Total height - 143 mm;
• The number of splines on the outer part is 88 pcs.;
• The outer diameter of the spline part is 66.70 mm;
• The outer diameter of the working part of the hub is 68.95 mm;
• The outer diameter of the ring gear is 145.45 mm;
• Inner diameter of bushings - 55 mm / 52 mm;
• Number of sealing rings - 4 pcs.;
• The outer diameter of the O-ring seats is 68.95 mm;

Thrust needle bearing:

• Outer diameter - 82.30 mm;
• Inner diameter - 63.75 mm;
• Thickness - 3.20 mm;
