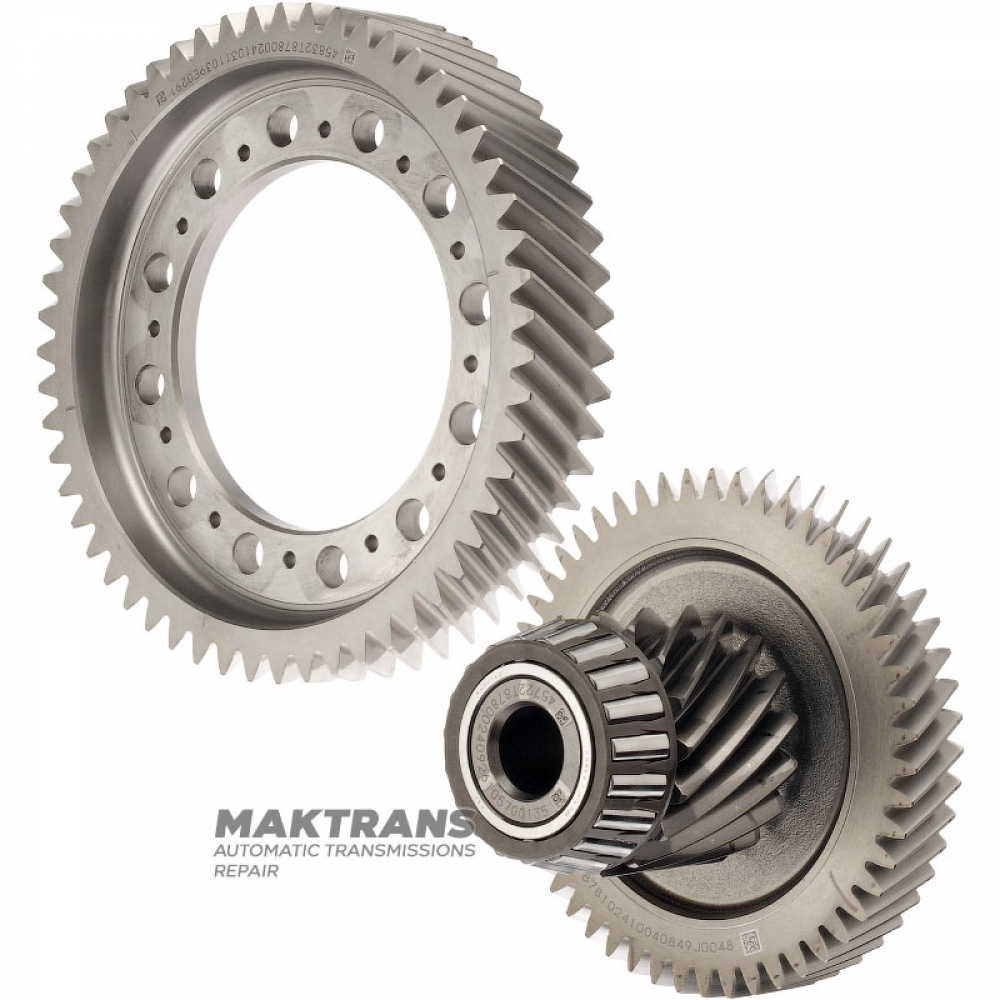

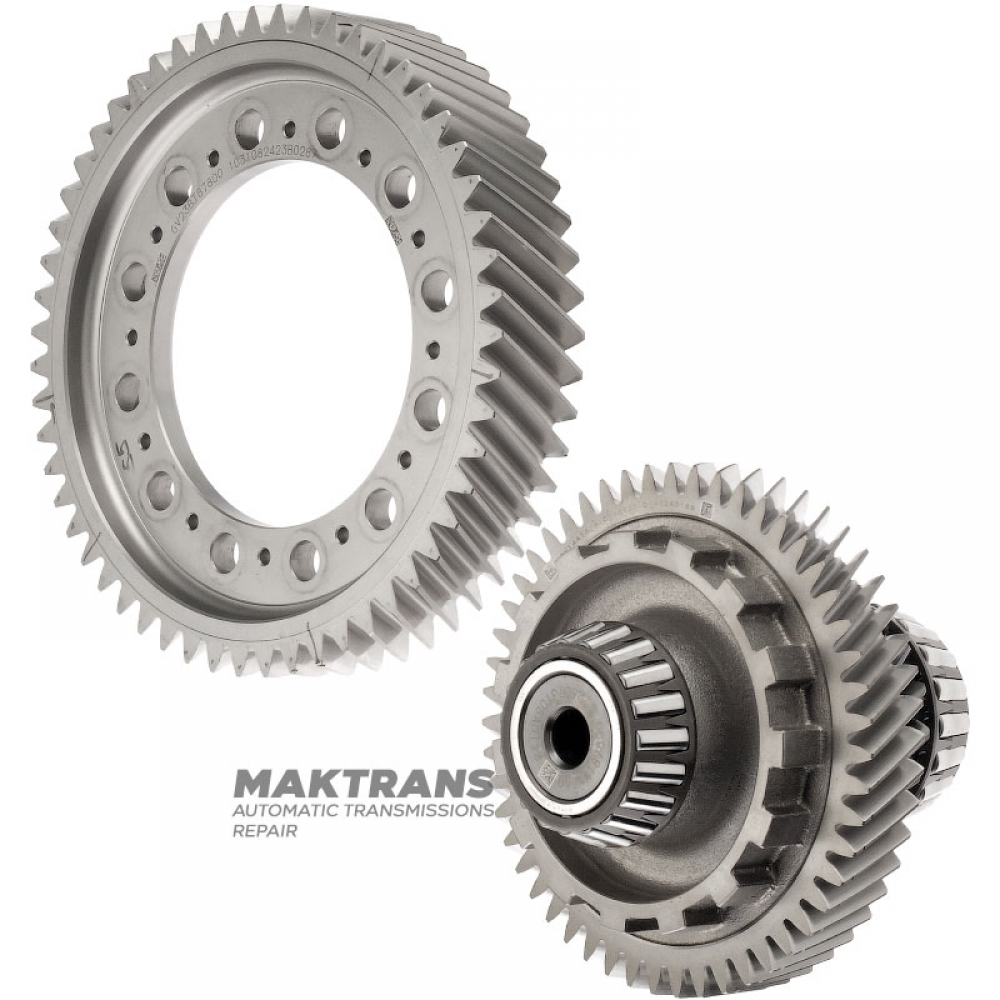

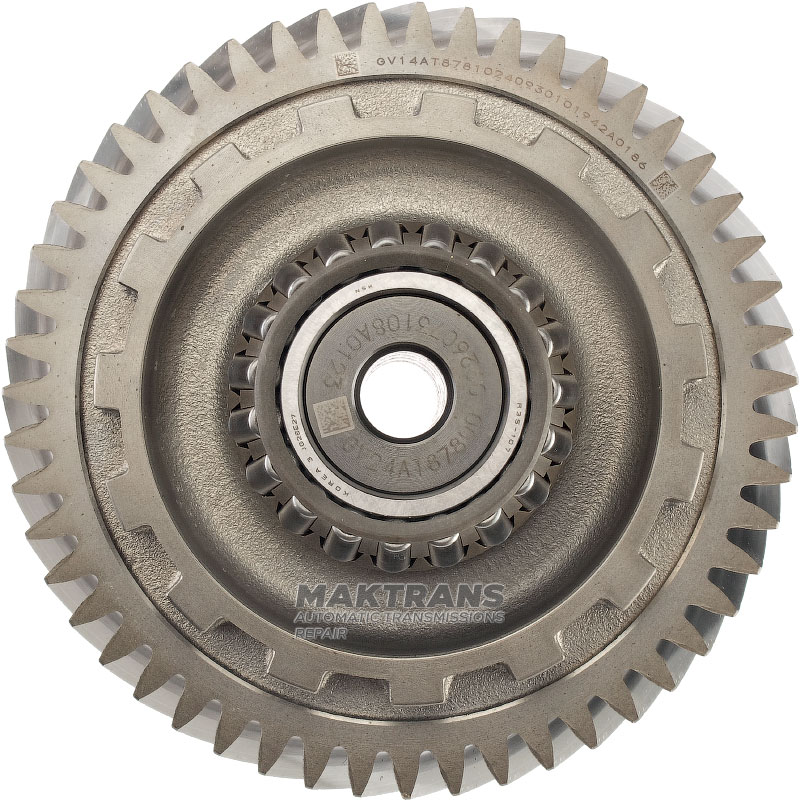

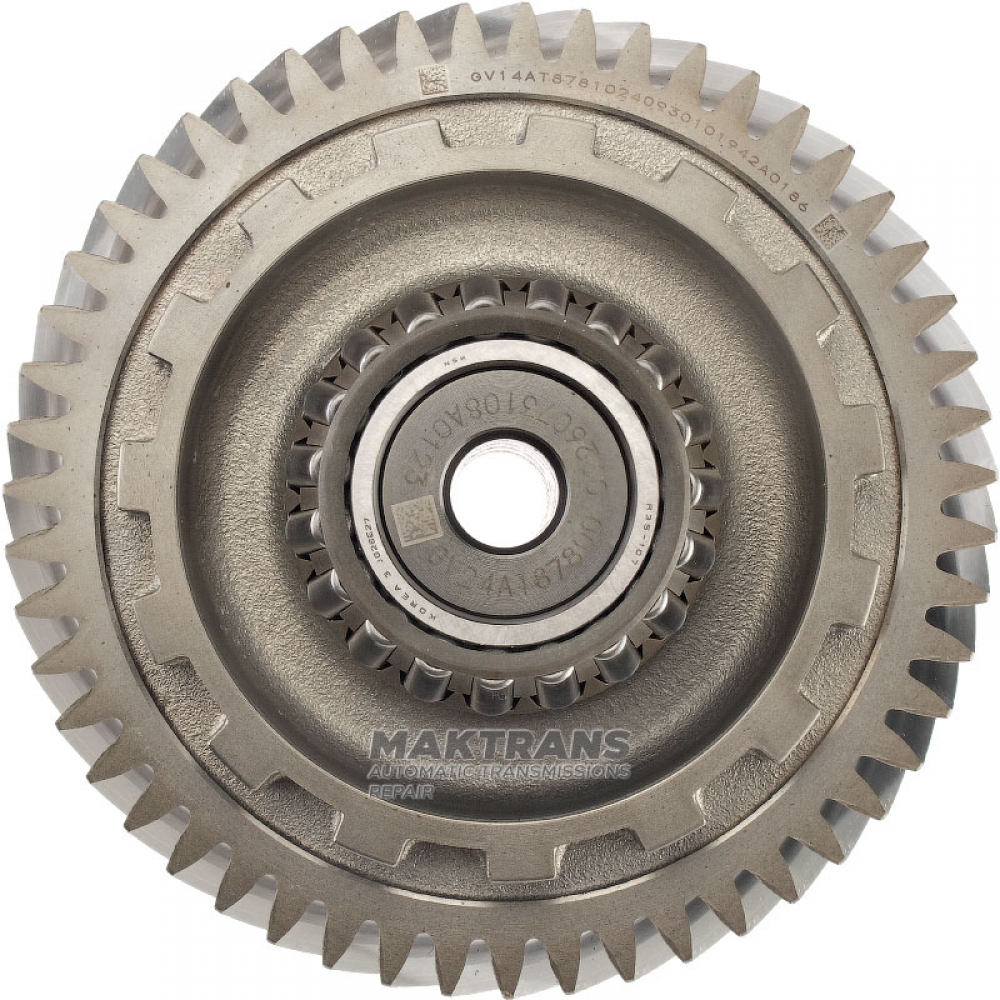

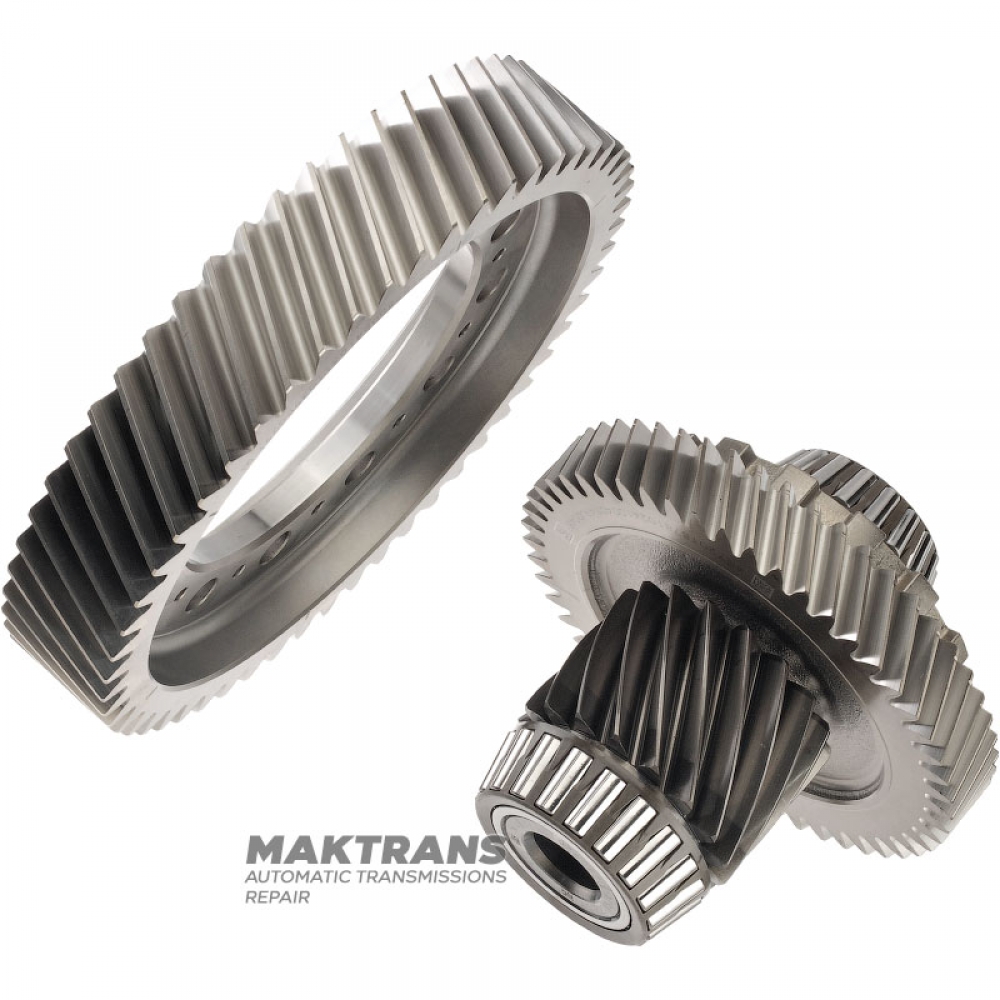

The main pair of helical gears of the differential VAG 09H, AQ451 (8-speed transmission) - 55 teeth (outer Ø 210.90 mm), 17 teeth (outer Ø 73.20 mm) / 51 teeth (outer Ø 150.35 mm)

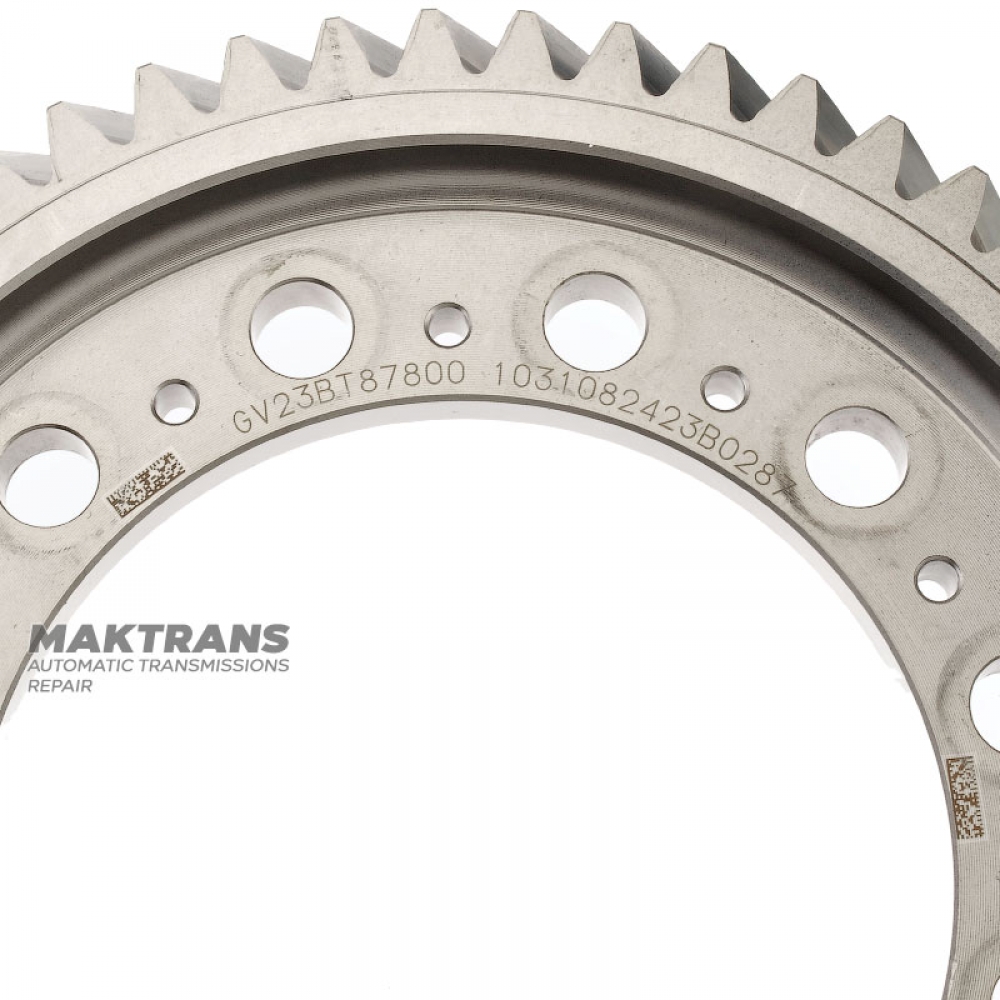

Helical differential gear:

• Gear width: 38.20 mm;
• Number of teeth - 55 pcs.;
• Gear outer diameter: 210.90 mm;
• Inner diameter of gear - 115.95 mm;
• Number of mounting holes - 12 pcs.;

Intermediate differential shaft:

• Overall height - 139 mm;

Differential drive pinion:

• Number of teeth - 55 pcs.;
• Gear outer diameter: 210.90 mm;

Driven gear:

• Number of teeth - 17 pcs.;
• Outer diameter - 73.20 mm;
• Gear width: 22.40 mm;

Bearings on the intermediate shaft:

• NSK-R40-140;
• NSK-R35-107;

Tags: 45722-T87800, 45720-T8781, 45832-T8780, 45722T87800, 45720T8781, 45832T8780
