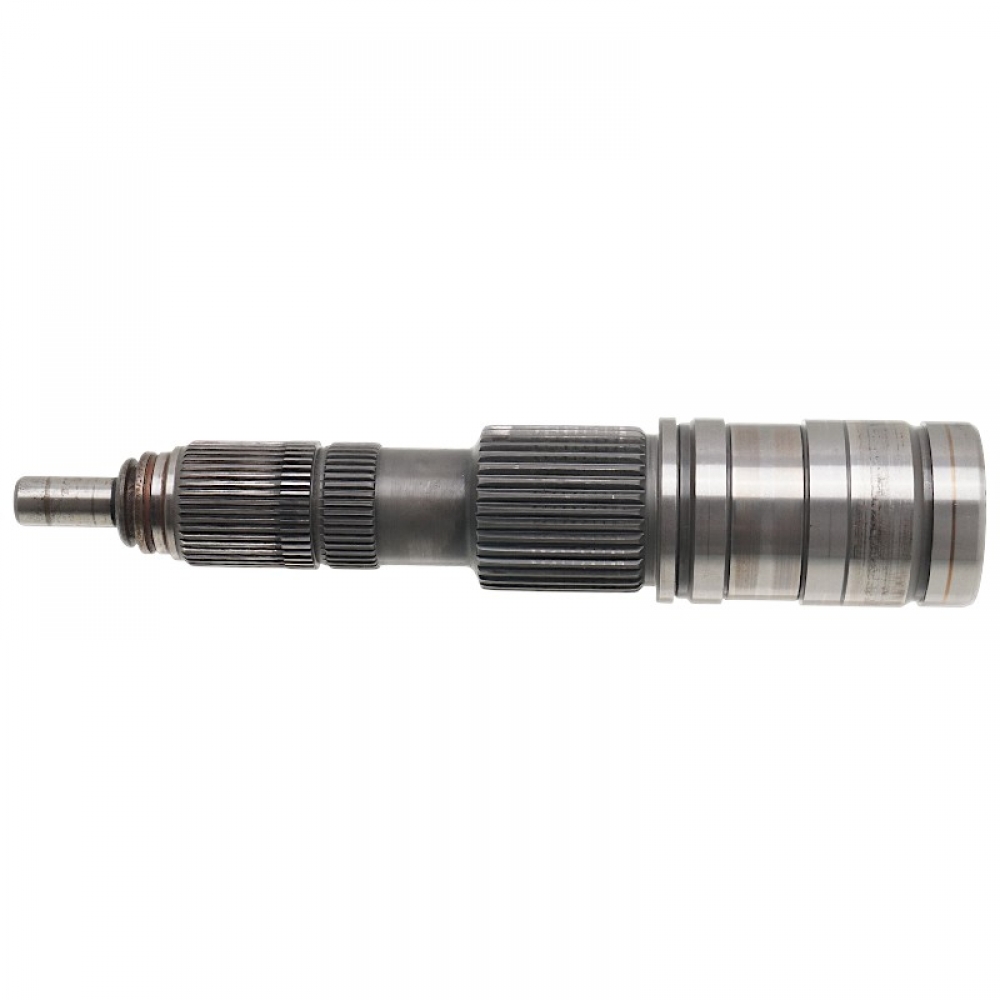

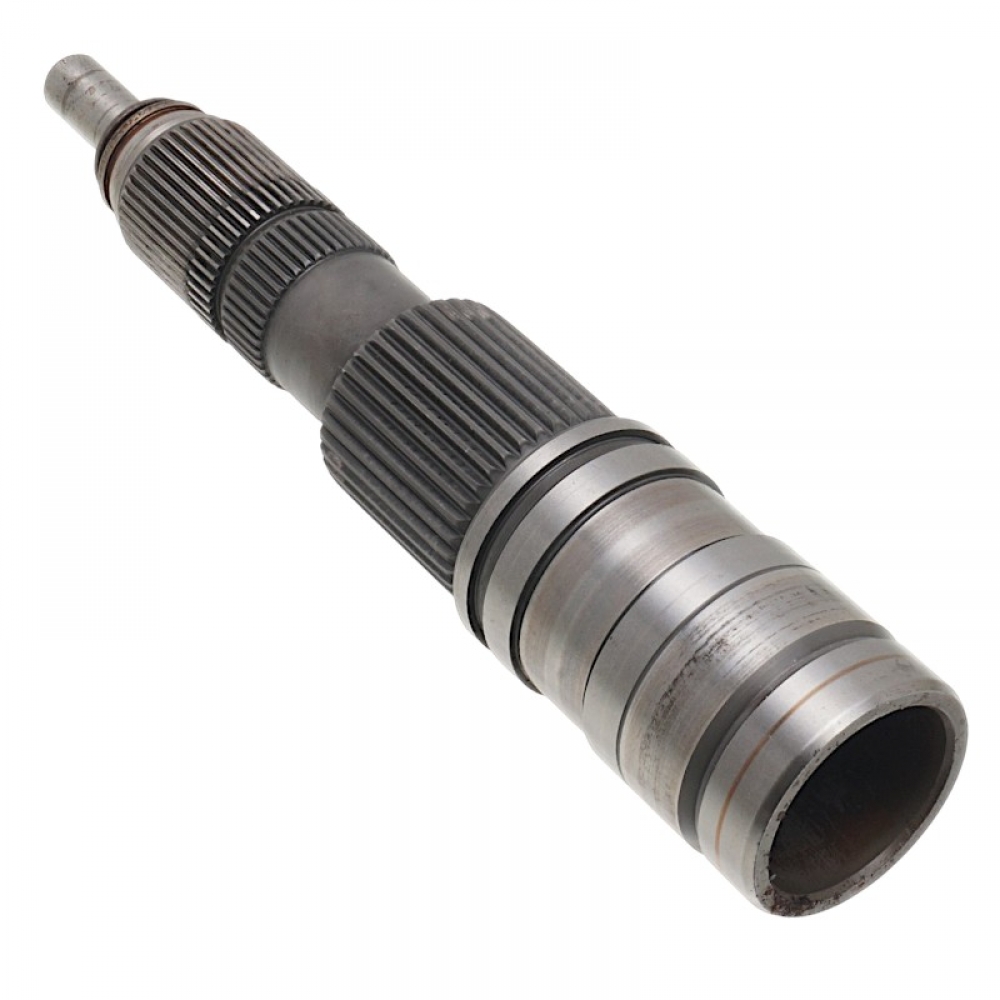

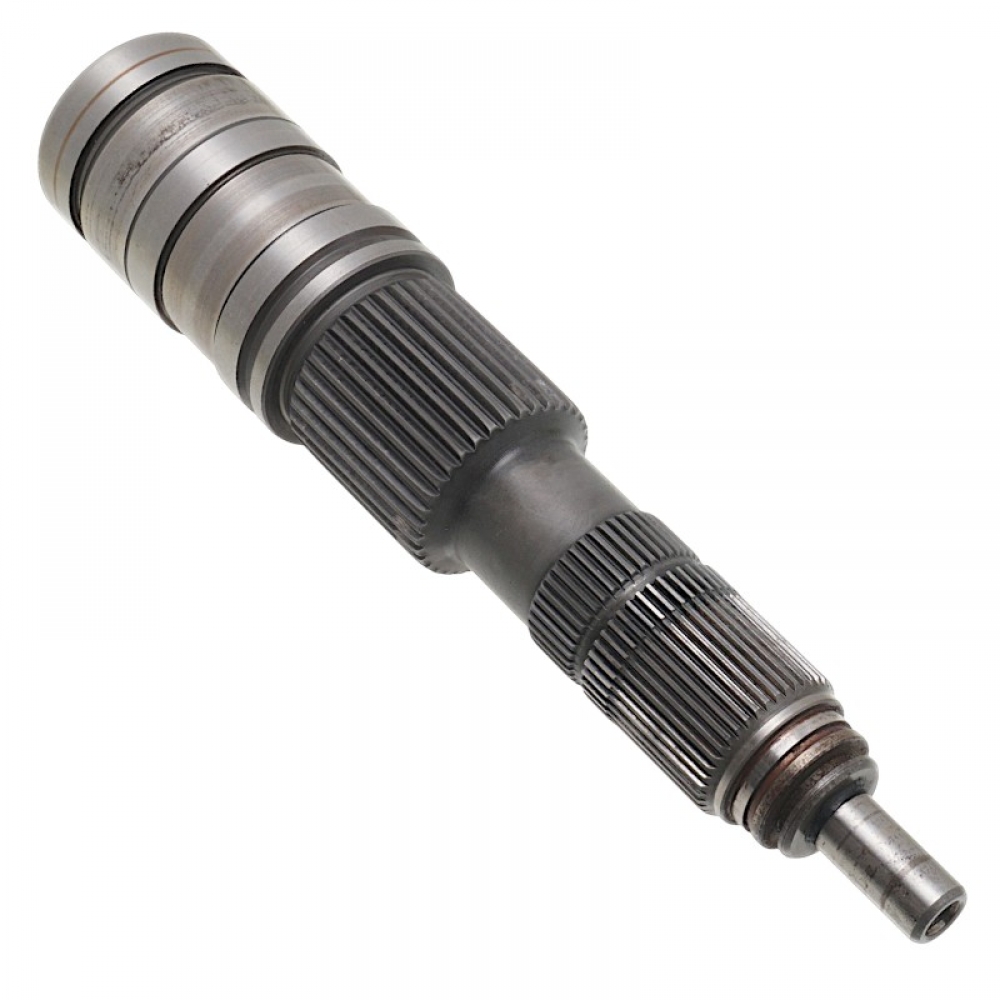

The main shaft of the BMW ATC45L, ATC35L transfer case - without bearings, overall length 257 mm

• Overall height - 257 mm;
• Number of splines on the shaft - 43 splines (Ø 34.95 mm) | 36 splines (Ø 45.15 mm)
• Number of splines on the inner side of the shaft - 43 pcs.;

Applicability in BMW cars (ATC35L):

• - 2011-up BMW 1-series F20, F21
• - 2013-up BMW 2-series F22, F23
• - 2011-up BMW 3-series F30, F31, F34, F35
• - 2013-up BMW 4-series F32, F33, F36
• - 2009-2017 BMW 5-series F07, F10, F11, F18
• - 2010-up BMW 6-series F06, F12, F13
• - 2012-2015 BMW 7-series F01, F02
• - 2009-2015 BMW X1 E84

Applicability in BMW vehicles (ATC45L):

• - 2010-2017 BMW X3 F25
• - 2014-up BMW X4 F26
• - 2010-2013 BMW X5 E70
• - 2013-up BMW X5 F15, F85
• - 2008-2014 BMW X6 E71
• - 2014-up BMW X6 F16, F8
