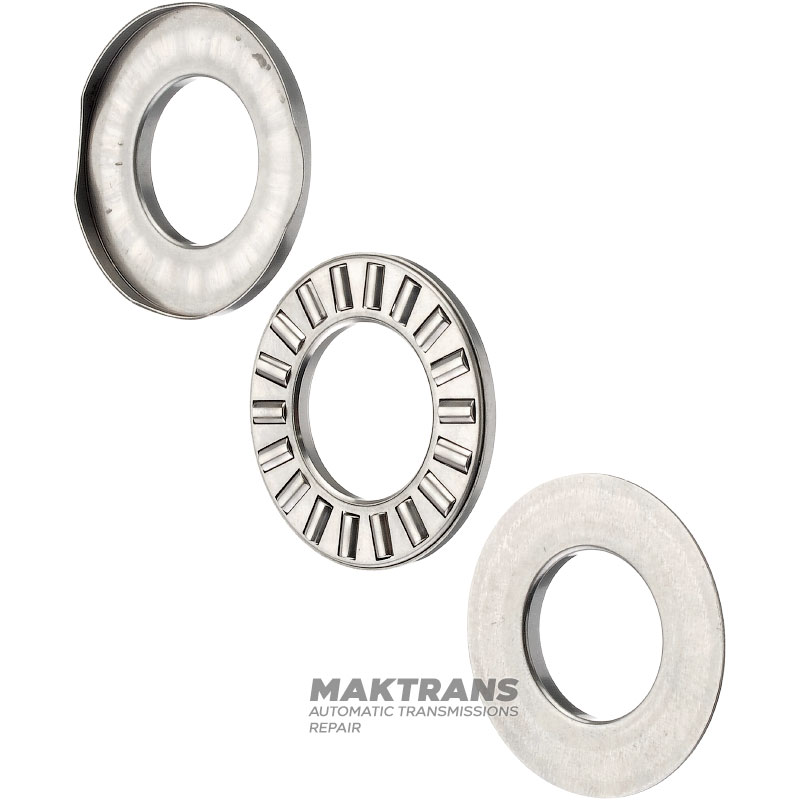

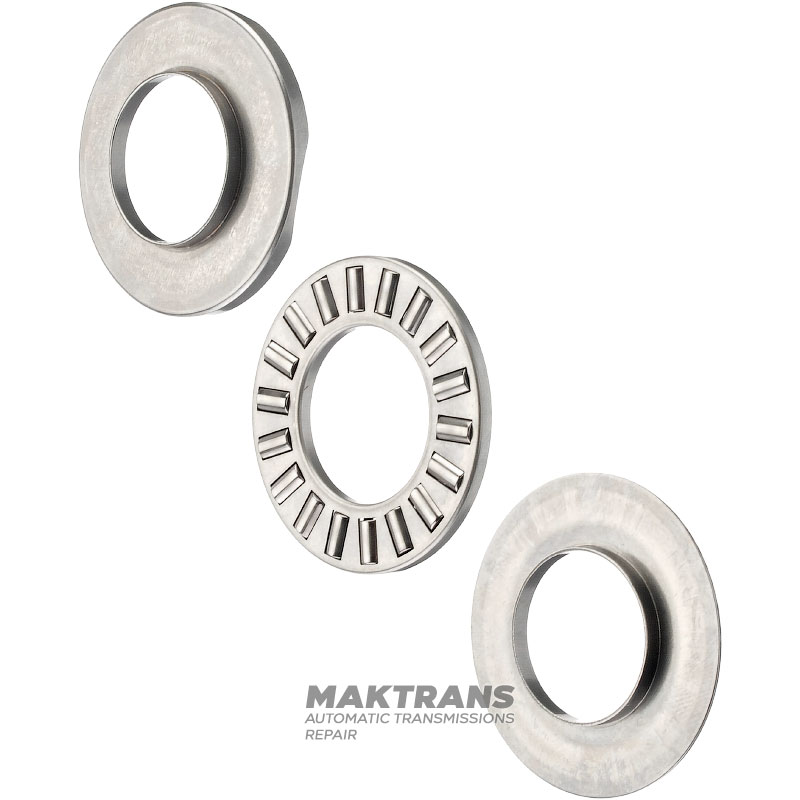

Thrust needle bearing VAG 09D / AISIN WARNER TR-60SN - (52 x 28.85 x 4.50)

*installed between drum K2 and output shaft.

Needle bearing:

• Outer diameter - 52 mm;
• Inner diameter - 28.85 mm;
• Thickness - 4.50 mm;

Clip No. 1:

• Height - 3.90 mm;
• Thickness - 0.80 mm;
• Outer diameter - 50.60 mm;
• Inner diameter - 26.45 mm;

Clip No. 2:

• Height - 7.50 mm;
• Outer diameter - 53.70 mm;
• Inner diameter - 28.35 mm;
