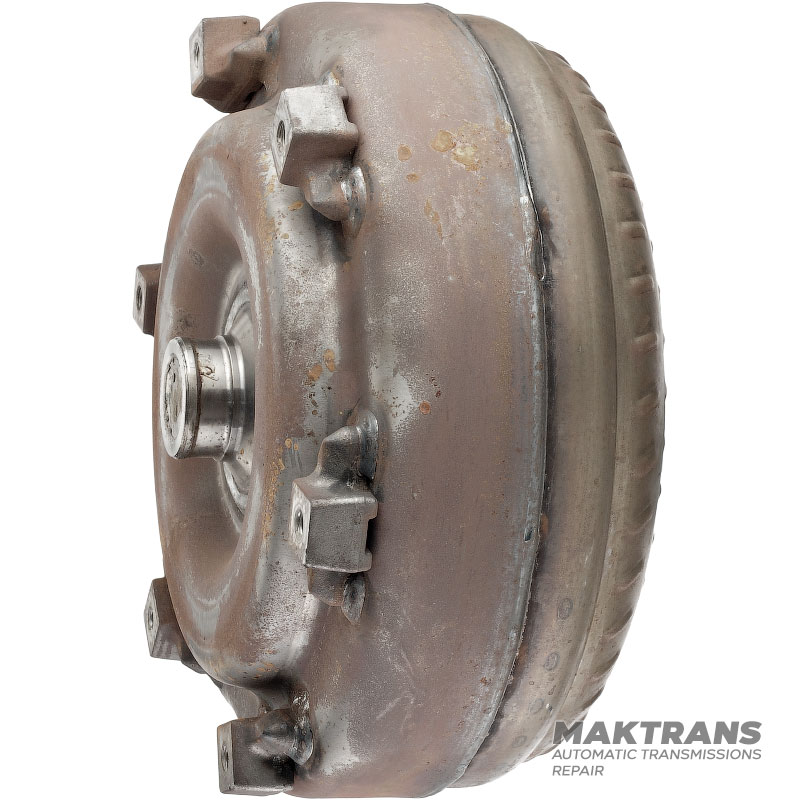

Torque Converter AISIN WARNER AS68RC, AS69RC — RL214649AA

• Total height - 210 mm;
• Outer body diameter - 345 mm;
• Neck height - 57 mm;
• Outer diameter of the neck - 54.35 mm;
• Pilot height - 35 mm;
• Pilot outer diameter - 53.95 mm;
• Number of mounting holes - 6 pcs.;
• Height of mounting bracket 27 mm;
• The internal diameter of the mounting holes is 10.45 mm;
• The radius from the center of the pilot to the center of the mounting hole is 160 mm;
• The distance between the centers of the mounting holes is 160 mm;

Tags: RL214 649AA, RL214649AA, RL214-649AA, 32040
