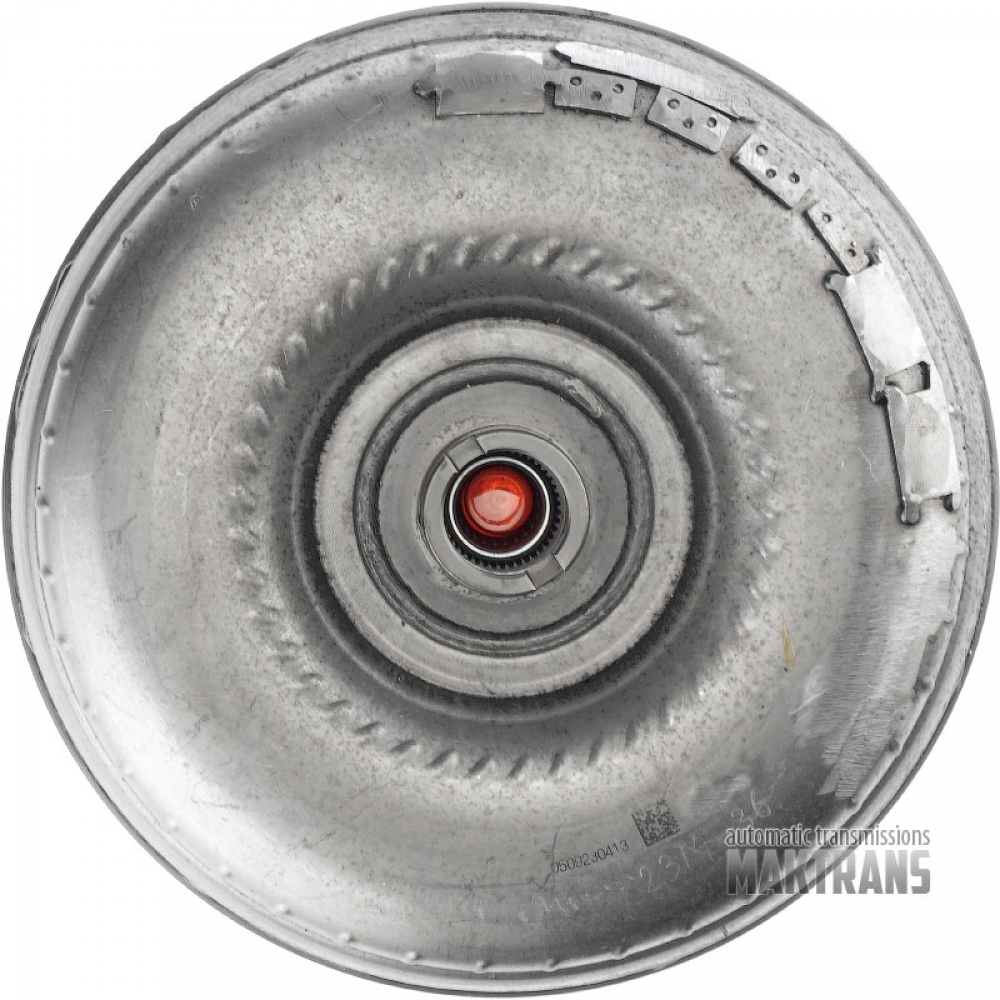

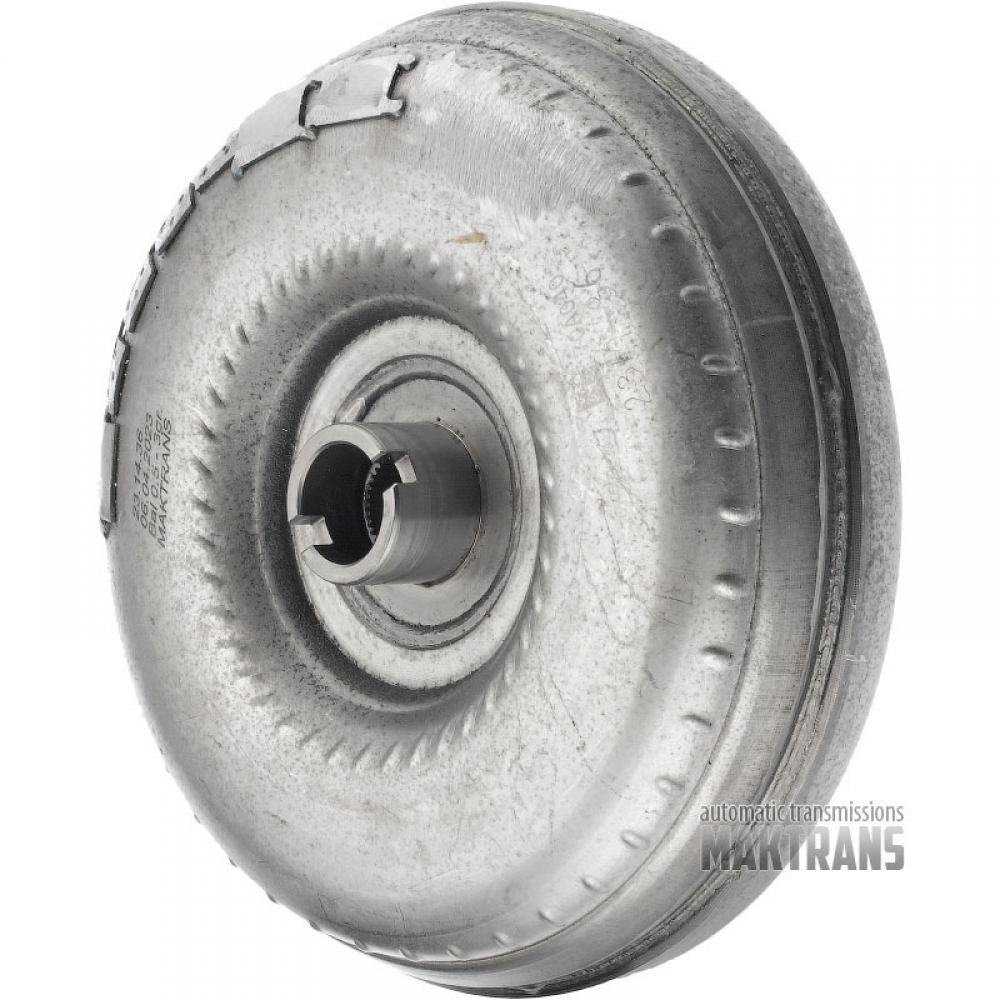

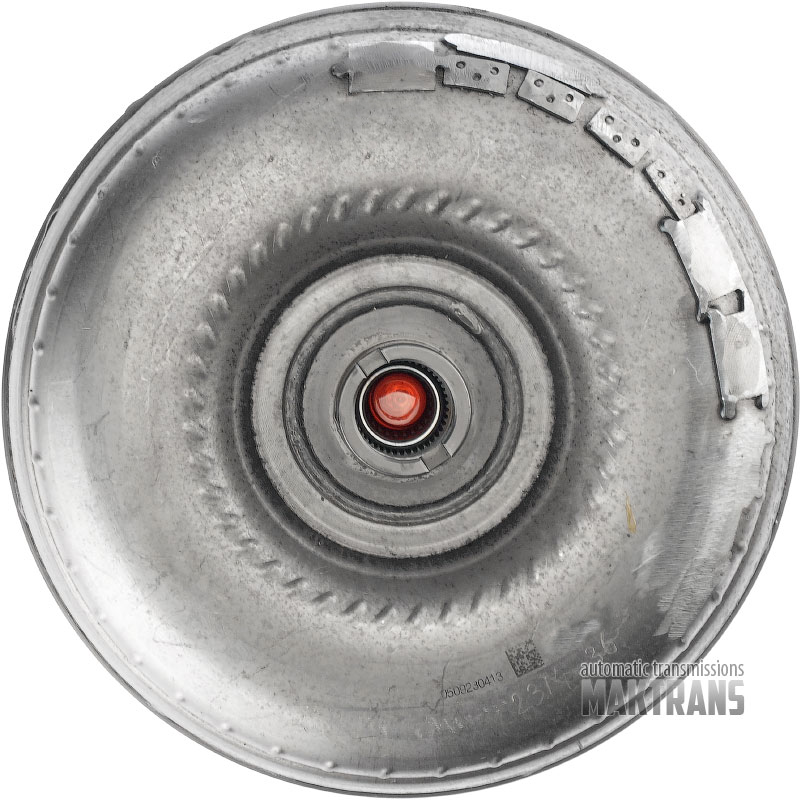

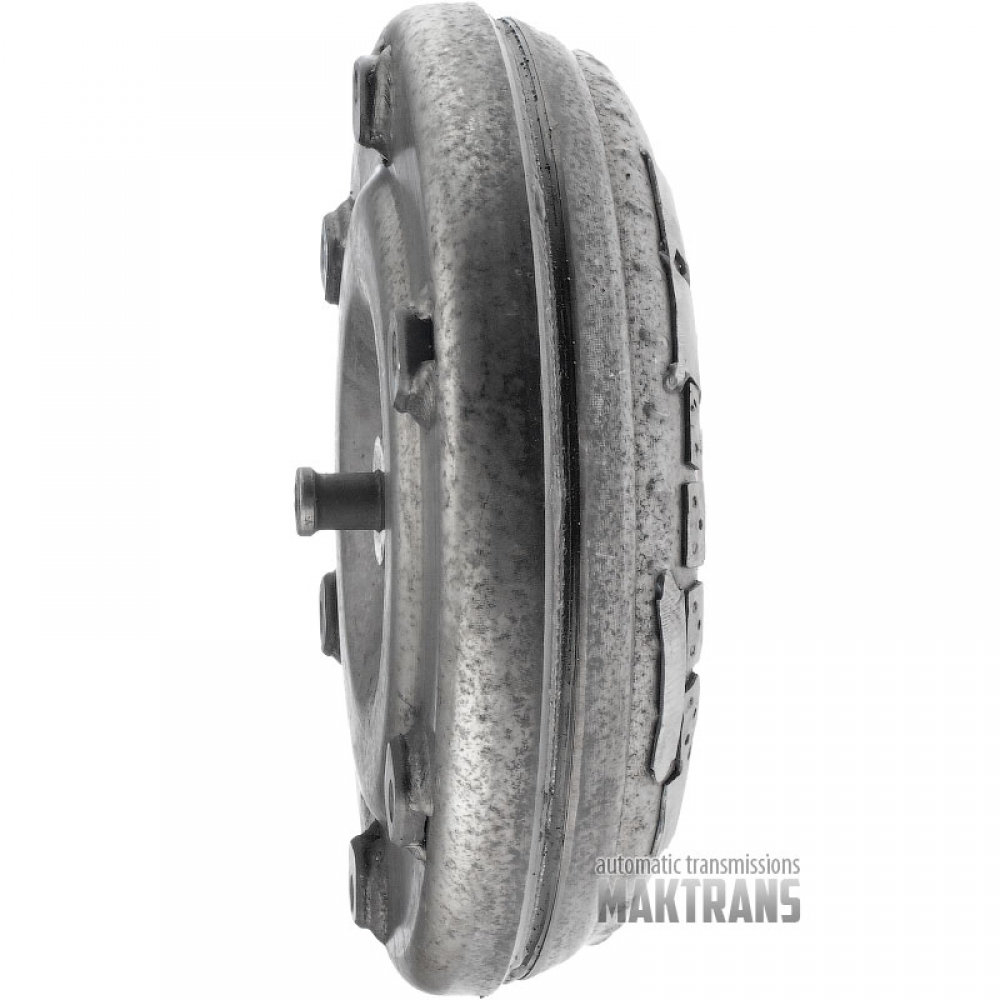

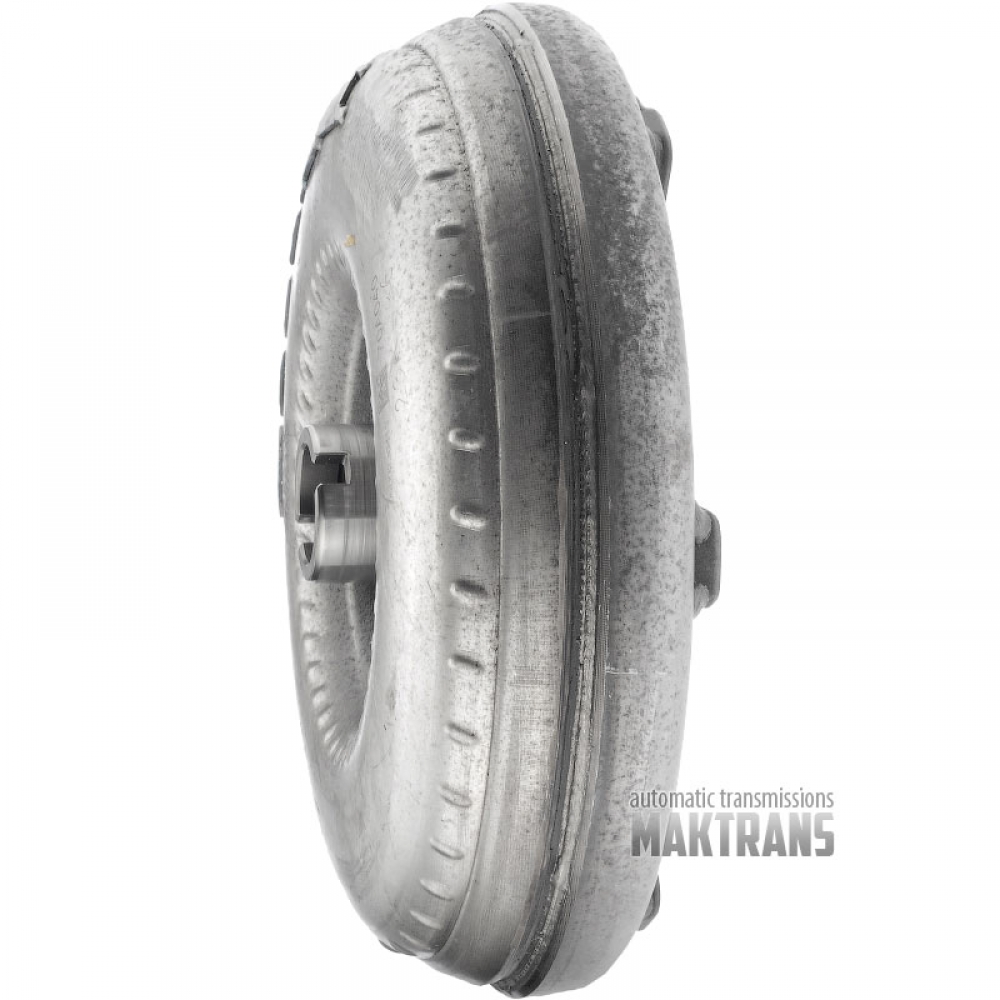

Torque converter Aisin Warner TF80-SC - 71A240

• Overall height - 99 mm;
• The height of the torque converter from the bottom to the top cover is 40.30 mm;
• The outer diameter of the torque converter is 282 mm;

Torque converter neck:

• Neck height - 33.90 mm;
• Neck diameter - 46.90 mm;

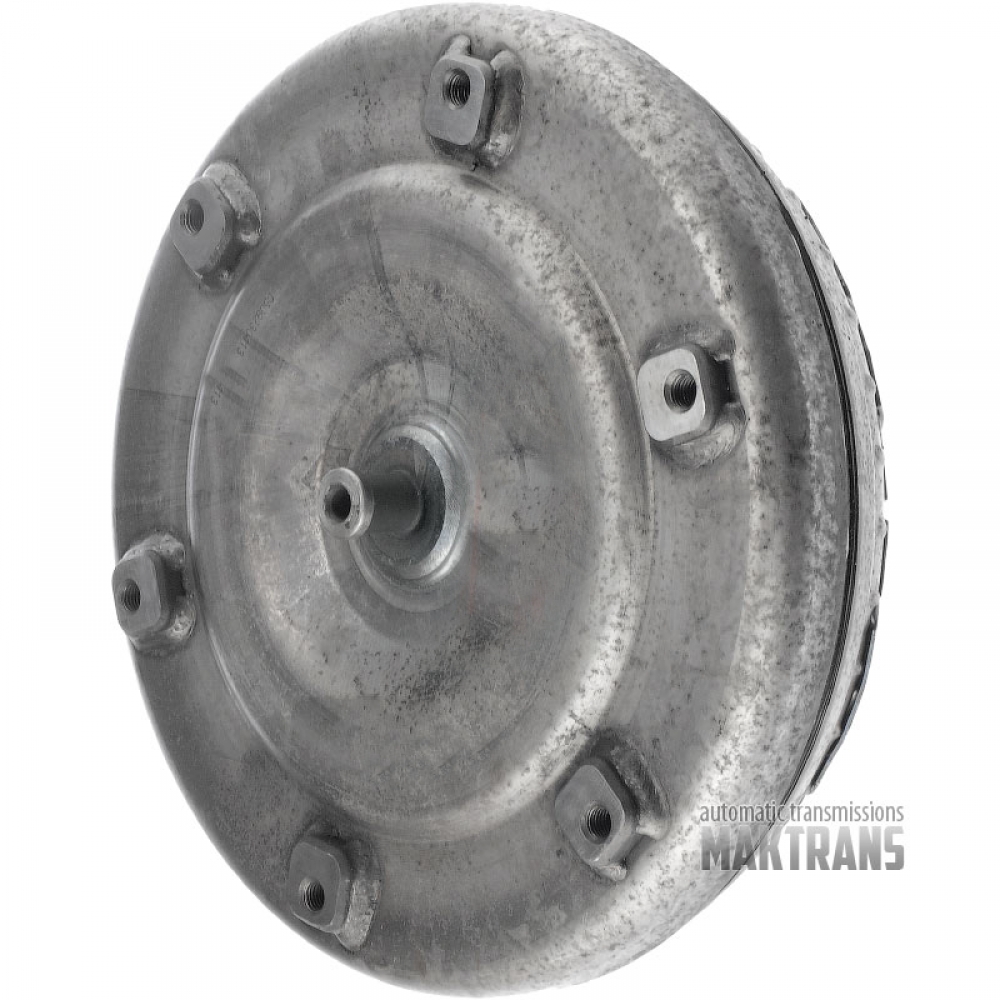

Rear cover of the torque converter:

• Radius (from the center of the pilot to the center of the mounting stud) - 123.80 mm;
• Distance between centers of mounting holes - 110.80.60 mm;

Mounting holes:

• Mounting hole diameter: 8.20 mm;
• Number of mounting holes - 6 pcs.;

Pilot (in the center of the rear cover of the torque converter):

• Height - 24.50 mm;
• Pilot diameter - 21 mm;
