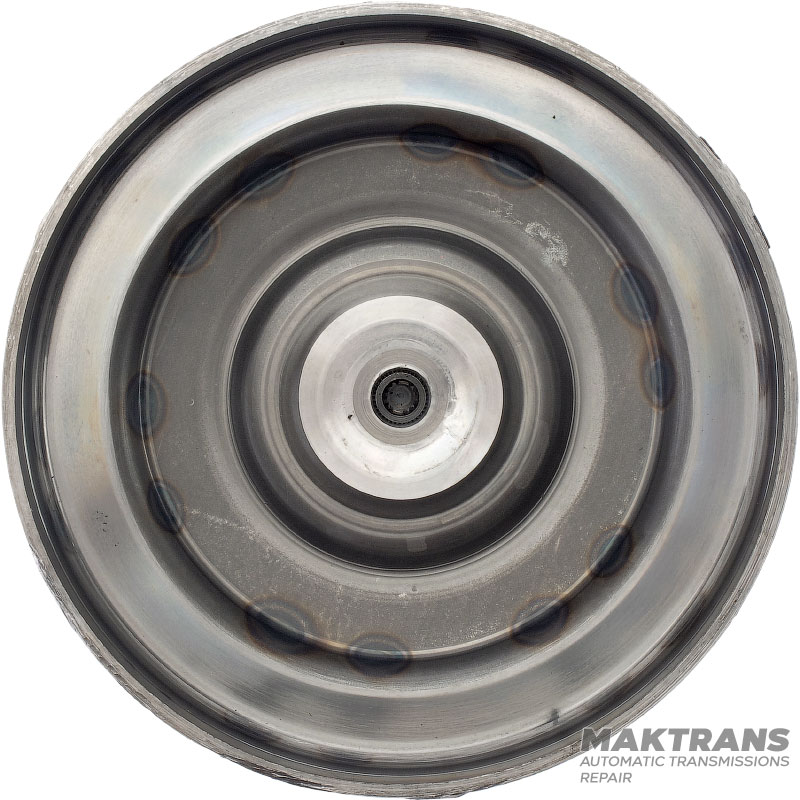

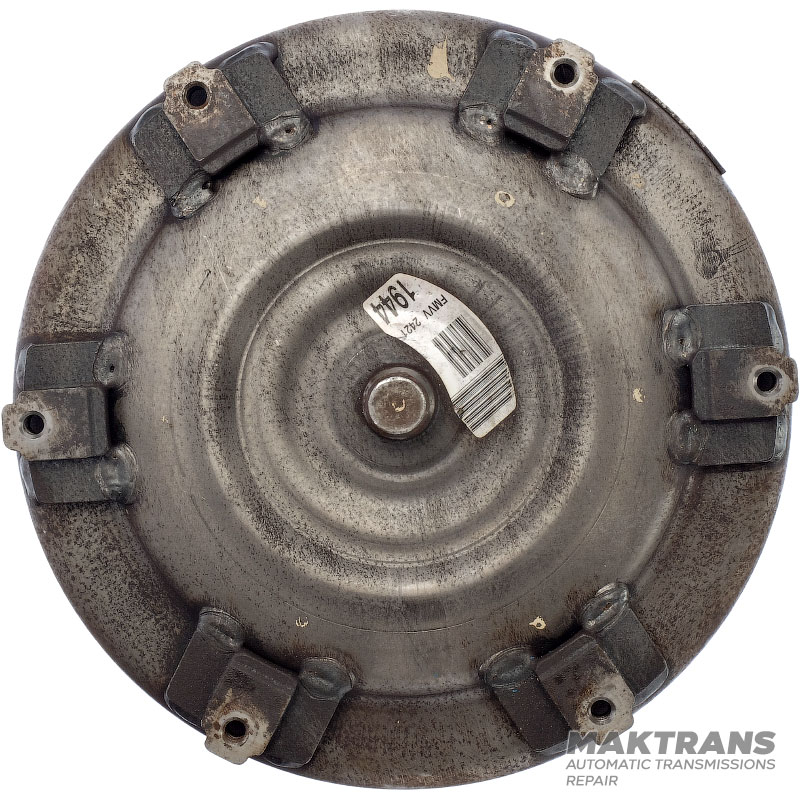

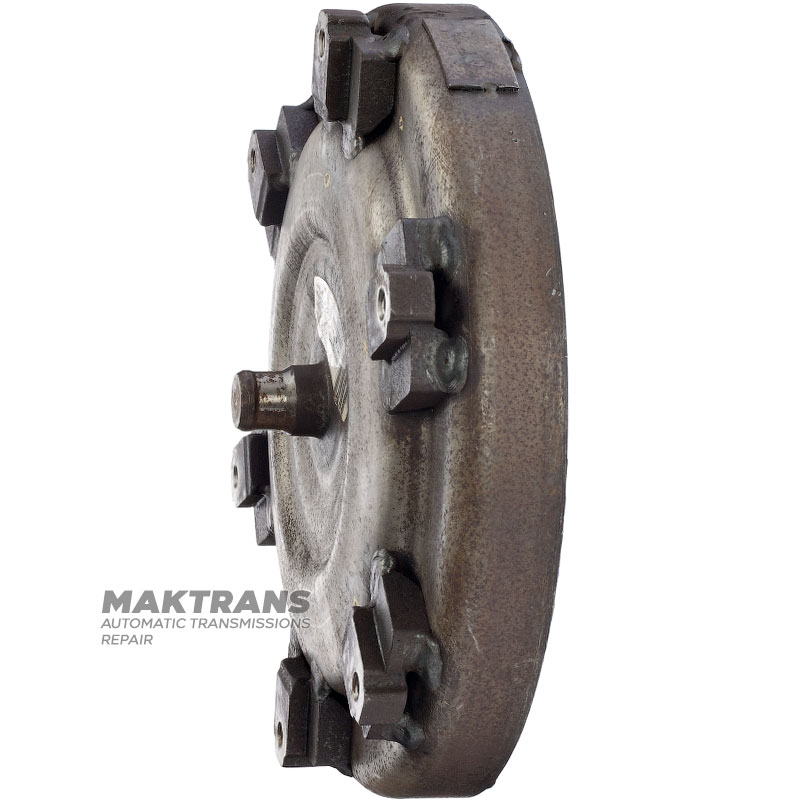

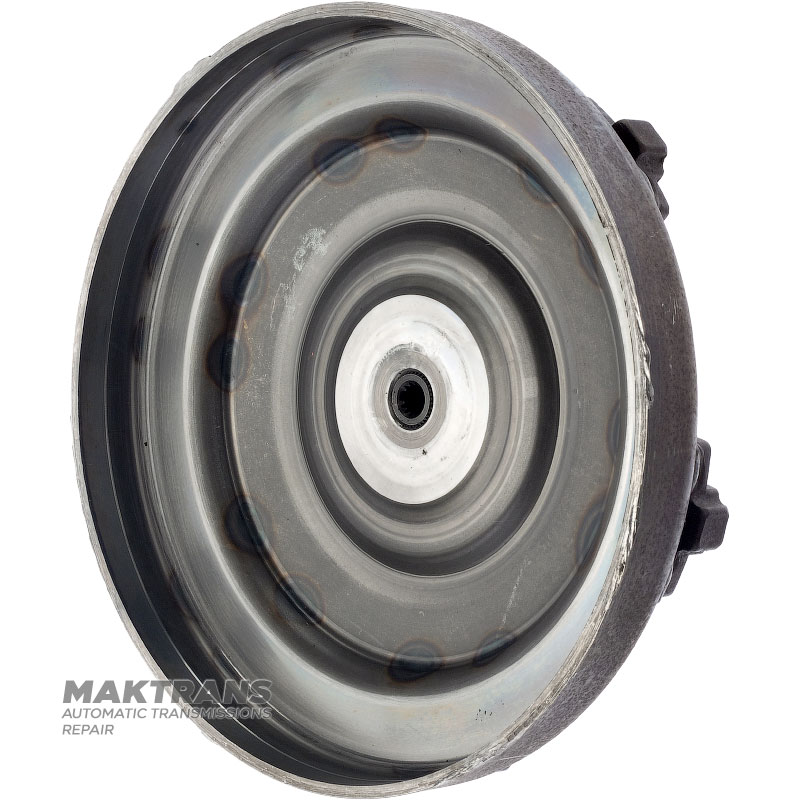

Torque converter front cover GM 4T65E / 24211943 24211944 2426630

• Total height - 76 mm;
• The outer diameter of the case is 270.10 mm;
• The number of slots on the inside of the cover is 12 pcs.;
• Pilot height - 31 mm;
• Pilot outer diameter - 20.95 mm / 24.15 mm;
• Number of mounting holes - 6 pcs.;
• The inner diameter of the mounting hole is 6.75 mm;
• Radius from the center of the pilot to the center of the mounting hole -123 mm;
• The distance between the centers of the mounting holes is 122 mm;

Tags: FLTV 24211943, FMVV 24211944, 2426630, 2.8L, 2.9L turbo (FMVV); 2.9L non-turbo (FLTV) S-80, S-90
