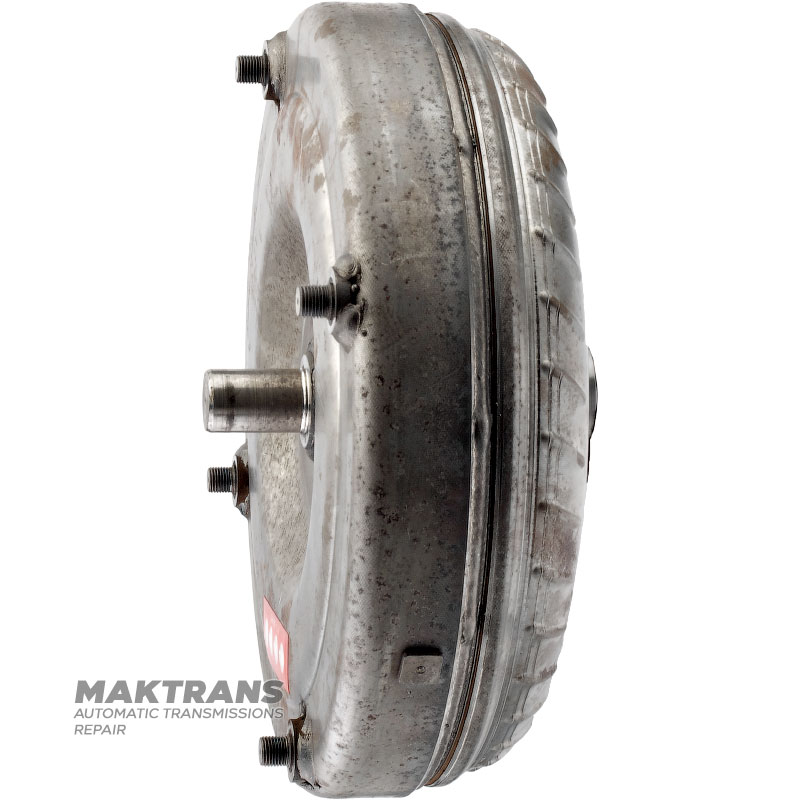

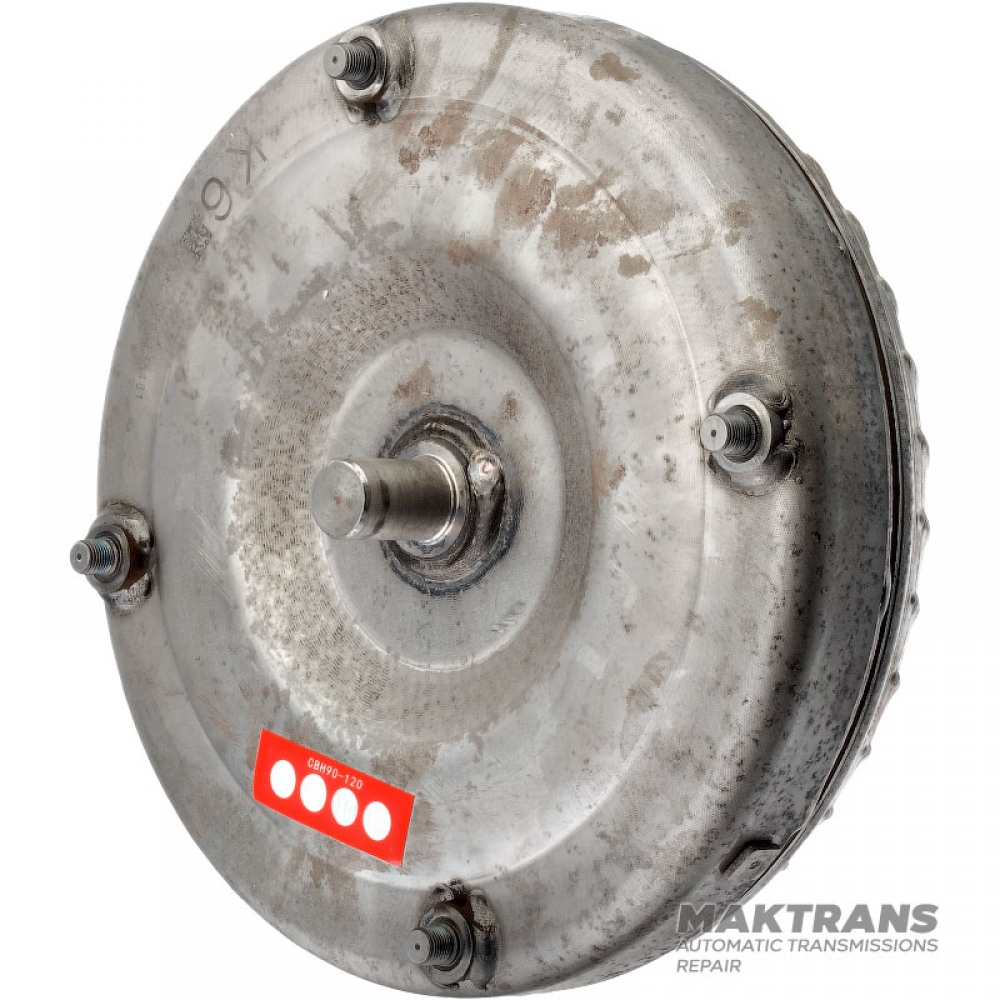

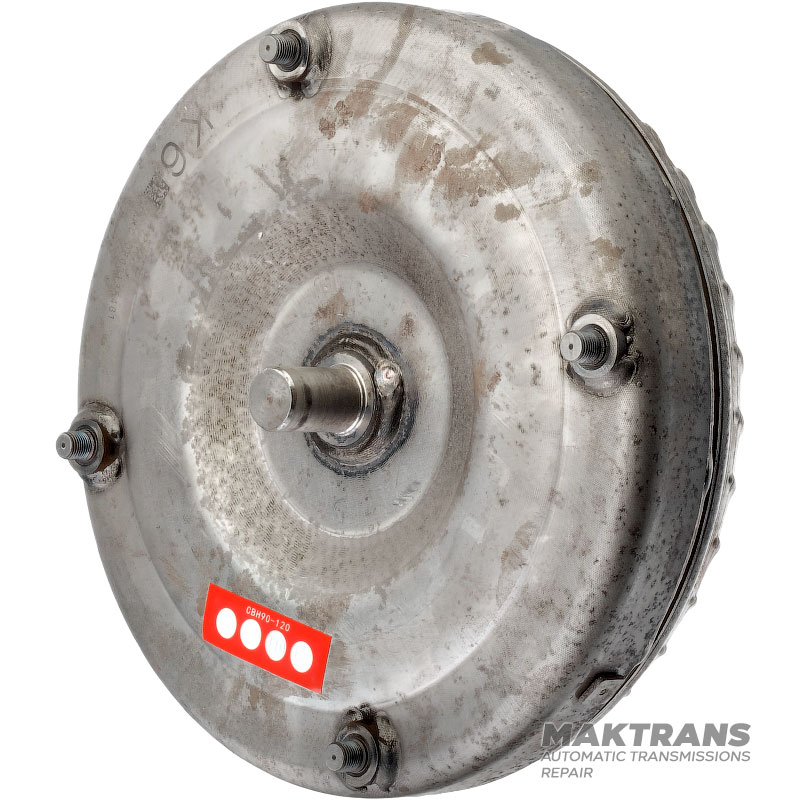

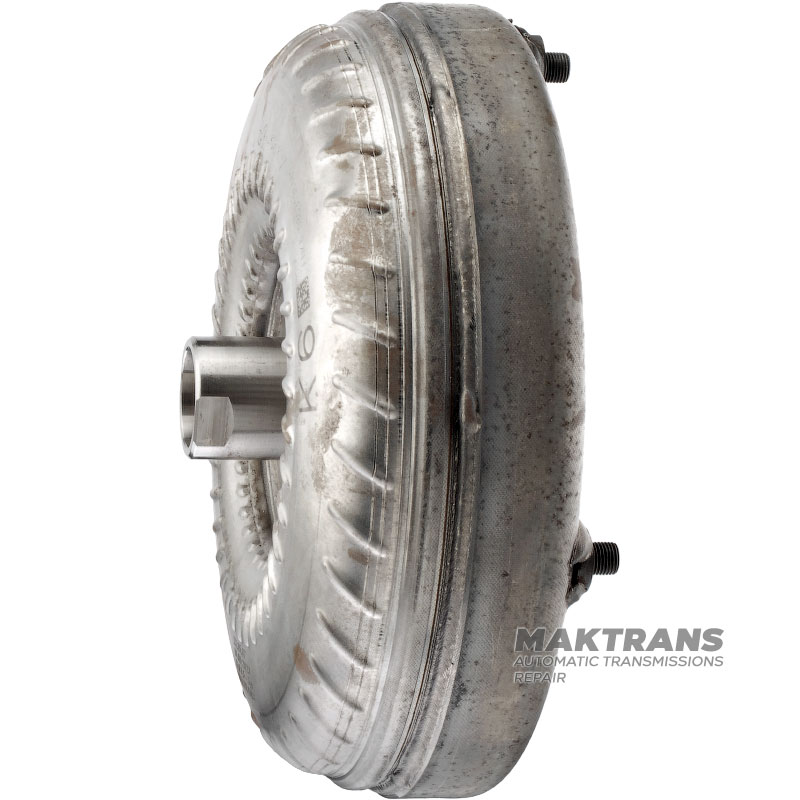

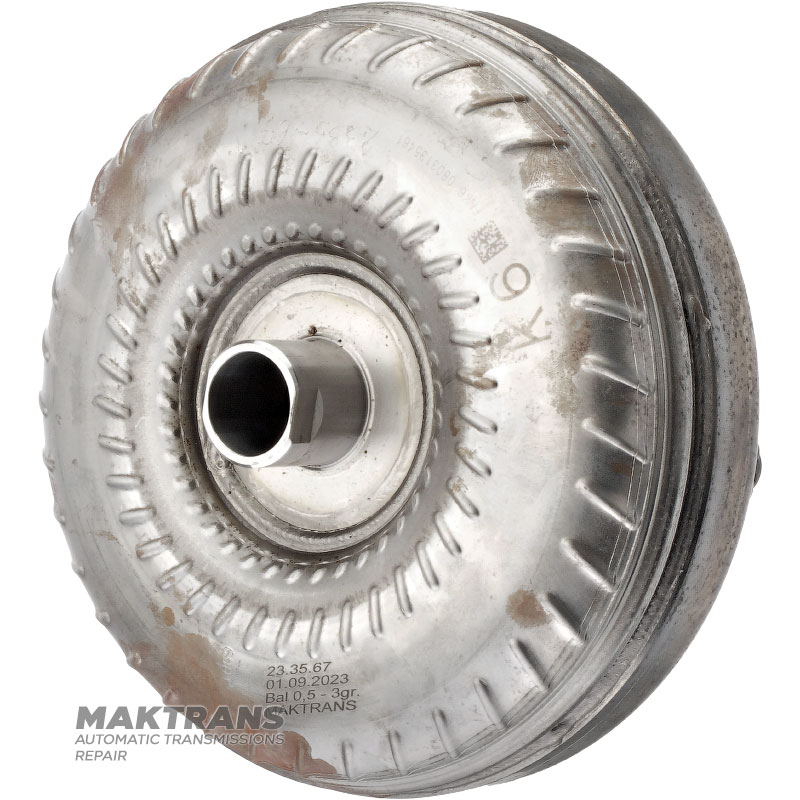

Torque converter MAZDA FN4A-EL (K6) FNK6-19-100B — remanufactured

• Total height - 126 mm;
• Neck height - 36 mm;
• The outer diameter of the neck is 39.95 mm;
• Inner neck diameter - 32.20 mm;
• The outer diameter of the case is 258.20 mm;
• Pilot height - 32 mm;
• The outer diameter of the pilot is 20.95 mm;
• Number of fastening pins - 4 pcs.;
• The height of the mounting pin is 10 mm;
• The outer diameter of the mounting stud is 9.85 mm;
• The radius from the center of the pilot to the center of the mounting hole is 115 mm;
• The distance between the centers of the mounting studs is 162 mm;

Tags: FNK6-19-100B FNK619100B
