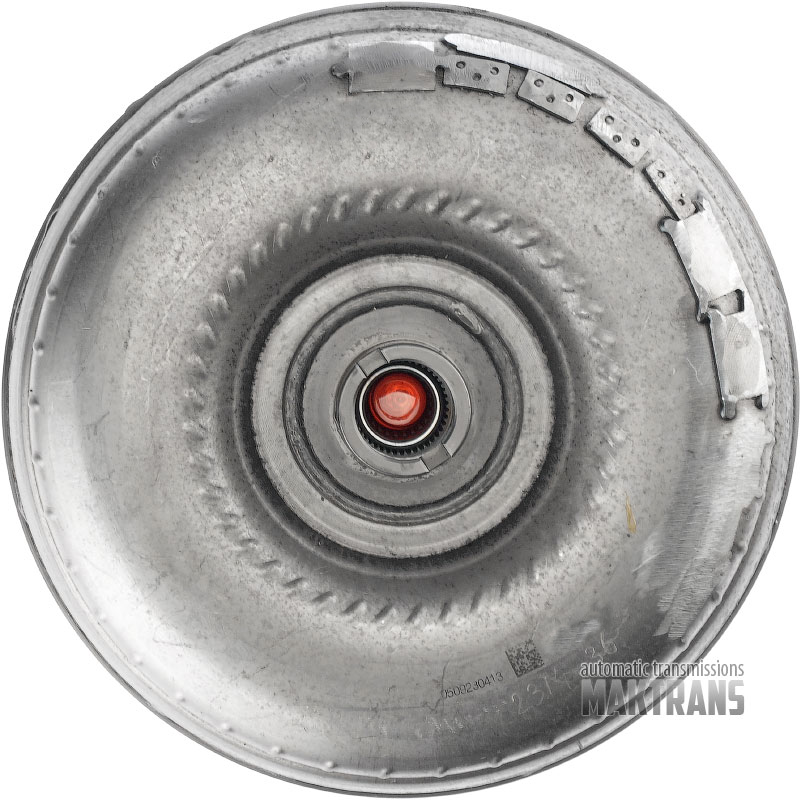

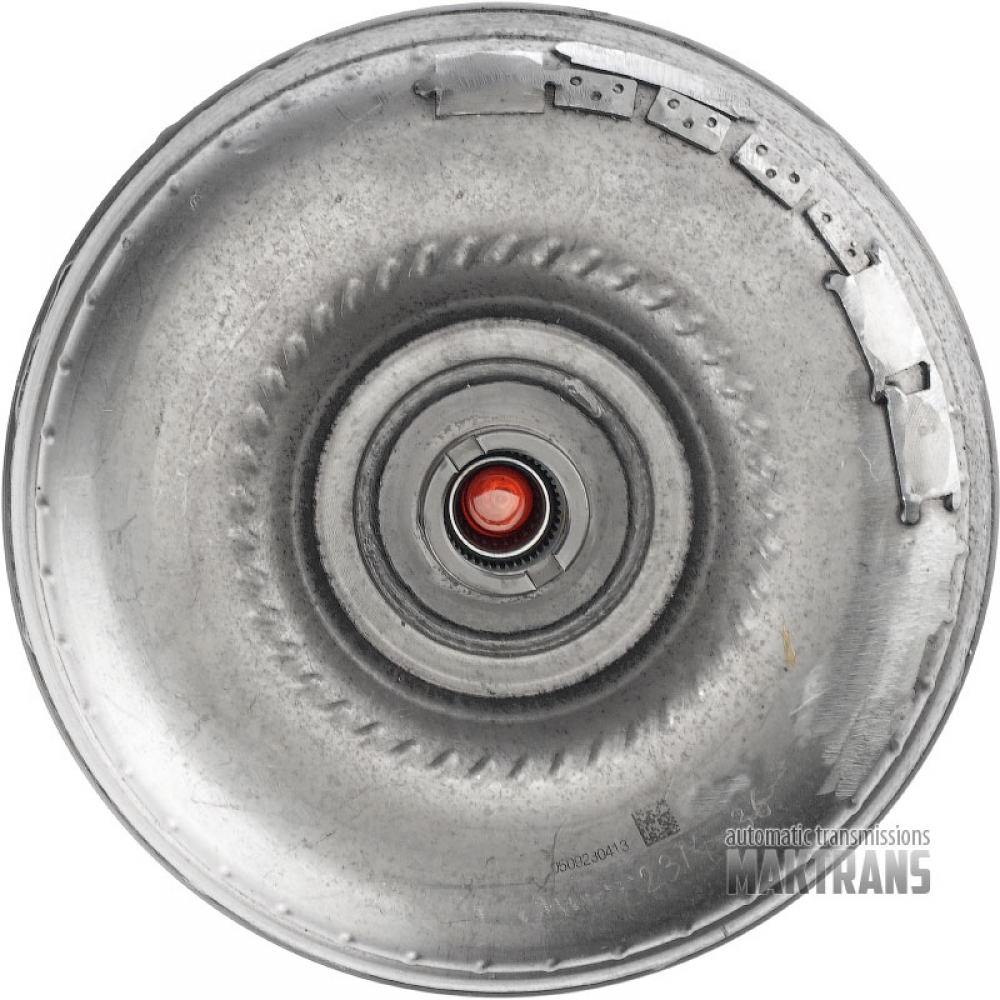

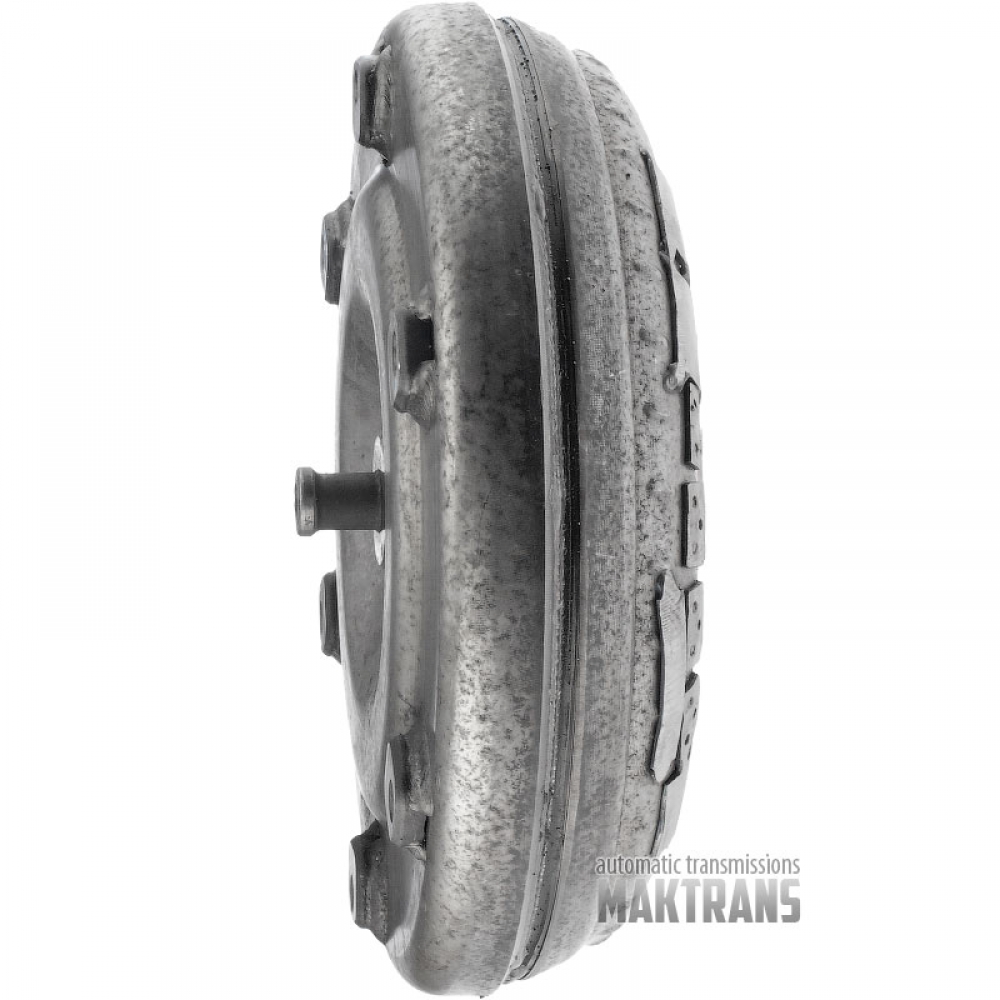

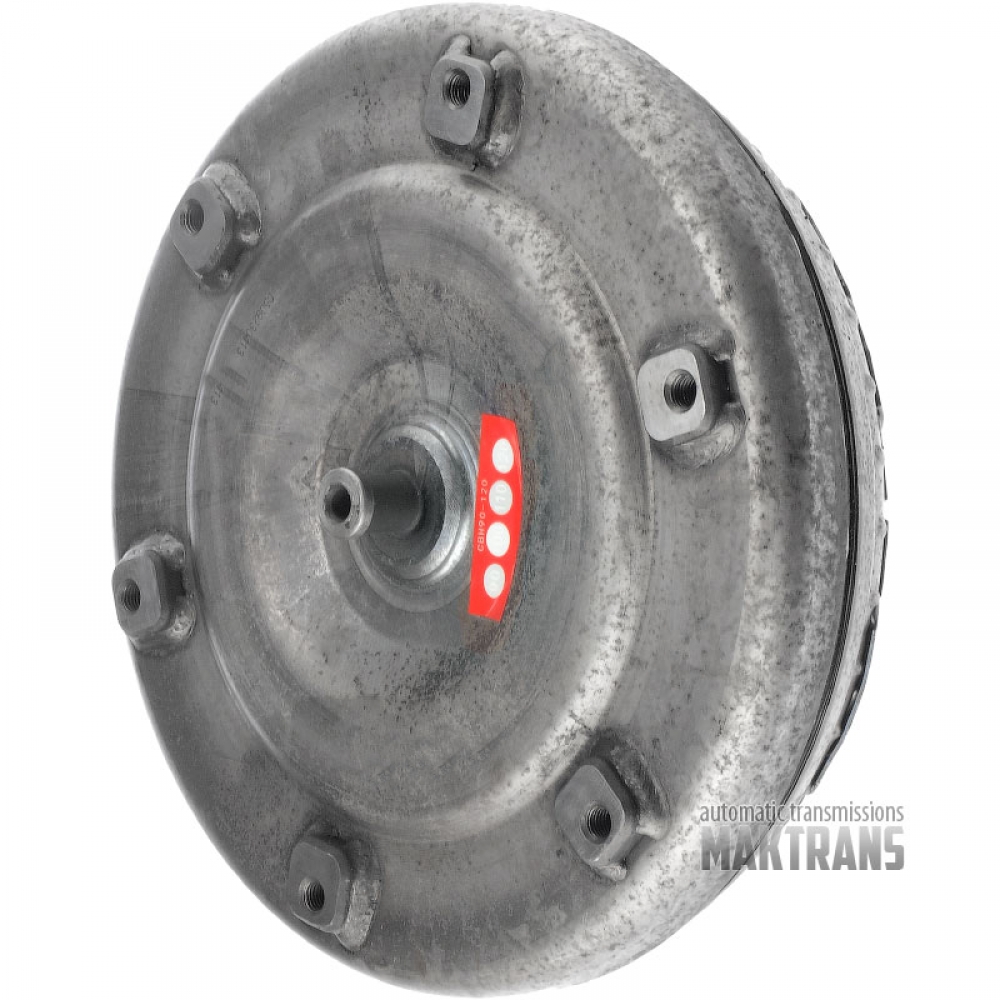

Refurbished Aisin Warner TF80-SC torque converter - 70A130

• Total height - 99 mm.
• The height of the torque converter from the bottom to the top cover is 40.30 mm.
• The outer diameter of the torque converter is 282 mm.

Torque converter neck:

• Neck height - 33.90 mm.
• Neck diameter - 46.90 mm.

Rear cover of the torque converter:

• Radius (from the center of the pilot to the center of the mounting stud) - 123.80 mm.
• Distance between centers of mounting holes - 110.80.60 mm.

Mounting holes:

• Mounting hole diameter: 8.20 mm.
• Number of mounting holes - 6

Pilot (in the center of the rear cover of the torque converter):

• Height - 24.50 mm.
• Pilot diameter - 21 mm.
