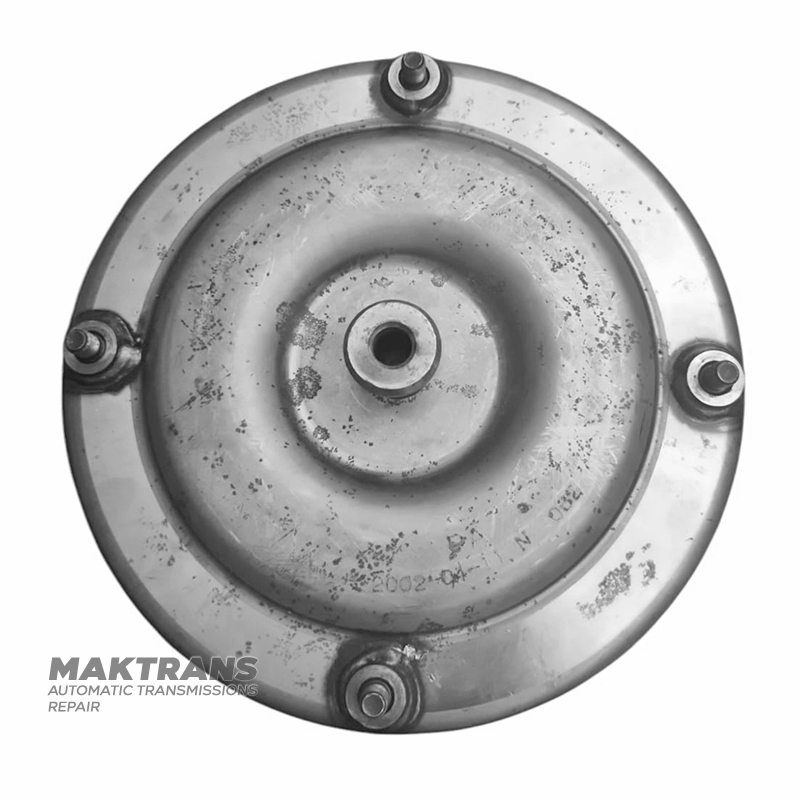

Torque converter (reconditioned) JATCO JF506 - pilot outer Ø 34.95 mm, (Land Rover Freelander)

• Total height - 140 mm;
• Outer body diameter - 174.10 mm;

Torque converter neck:

• Neck height - 39 mm;
• Outer diameter of the neck - 41.45 mm;
• Inner diameter of the neck - 35.25 mm;

Front cover of the torque converter:

• Number of mounting studs - 4 pcs.;
• The distance between the centers of the mounting studs is 170 mm;
• Radius from the center of the pilot to the center of the mounting stud - 93.65 mm;

Pilot:

• Overall height - 37 mm;
• Outer diameter - 34.95 mm;
