Main Specifications
Condition (used, new):
Renovated
Marking:
Z22
Spare part number(s):
FZ2219100
Warranty:
12 months
Available Options
| Stock Place: | Availability: | Qty: |
| Ukraine | 1 pcs. |
  |
- Product overview
- Shipping & Payment
- Questions - Answers (0)

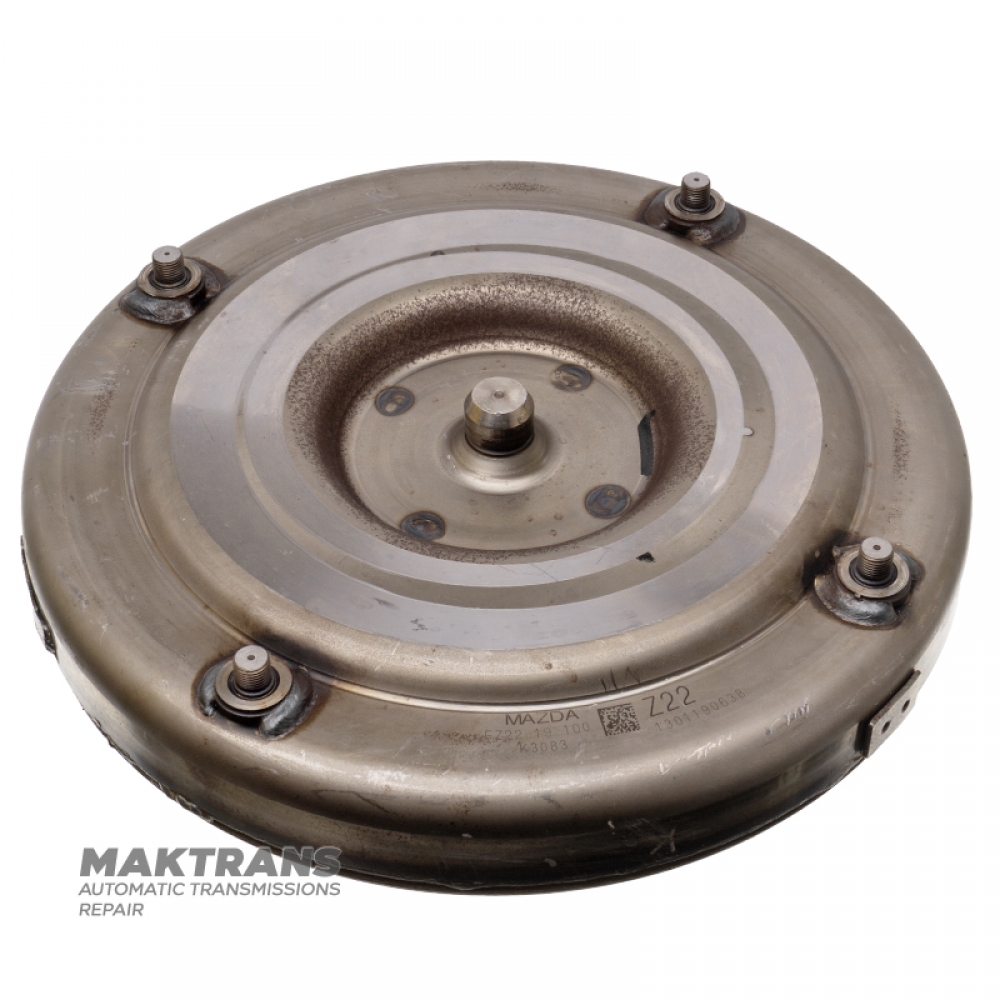

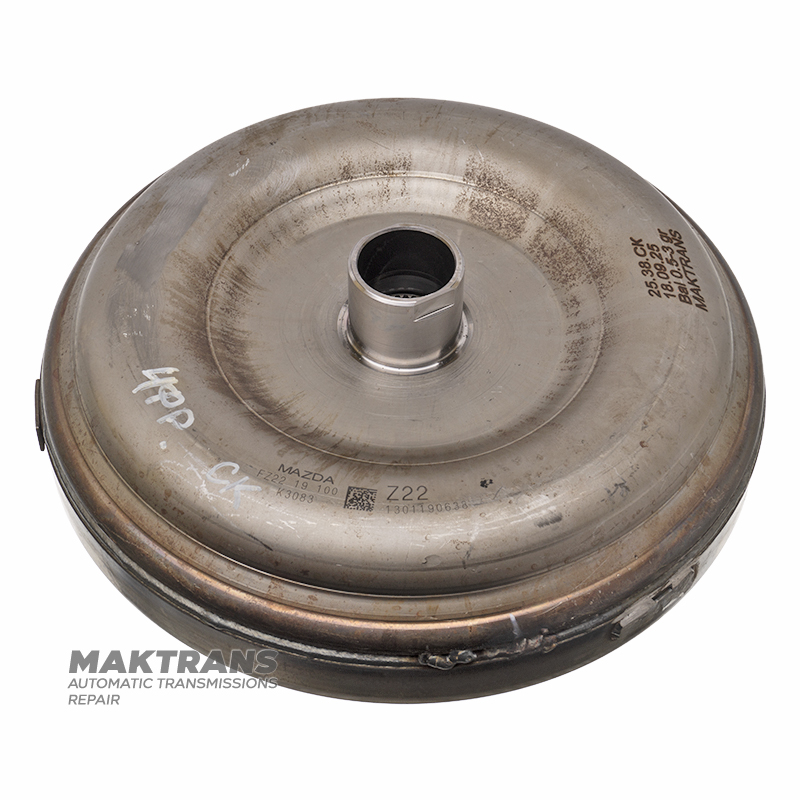

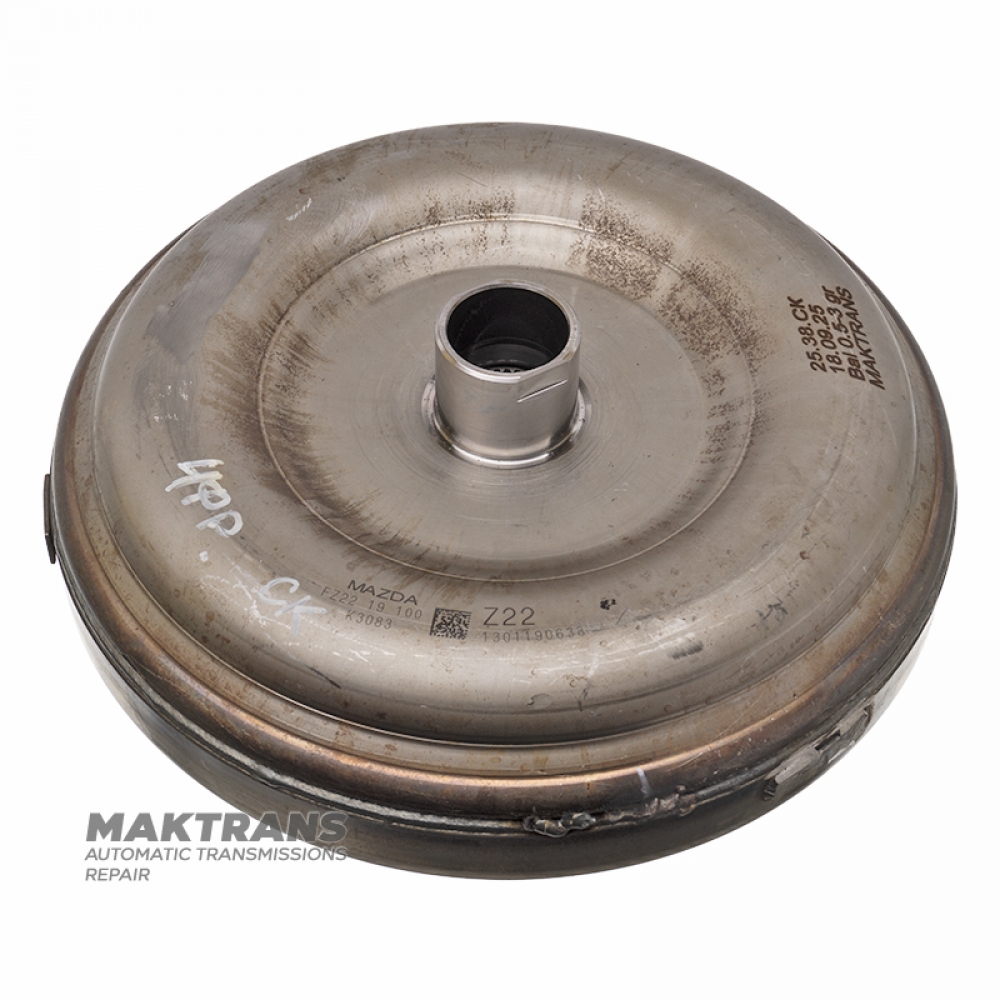

- Overall height - 102 mm;
- Neck height - 35 mm;
- The outer diameter of the neck is 44 mm.;
- Outer body diameter - 286.10 mm;
- Pilot height - 22 mm;
- Pilot outer diameter - 21 mm;
- Number of mounting studs - 4 pcs.;
- The outer diameter of the mounting stud is 9.85 mm;
- Radius from the center of the pilot to the center of the mounting hole - 123 mm;
- Distance between centers of mounting holes - 174 mm;

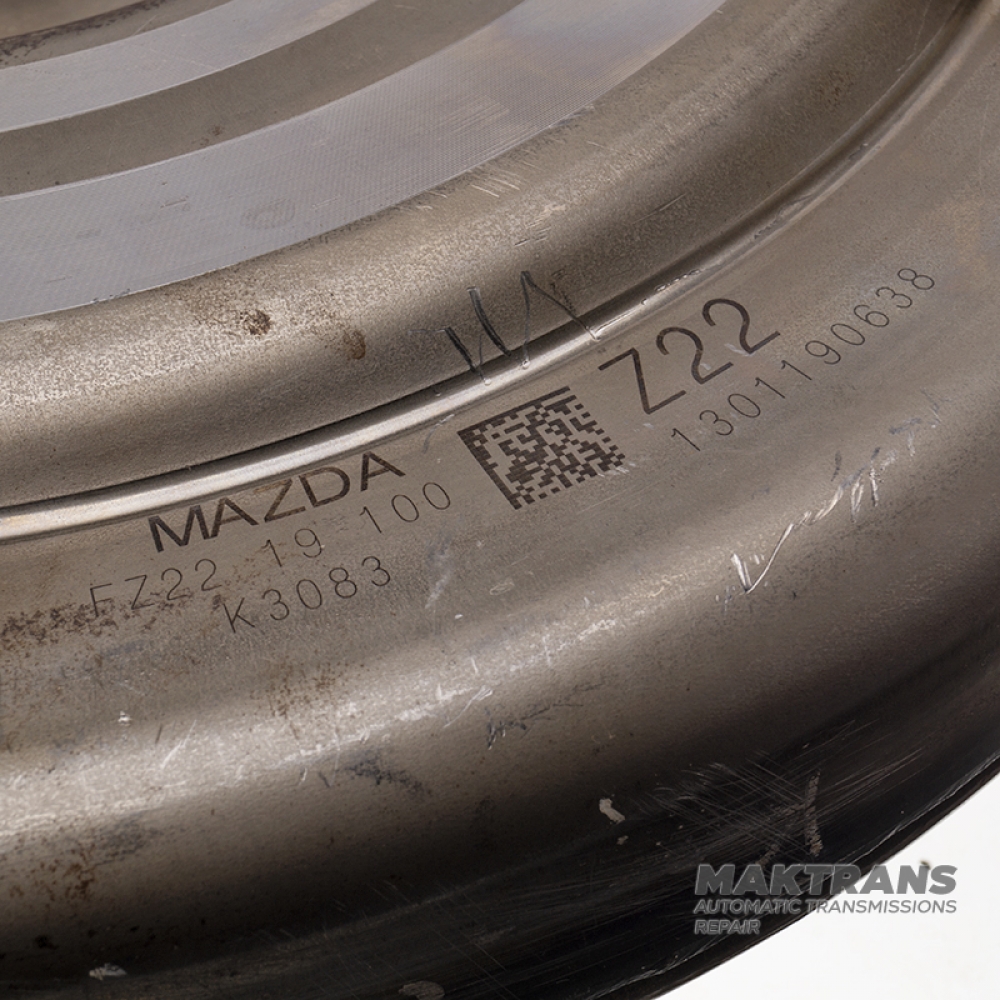

- Torque converter marking - Z22, FZ2219100;
