Main Specifications
Condition (used, new):
used, unrestored
Marking:

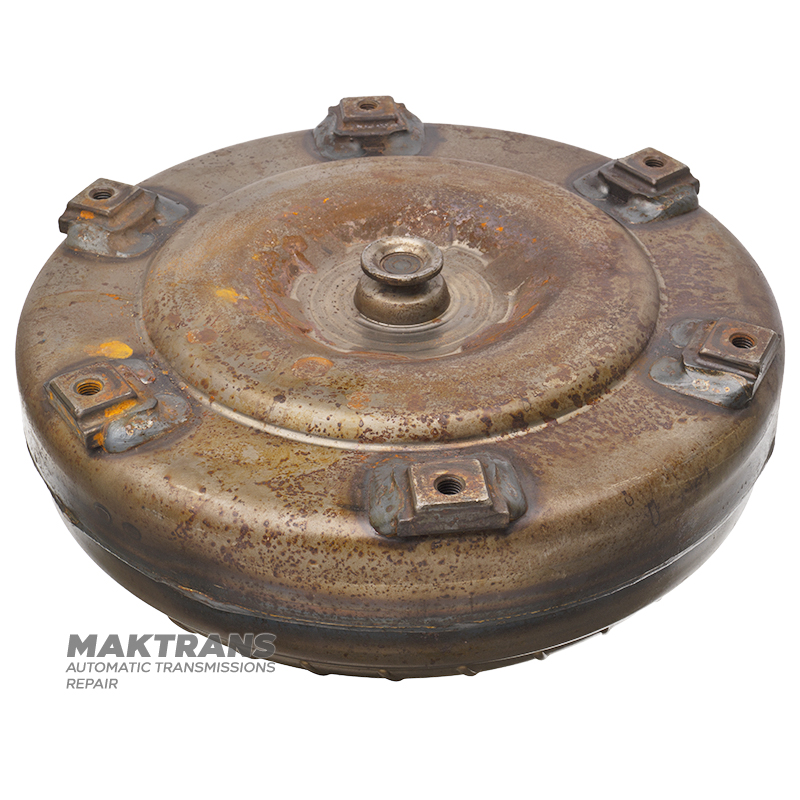

Removed from transmission marked 35010-0С081
Spare part number(s):
3200071020
Available Options
Buy Refurbished
| Stock Place: | Availability: | Qty: |
| Ukraine | 2 pcs. |
  |
- Product overview
- Shipping & Payment
- Questions - Answers (0)
- Overall height - 124 mm;
- Neck height - 40 mm;
- The outer diameter of the neck is 38 mm.;
- Outer body diameter - 301.15 mm;
- Pilot height - 20 mm;
- Pilot outer diameter - 32 mm;
- Number of mounting holes - 6 pcs.;
- The height of the mounting bracket is 12 mm;
- Inner diameter of mounting hole: 7.75mm;
- Radius from the center of the pilot to the center of the mounting hole - 133 mm;
- Distance between centers of mounting holes - 133 mm;
- Torque converter marking - removed from transmission with marking 35010-0С081;
