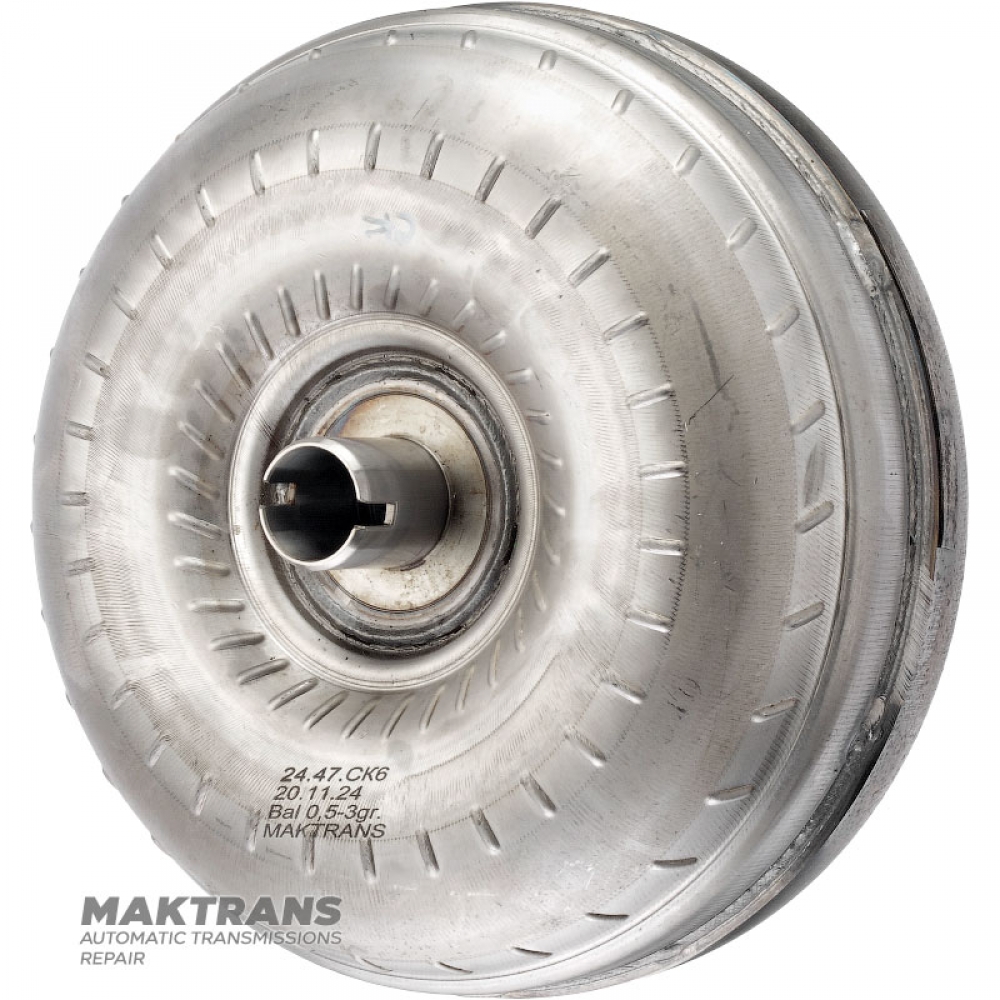

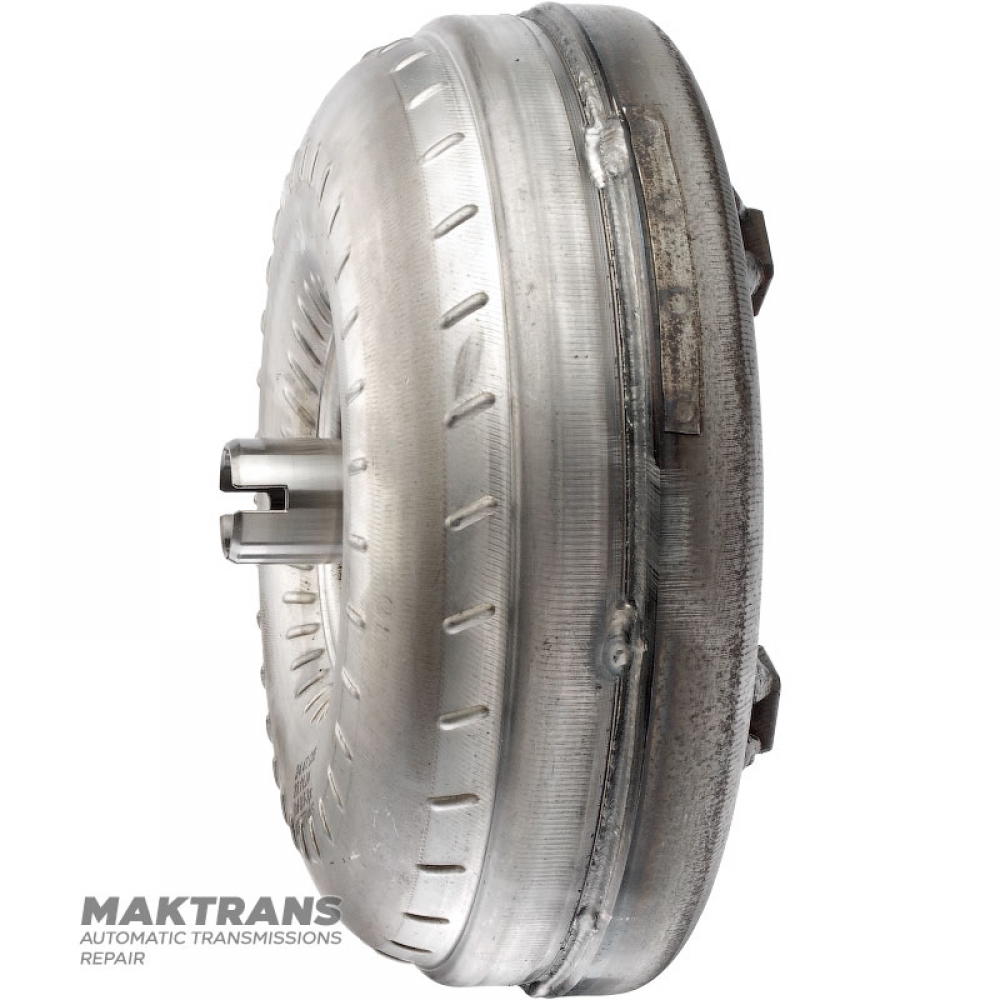

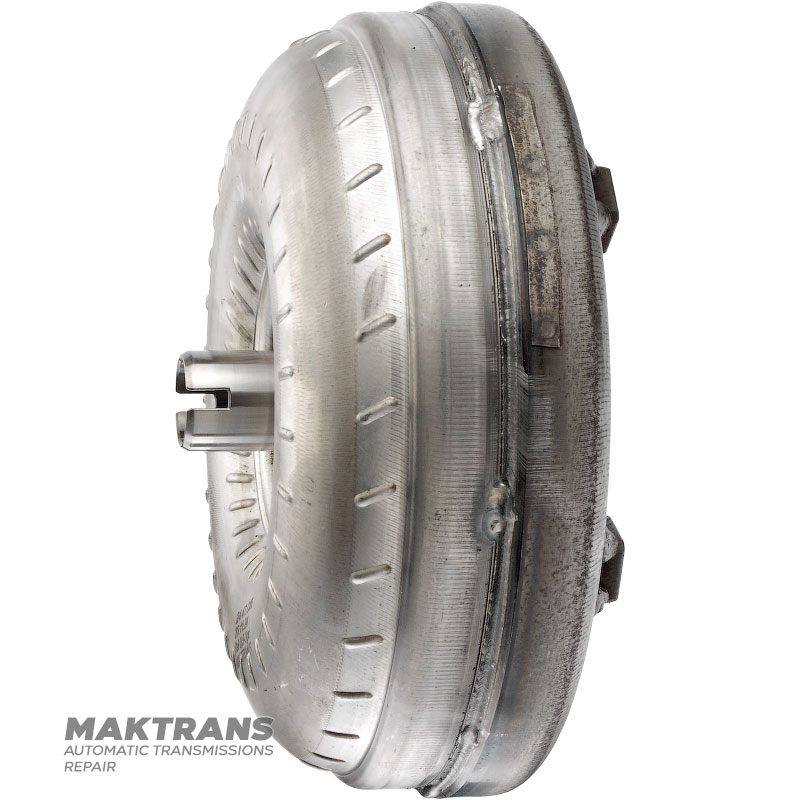

Torque converter TOYOTA / LEXUS A340E A340F A343 3200060120, 3200034010 — (outer Ø of housing 301.20 mm, pilot height 37 mm)

• Overall height - 159 mm;
• Outer body diameter - 301.20 mm;
• Neck height - 45 mm;
• Outer diameter of the neck - 38.05 mm;
• Pilot height - 37 mm;
• Pilot outer diameter - 31.95 mm / 20.90 mm;
• Number of mounting holes - 6 pcs.;
• The inner diameter of the mounting hole is 7.50 mm;
• The radius from the center of the pilot to the center of the mounting hole is 120 mm;
• The distance (chord) between the centers of the mounting holes is 120 mm;

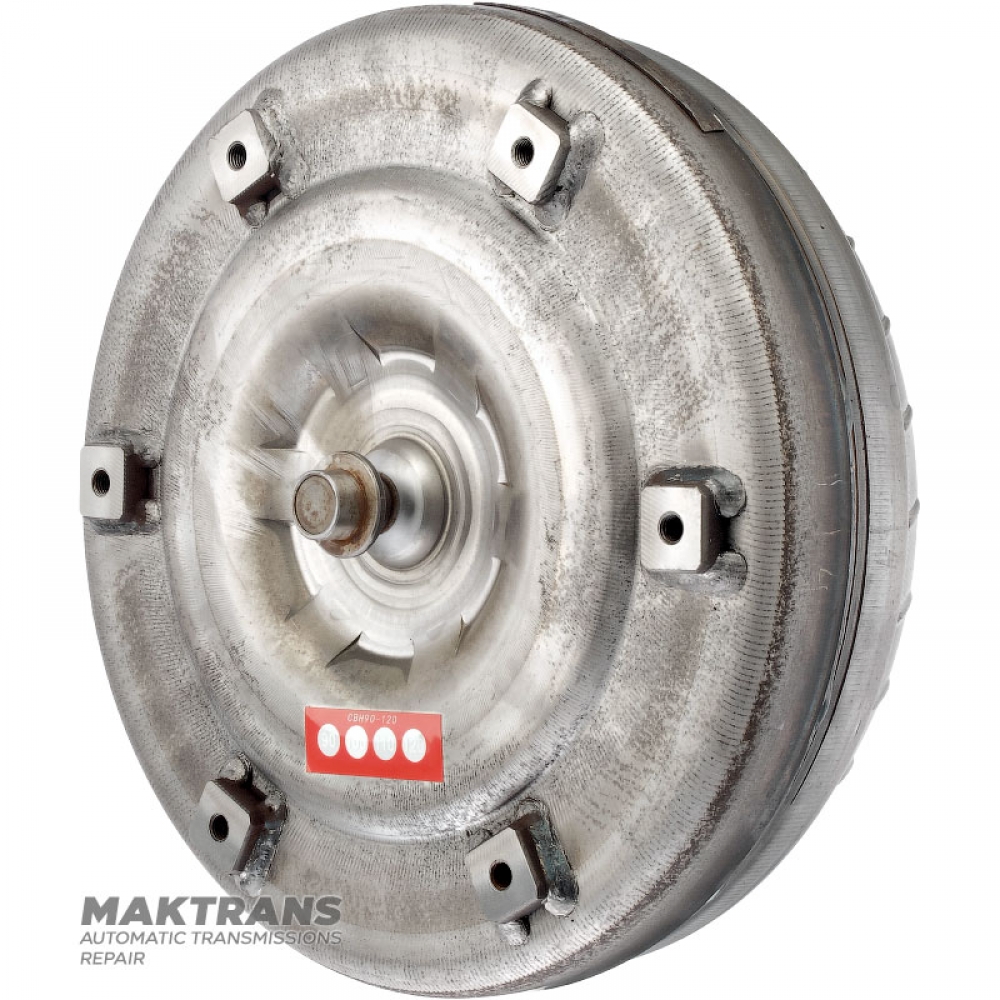

Pilot dimensions on the front cover.

The torque converter is usually marked 010 (green) on the pump wheel.

Tags: 32000-04010, 32000-0C010, 32000-0C060, 32000-34010, 32000-35150, 32000-35210, 32000-35230, 32000-60120, 32000-60280, 32000-60340, 32000-60360
