Main Specifications
Condition (used, new):
used, untested

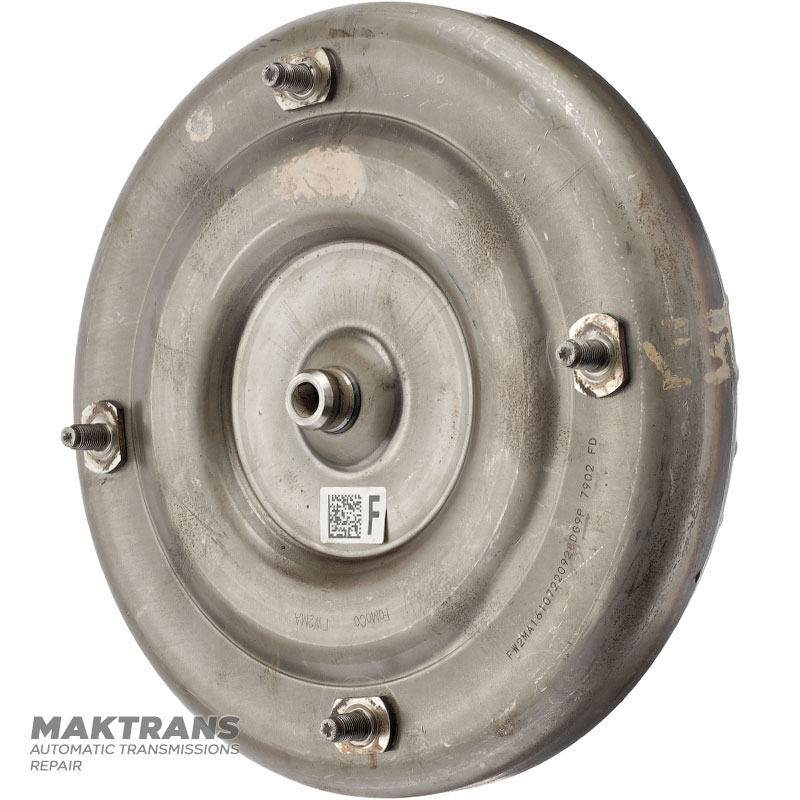

Marking:
F
Spare part number(s):
FW2MA, C0605133-D, DG9P-7902-FD
Available Options
| Stock Place: | Availability: | Qty: |
| Ukraine | 18 pcs. |
  |
- Product overview
- Shipping & Payment
- Questions - Answers (0)

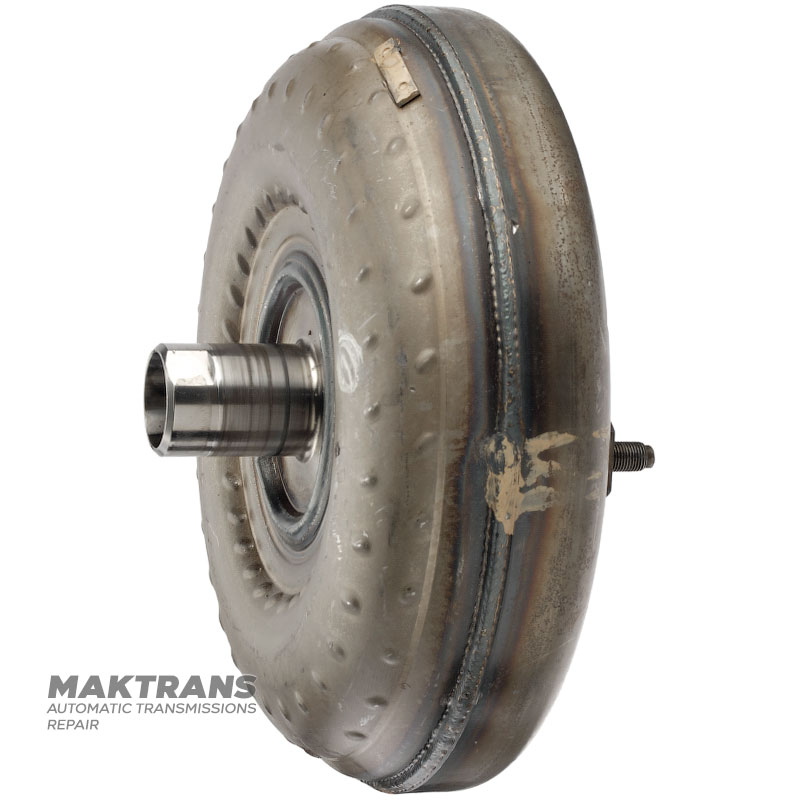

- Overall height - 136 mm;
- Neck height - 54 mm;
- Outer neck diameter - 39.65 mm;
- Outer body diameter - 278 mm;
- Pilot height - 24 mm;
- Pilot outer diameter - 21.05 mm;
- Number of mounting studs - 4 pcs.;
- The total height of the mounting stud is 21 mm;
- The outer diameter of the mounting stud is 9.80 mm;
- The radius from the center of the pilot to the center of the mounting hole is 113 mm;
- The distance between the centers of the mounting holes is 160 mm;
