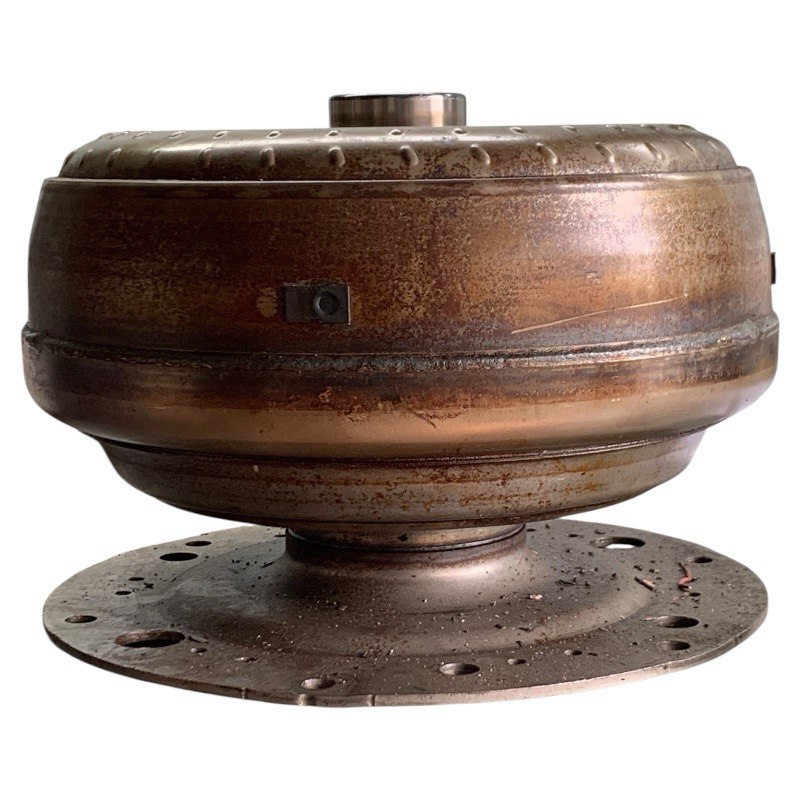

Torque converter (used, unrepaired) ZF 8HP65A — 1103322037, marking Q177, 0D5 323 571 E, 0D5 323 571 A, 9A7 323 571, 0D5 323 571 E, 0D5 323 571 A

Worldwide Shipping 🌎

Product Code:

1103322037-Q177

Product model copied to clipboard

Brand

Availability: 2

Weight (kg): 19

$350.00

Shipping Icon Shipping to United States from $288.07

Main Specifications

Condition (used, new): used, unrepaired

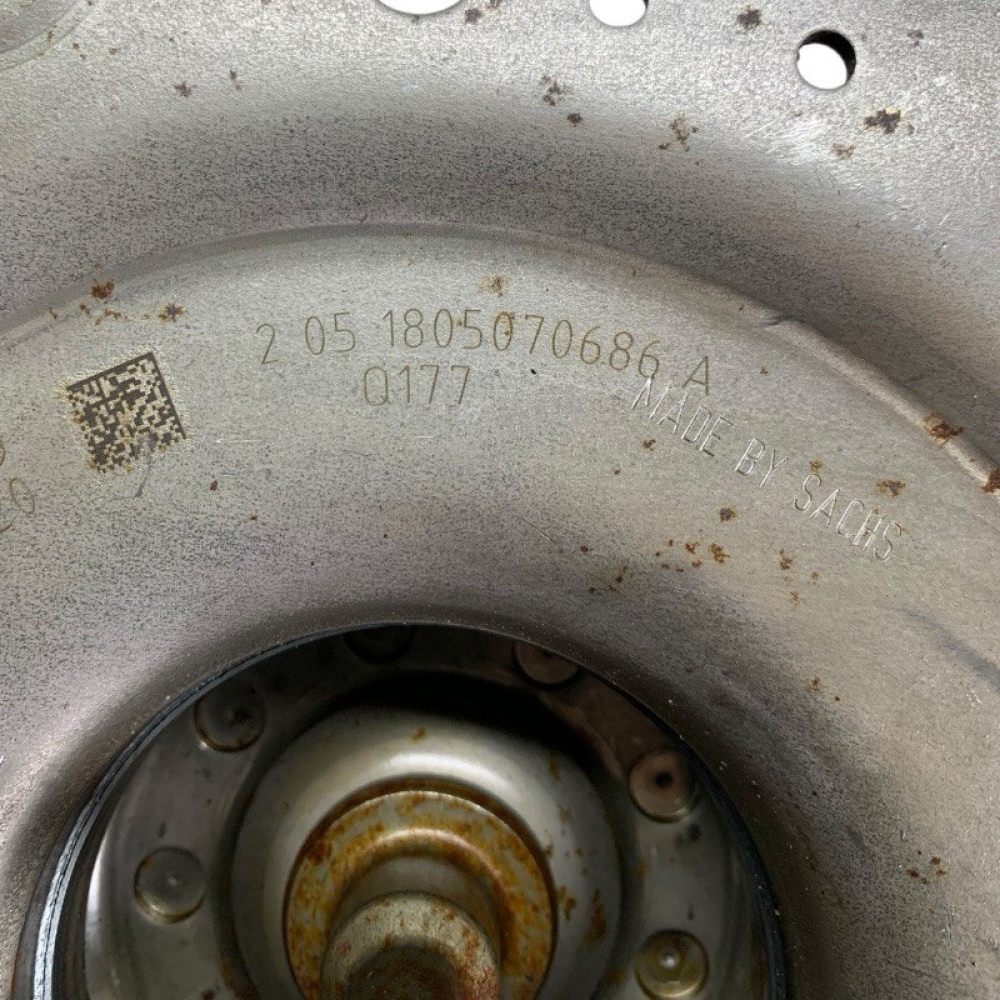

Marking: Q177

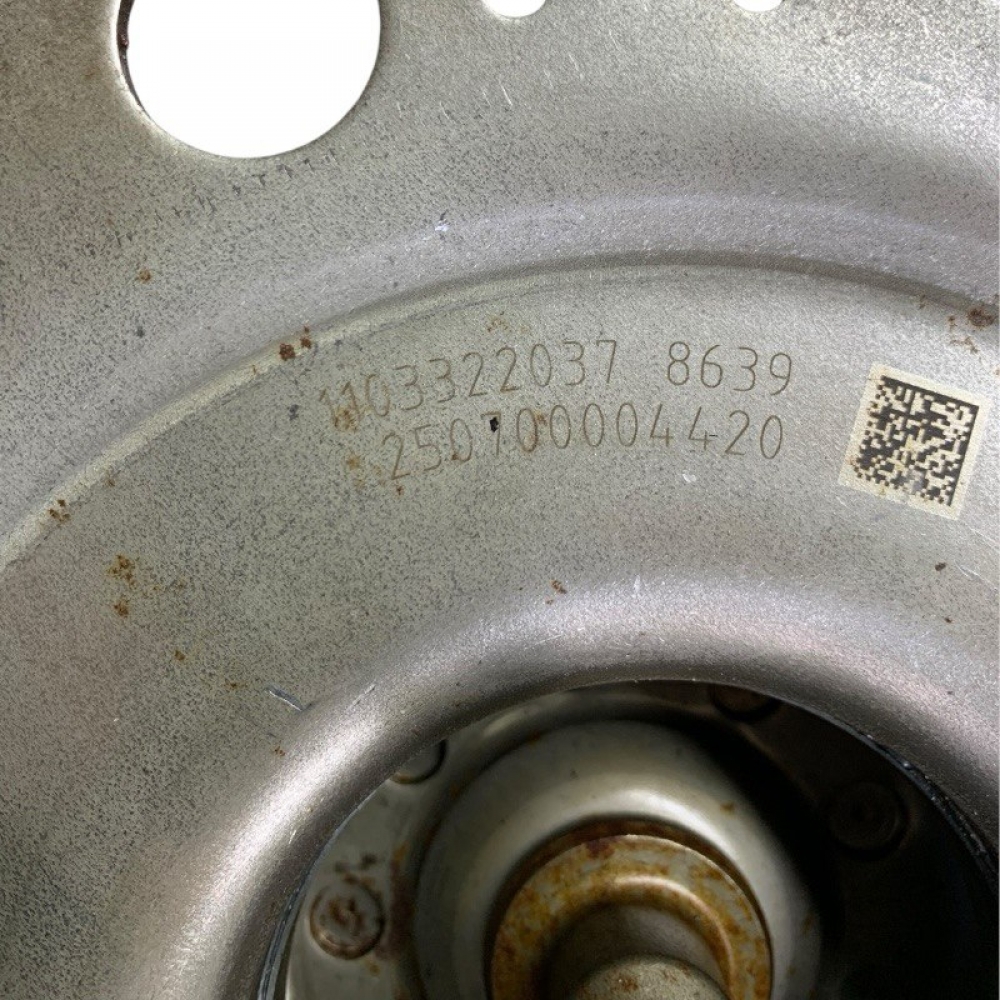

Spare part number(s): 1103322037

If you order more than 1 pcs - shipping time will be longer at few days

Qty:

Total height - 200 mm;
Neck height - 39 mm;
Outer neck diameter - 53 mm;
Outer body diameter - 288.15 mm;
Pilot height - 66 mm;
Pilot outer diameter - 21 mm;
Mounting plate outer diameter: 282.85 mm;
Number of mounting holes - 6 pcs.;
Inner diameter of mounting holes: 11.30 mm;
Radius from the center of the pilot to the center of the mounting hole - 128 mm;
Distance between centers of mounting holes - 128 mm;

Comparable OE Numbers:

Torque converter fits to transmissions with codes:

3.0L TDI

TFSI
