Main Specifications
Condition (used, new):
used, untested

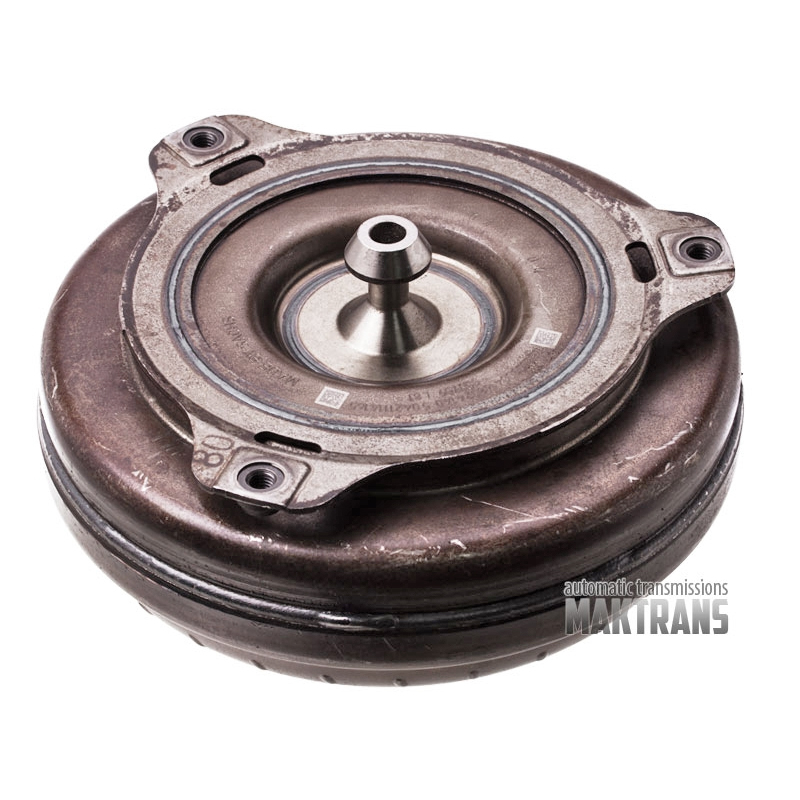

Marking:
209 303
- Product overview
- Shipping & Payment
- Questions - Answers (0)
- Gearbox works better with (1)
- Overall height - 168 mm;
- Outer case diameter - 268.75 mm;
- Neck height - 56 mm;
- Neck outer diameter - 45 mm / 44.40 mm;
- Pilot height - 42 mm;
- Pilot outer diameter - 32 mm;
- Number of mounting holes - 3 pcs.;
- The inner diameter of the mounting hole is 8.45 mm;
- Radius from the center of the pilot to the center of the mounting pin - 116 mm;
- Distance between centers of mounting pins - 202 mm;
