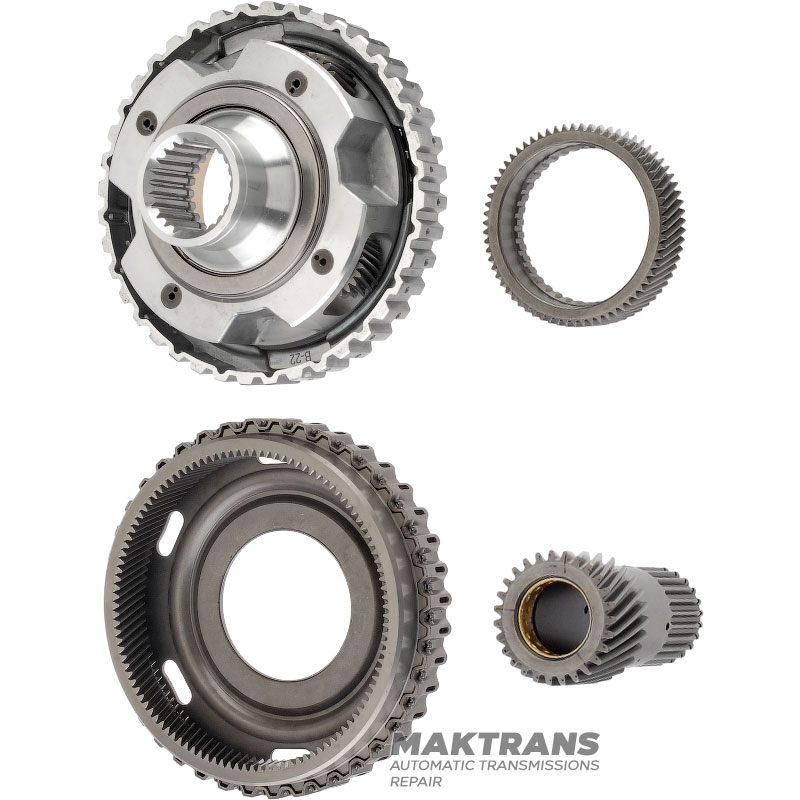

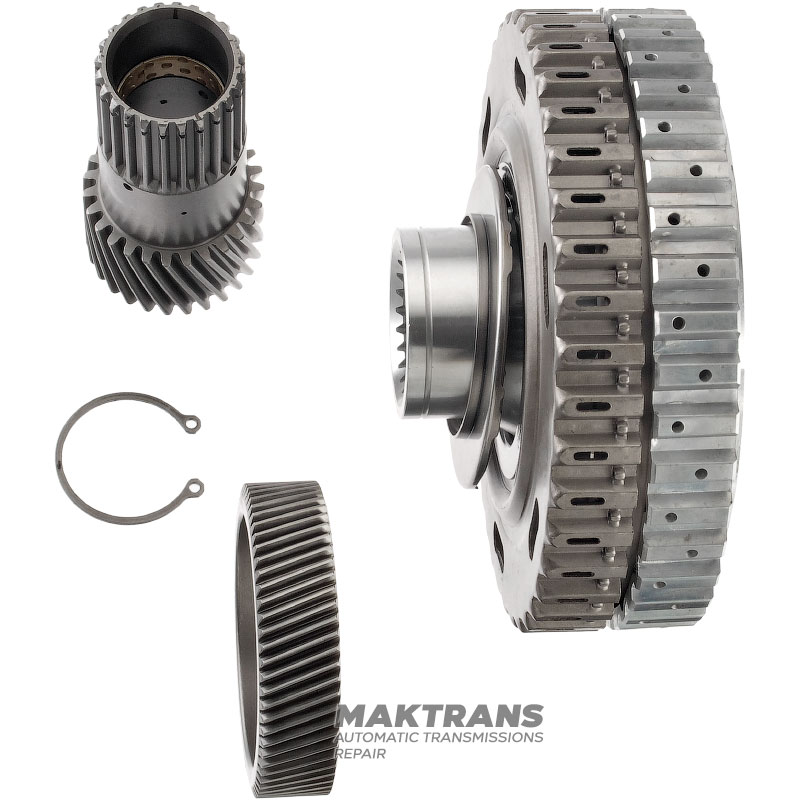

TOYOTA/LEXUS U760E Front Planetary Gear Kit - Rear Planetary Gear Sun Gear Length 93mm

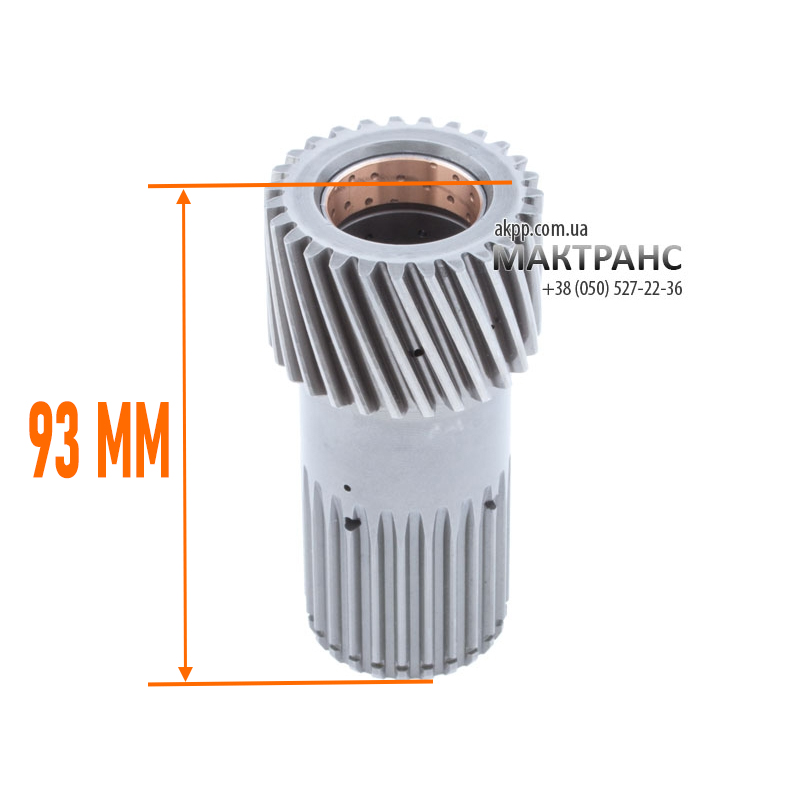

Rear Sun Gear:

• Overall length - 93 mm;
• Inner diameter of the sleeve - 25.60 mm;
• Gear width - 30.45 mm;
• Number of teeth - 27 pcs.;
• Gear outer diameter - 46.80 mm;
• Number of splines on the neck - 24 pcs.;
• Outer diameter of spline part - 36.80 mm;

Front planetary gear sun gear:

• Gear width - 19.15 mm;
• Number of teeth - 66 pcs.;
• Gear outer diameter - 75.75 mm;
• Number of teeth on the inner side - 39 pcs.;

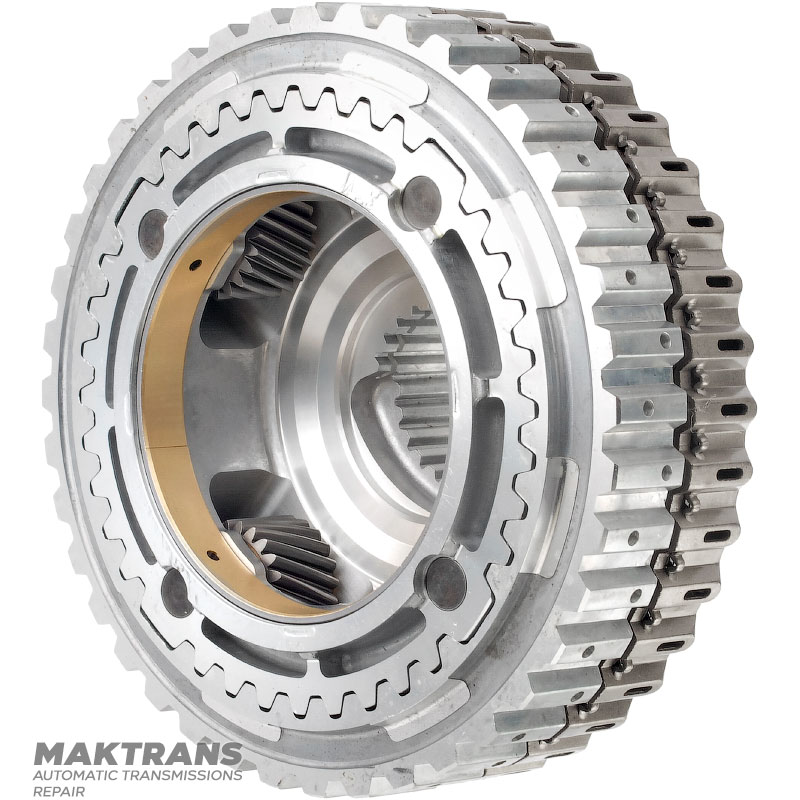

Front planetary gear:

• Overall height - 76 mm;
• Number of satellites - 4 pcs.;
• Hub outer diameter - 150.75 mm;
• Number of splines on the inner side of the neck - 24 pcs.;

Ring gear:

• Overall height - 34 mm;
• Hub outer diameter - 150.40 mm;
• Number of teeth on the inner side - 110 pcs.;
