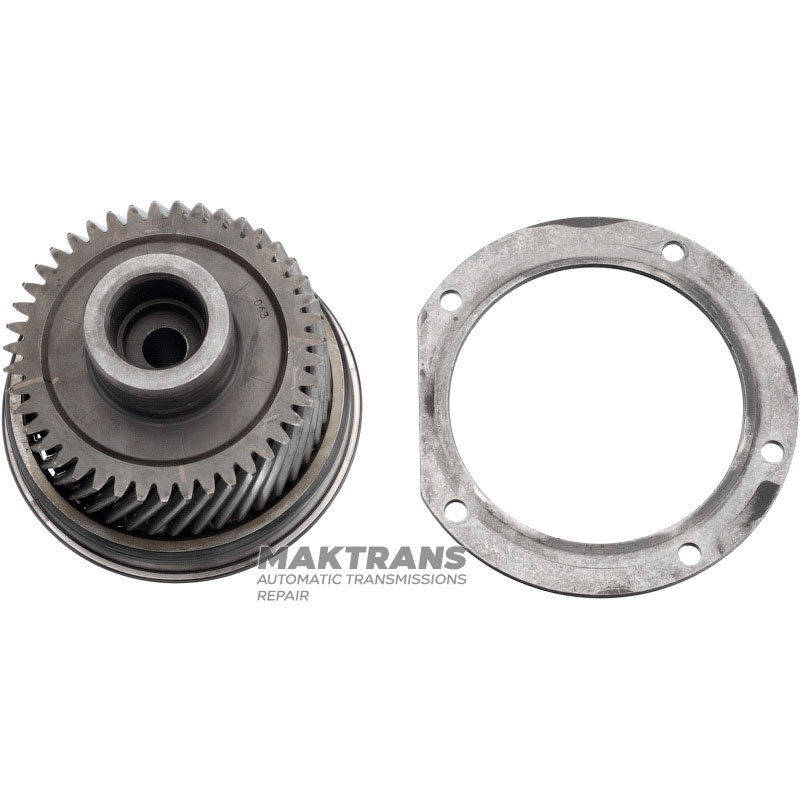

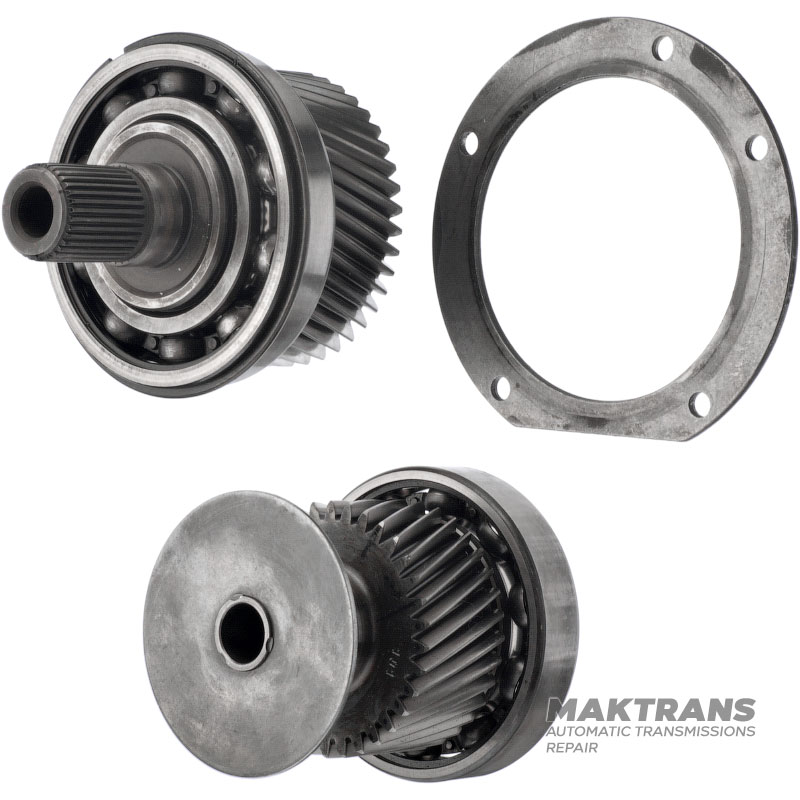

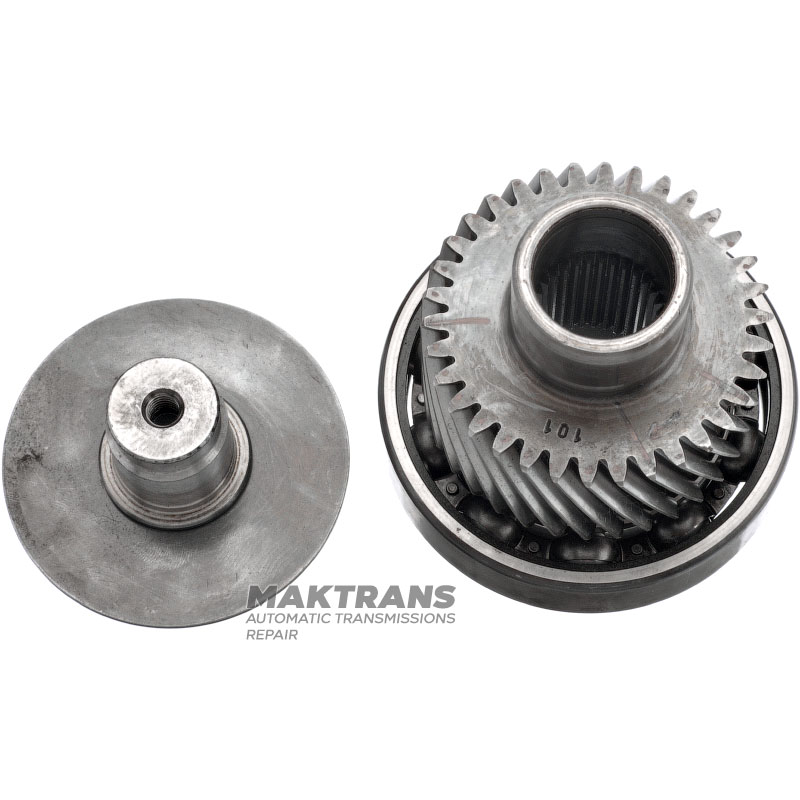

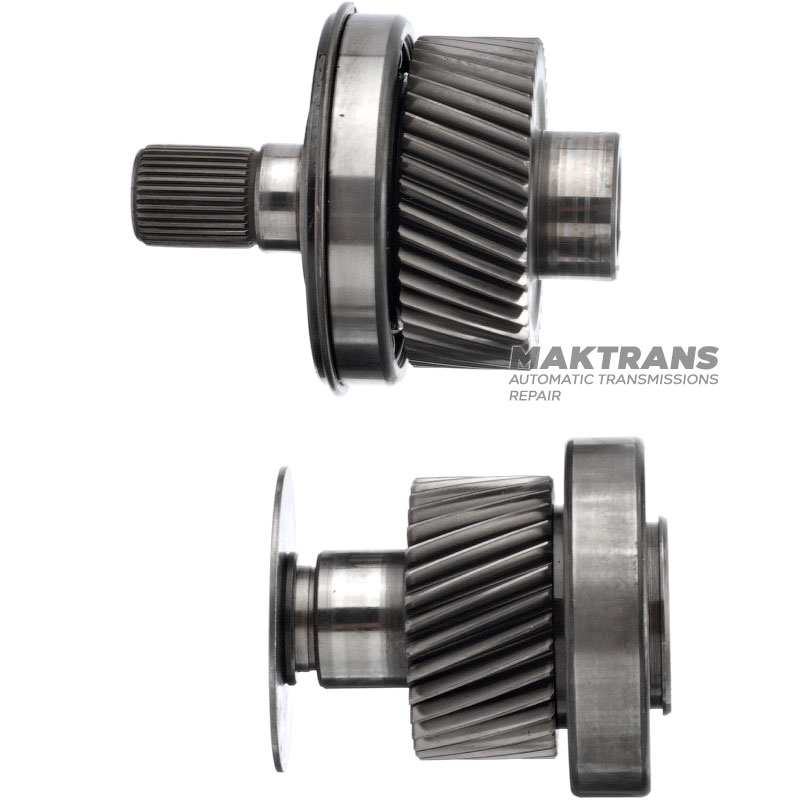

Transfer case gear set ZF 5HP19 AUDI AWD – drive gear 43 teeth (outer Ø 89 mm) / driven gear 34 teeth (outer Ø 71 mm)

Drive gear:

• Total height - 130 mm;
• Number of splines on the shaft - 34 pcs.;
• The outer diameter of the spline part is 27.75 mm;
• Number of teeth on the gear - 43 pcs.;
• Gear outer diameter - 89 mm;
• Gear width - 33 mm;
• Bearing marking - SKF 6211N/C3;
• The outer diameter of the bearing is 100 mm;

Driven gear:

• Total height - 88 mm;
• The number of slots on the inside is 31 pcs.;
• The outer diameter of the neck is 35 mm;
• Number of teeth on the gear - 35 pcs.;
• Gear outer diameter - 71 mm;
• Bearing marking - SKF 6210 / C3;
• The outer diameter of the bearing is 90 mm;
