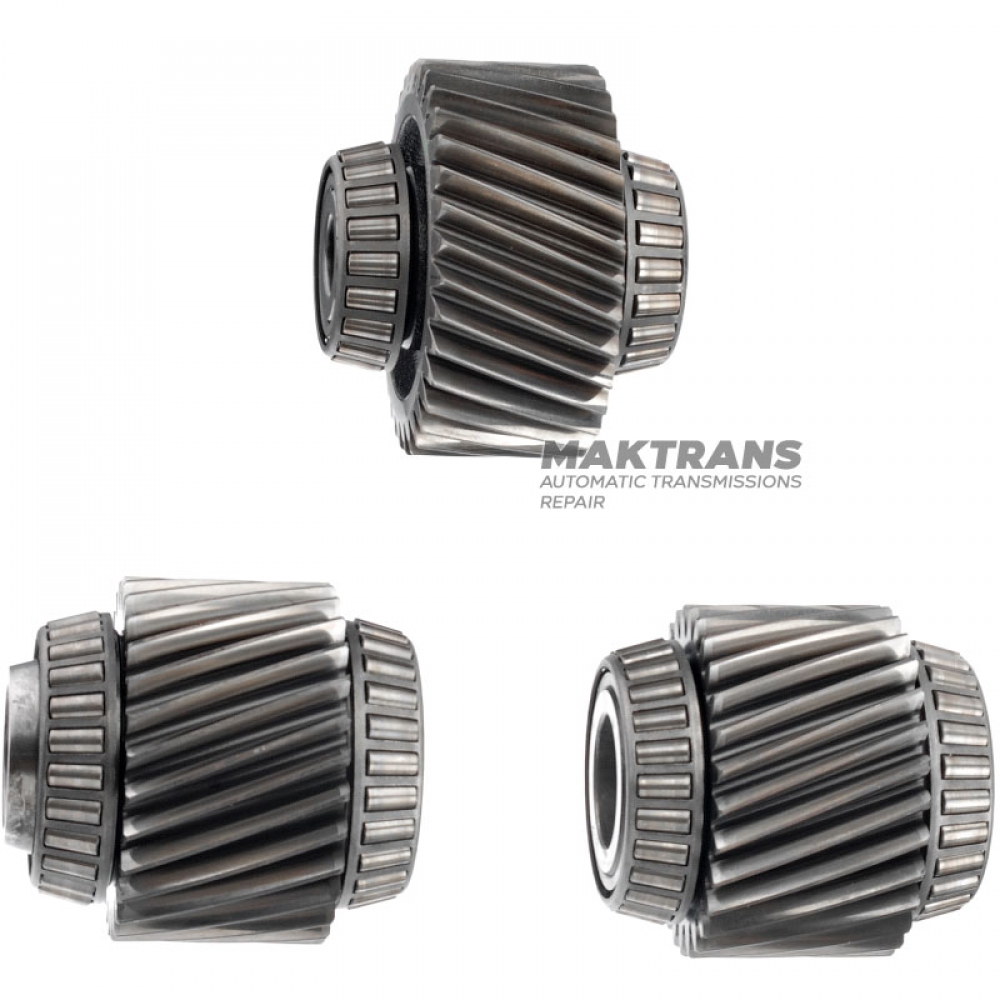

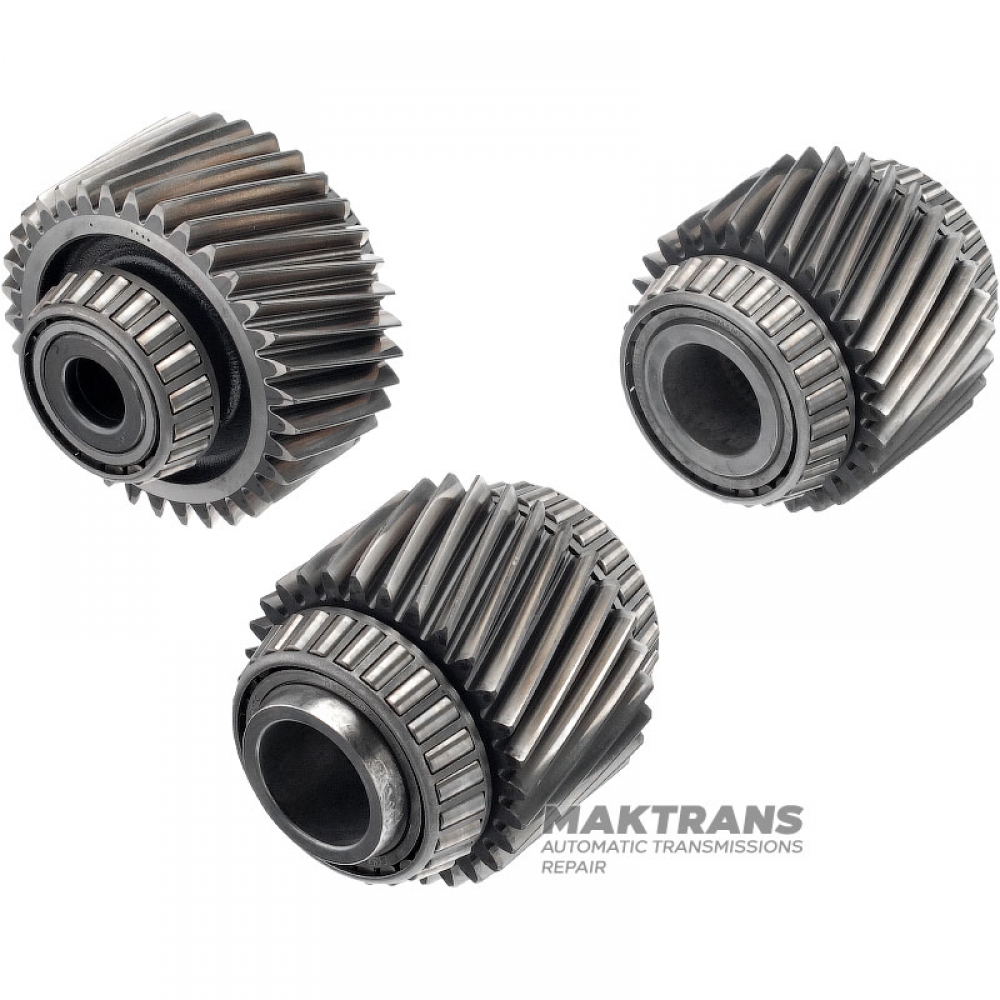

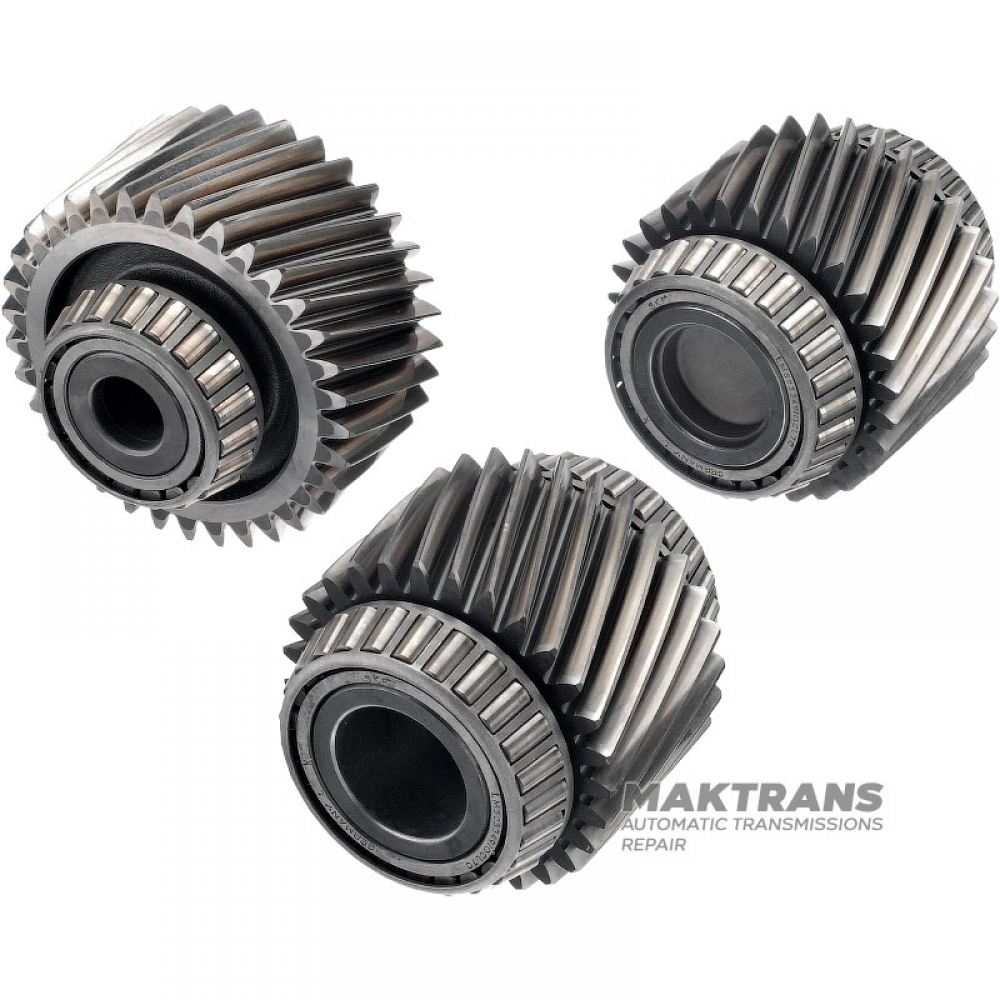

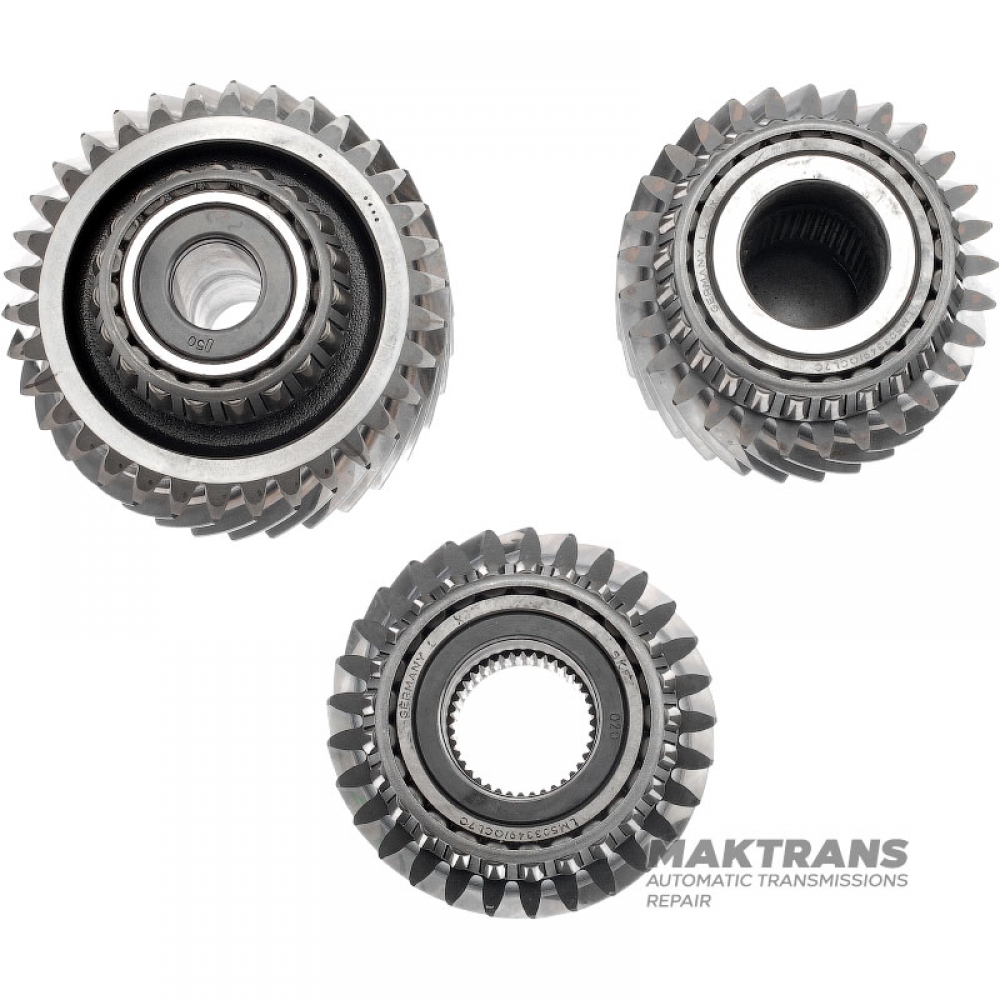

Transfer case helical gear set ZF 5HP19 FEV – 34 teeth (outer Ø 102.20 mm), 29 teeth (outer Ø 86.15 mm), 29 teeth (outer Ø 86.20 mm)

Gear 1:

• Total height - 95 mm;
• The number of slots on the inside is 39 pcs.;;
• Number of teeth on the gear - 29 pcs.;
• Outer diameter - 86.15 mm;
• Gear width - 51.70 pcs.;

Gear 2:

• Total height - 89 mm;
• The number of splines on the inside is 37 pcs.;
• Number of teeth on the gear - 29 pcs.;
• Gear outer diameter - 86.20 mm;
• Gear width - 50.70 mm;

Gear 3:

• Total height - 89 mm;
• Number of teeth on the gear - 34 pcs.;
• Gear outer diameter - 102.20 mm;
• Gear width - 48.45 mm;
