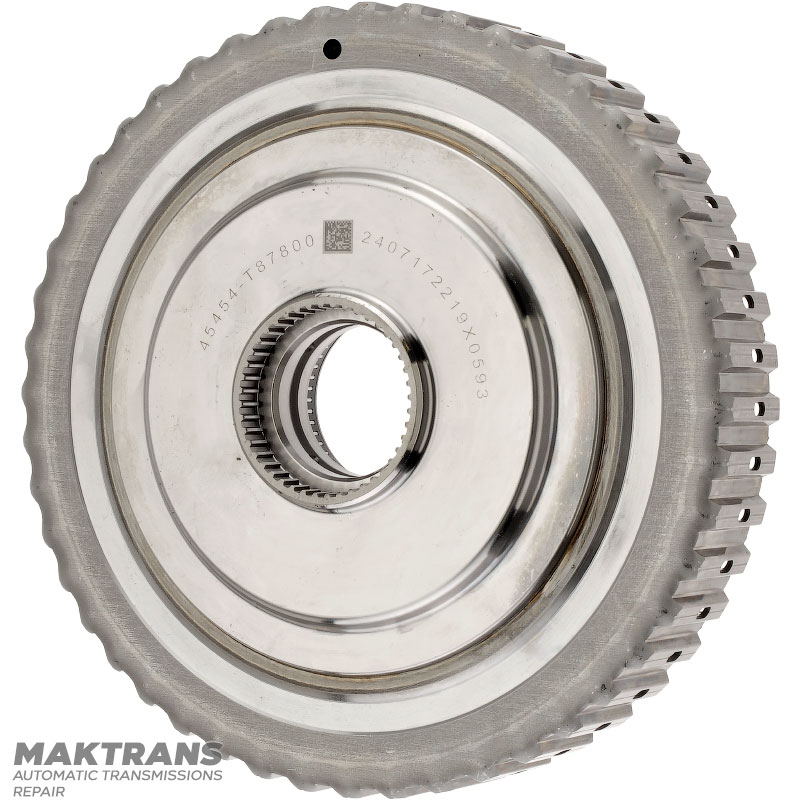

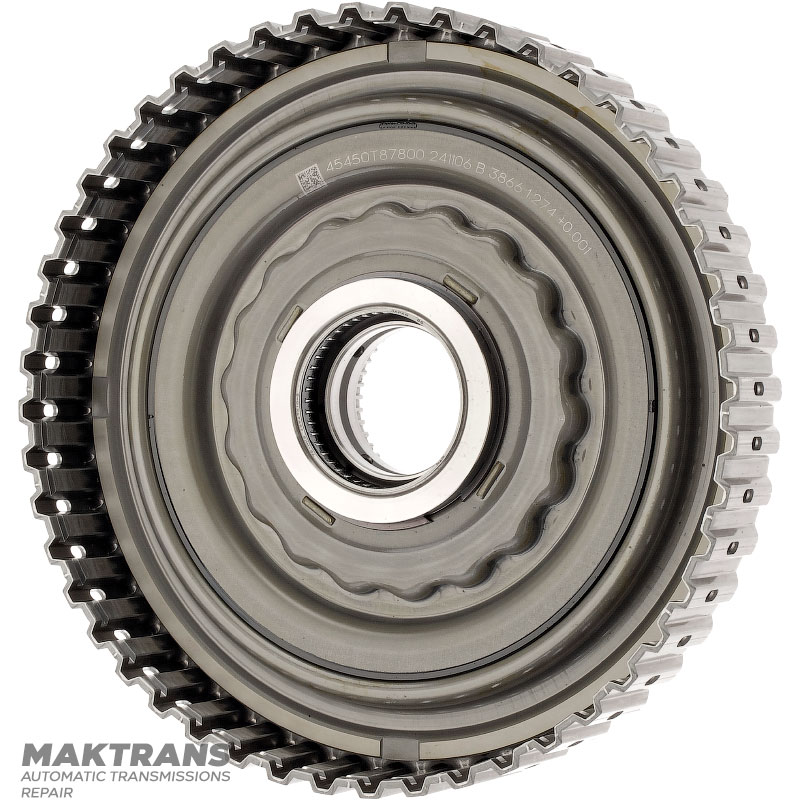

Underdrive Clutch Drum VAG 09H, AQ451 (8-speed transmission) — 45450T87800, 45454T87800, 5 friction discs

Drum:

• Overall height - 48 mm;
• Drum outer diameter - 193.35 mm;
• Number of splines on the inner side - 44 pcs.;
• Inner diameter under hub - 37.15 mm;
• Height from piston to retaining ring - 19 mm;

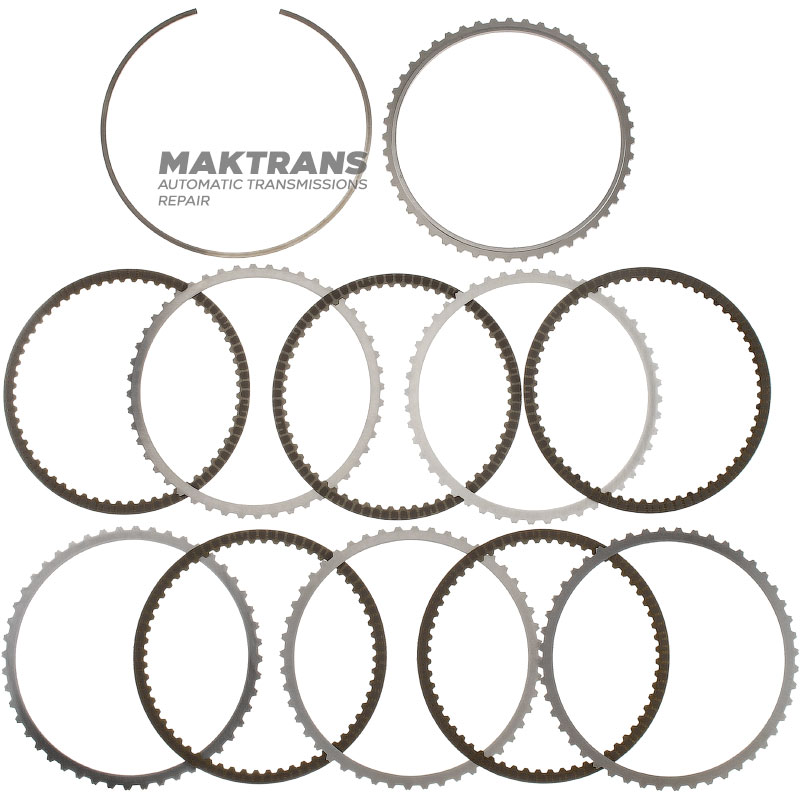

Set of steel and friction discs:

• The total thickness of the set is 18.70 mm;

Support disk:

• Thickness - 5 mm / (3.50 mm);
• Inner diameter - 167.15 mm;
• Number of teeth - 48 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.60 mm;
• Outer diameter - 181.70 mm;
• Number of teeth - 60 pcs.;
• Number of discs in the set - 5 pcs.;

Steel disk:

• Thickness - 1.20 mm;
• Inner diameter - 167.55 mm;
• Number of teeth - 48 pcs.;
• Number of discs in the set - 4 pcs.;

Steel disk:

• Thickness - 2.50 mm;
• Inner diameter - 167.55 mm;
• Number of teeth - 48 pcs.;
• Number of discs in the set - 1 pc.;
