UNDERDRIVE drum assembly with discs [3 friction discs] automatic transmission A4CF0 08-up 4541402400 4542402400 4541602400 4542002400

UNDERDRIVE drum assembly with discs [3 friction discs] automatic transmission A4CF0 08-up 4541402400 4542402400 4541602400 4542002400

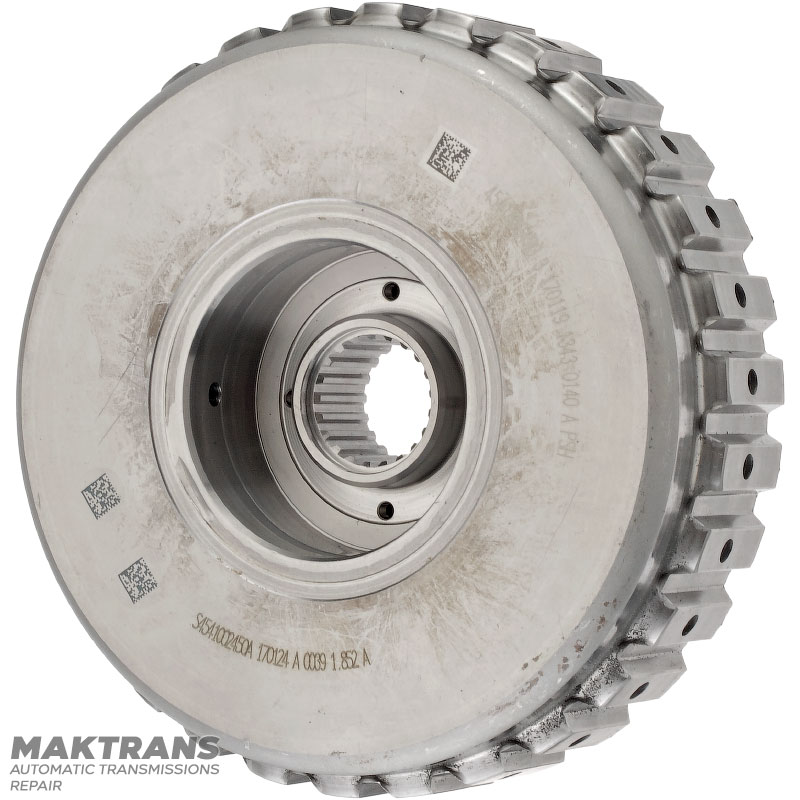

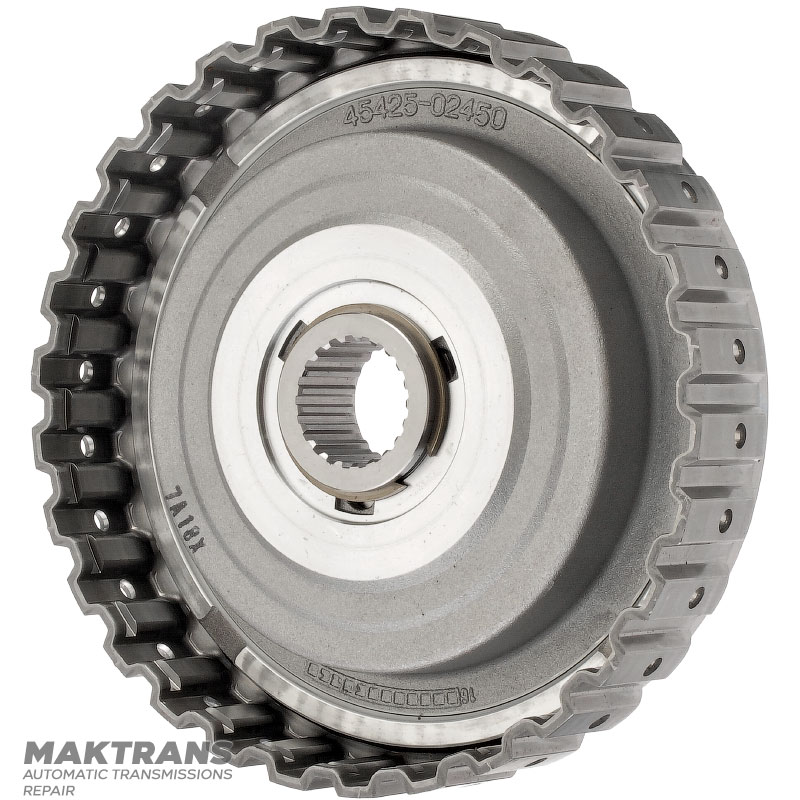

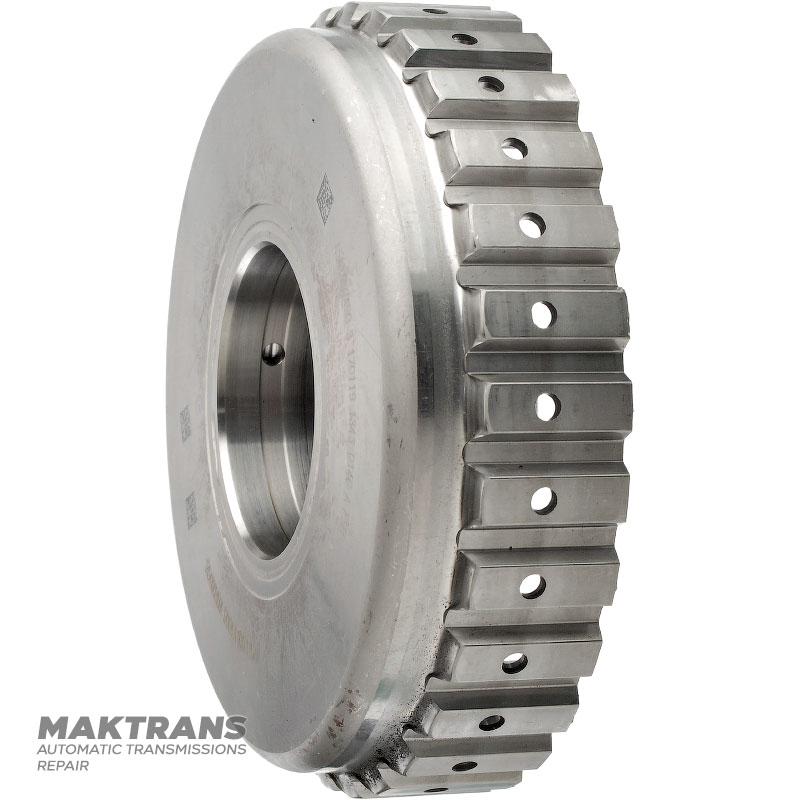

UNDERDRIVE Drum

Total drum height - 38.00 mm;

Drum outer diameter - 136.50 mm;

Support disk:

• Thickness - 4 mm / 2.80 mm;
• Inner diameter - 109.00 mm;
• Number of teeth - 20 pcs;
• Number of disks in the set - 1 pc;

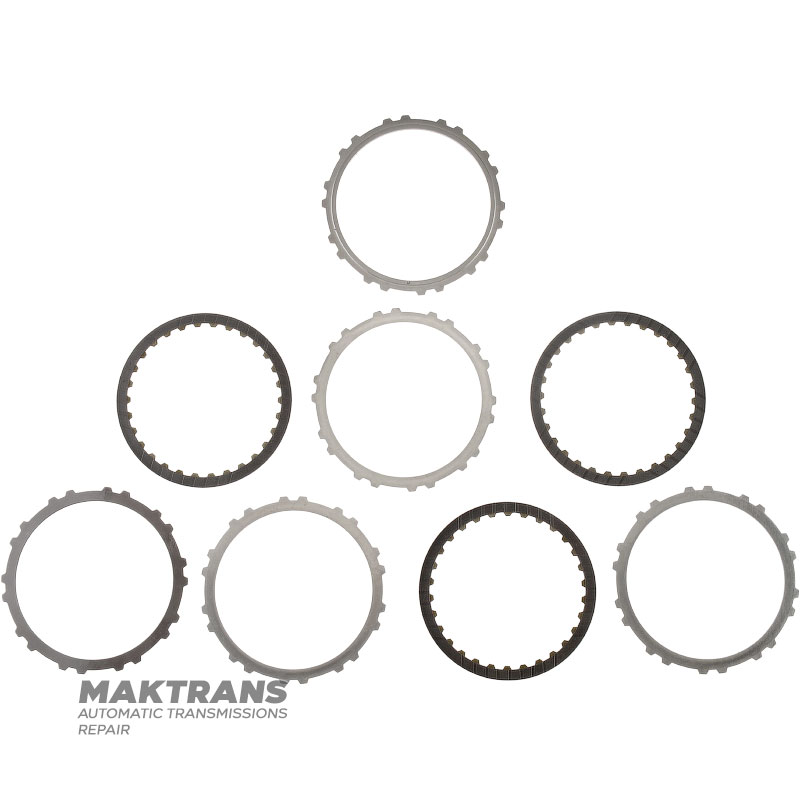

Friction disc:

• Thickness - 1.75 mm;
• Outer diameter - 124 mm;
• Number of teeth - 30 pcs;
• Number of discs in the set - 3 pcs;

Steel disk:

• Thickness - 1.80 mm;
• Inner diameter - 109.35 mm;
• Number of teeth - 20 pcs;
• Number of discs in the set - 3 pcs;

Wavy disk

• Thickness - 1.15 mm;
• Inner diameter - 109.35 mm;
• Number of teeth - 20 pcs;
• Number of disks in the set - 1 pc;
