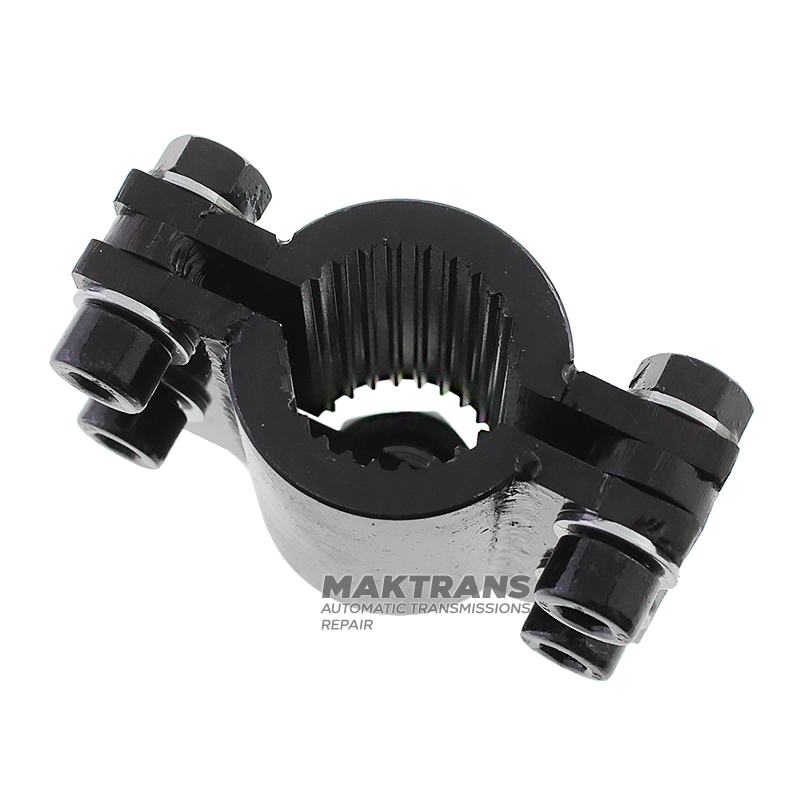

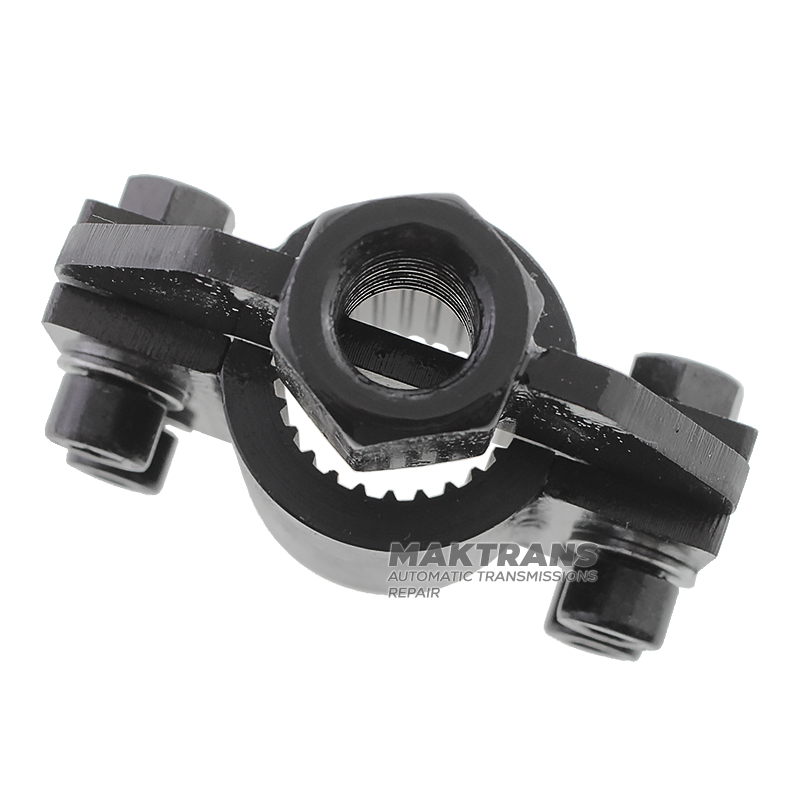

VAG DSG Clutch Release Tool 0B5 (DL501) - For use with Slide Hammer

*** Slide hammer not included.

Removing the VAG DSG 0B5 (DL501) transmission clutch can be a difficult and time-consuming task without the use of special tools.

The clutch puller is a clamping mechanism that is operated by a slide hammer.
It allows you to carefully remove the clutch without the risk of damaging it or surrounding components.

Directions for use:

1. Loosen the clamping mechanism.
2. Install the puller onto the splined portion of the clutch, ensuring a secure fit.
3. Tighten the screws to secure the tool.
4. Attach a slide hammer to the threaded hole of the puller.
5. Using a series of reciprocating hammer blows, carefully remove the clutch from the shaft.

Using this tool greatly simplifies the dismantling process and reduces the risk of damage to the transmission.
