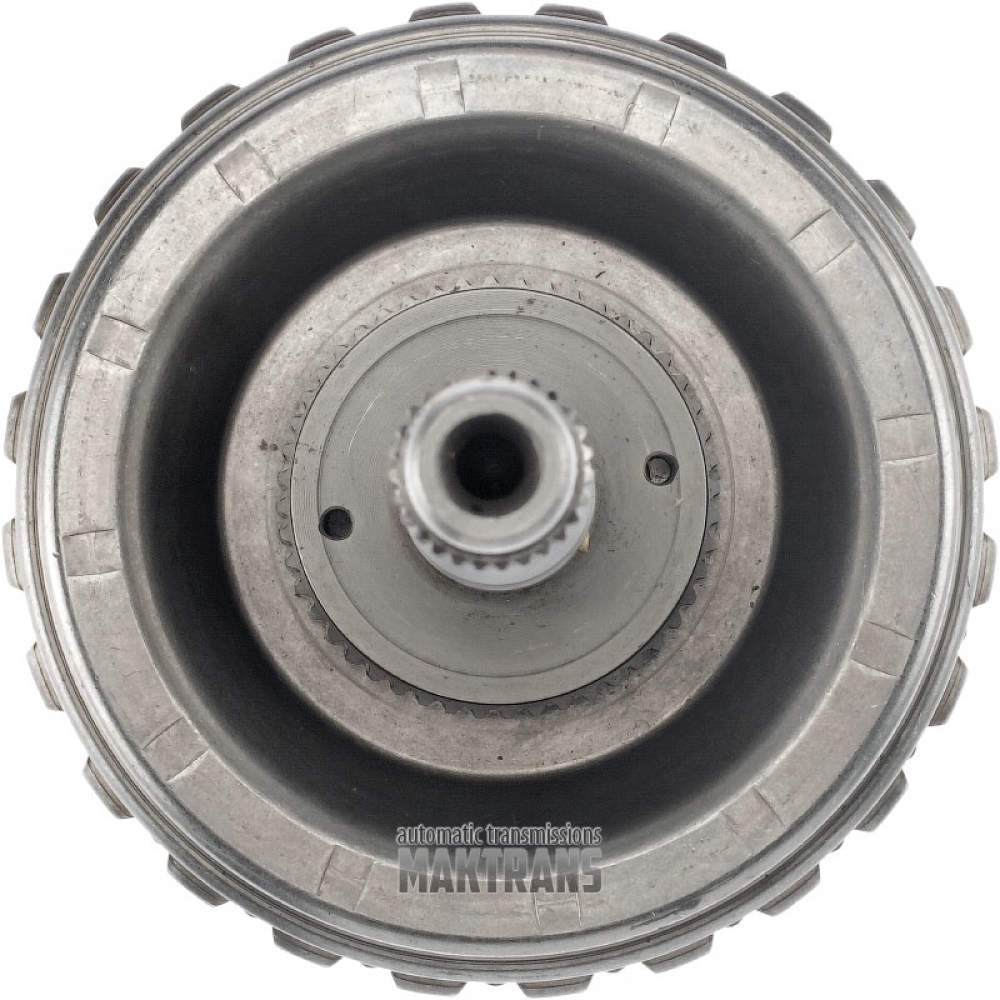

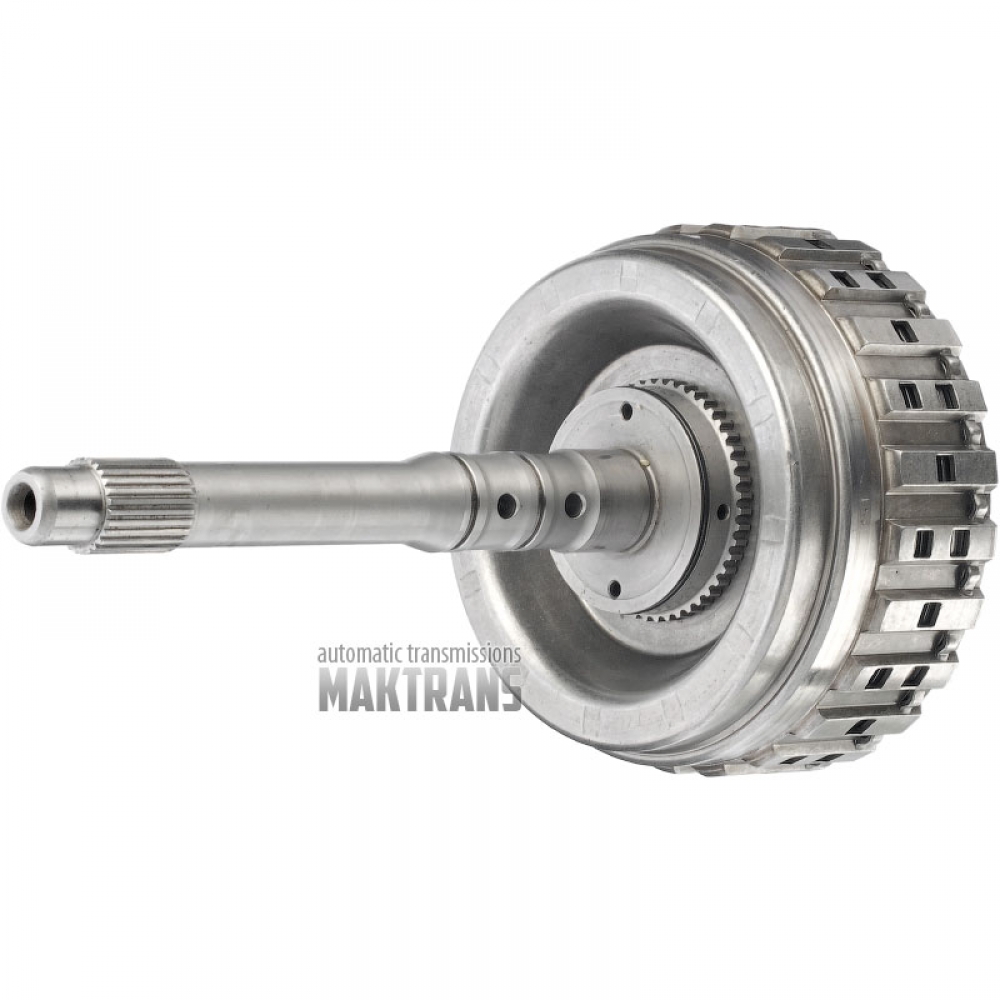

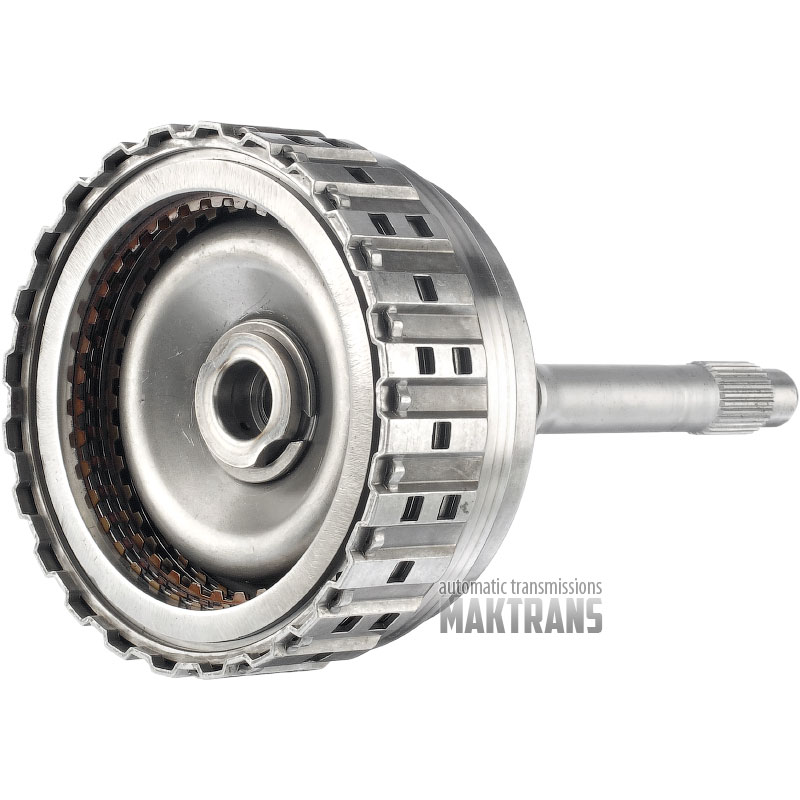

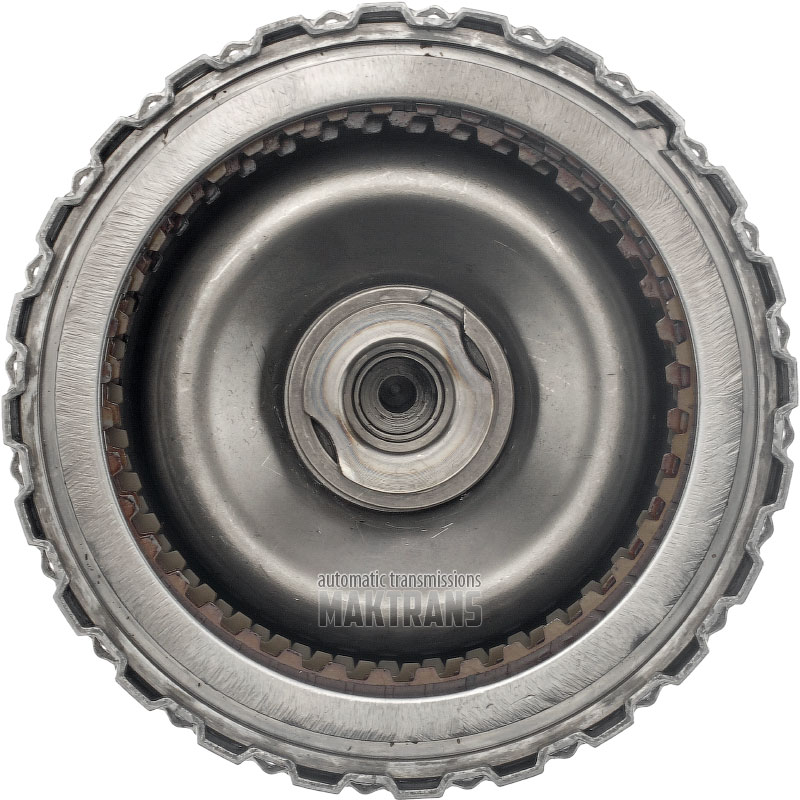

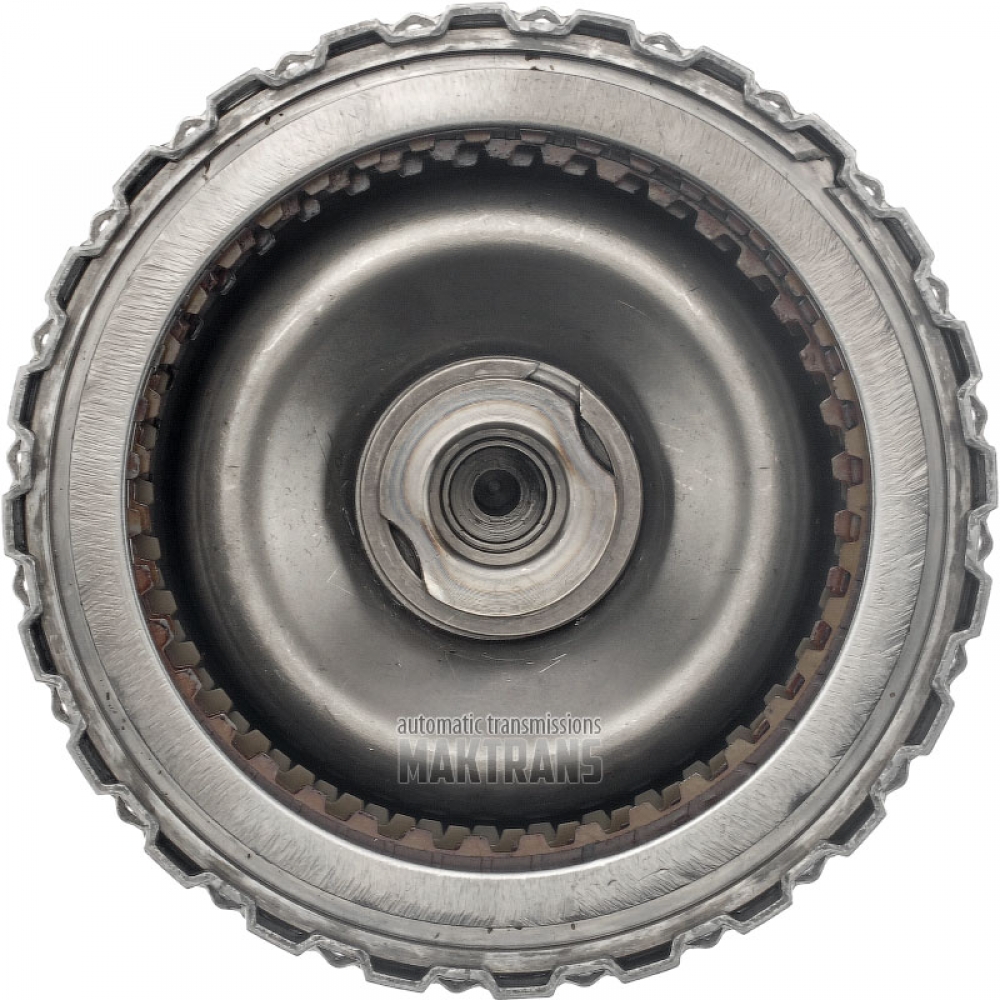

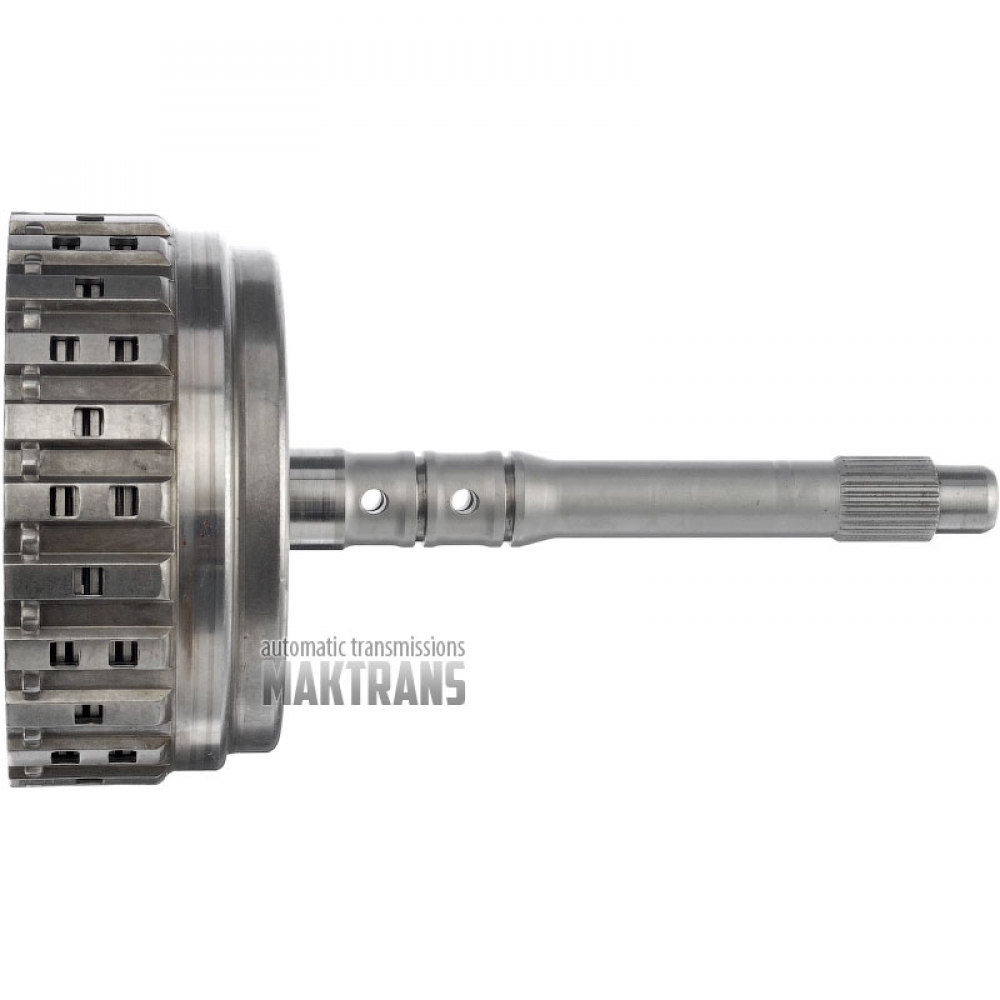

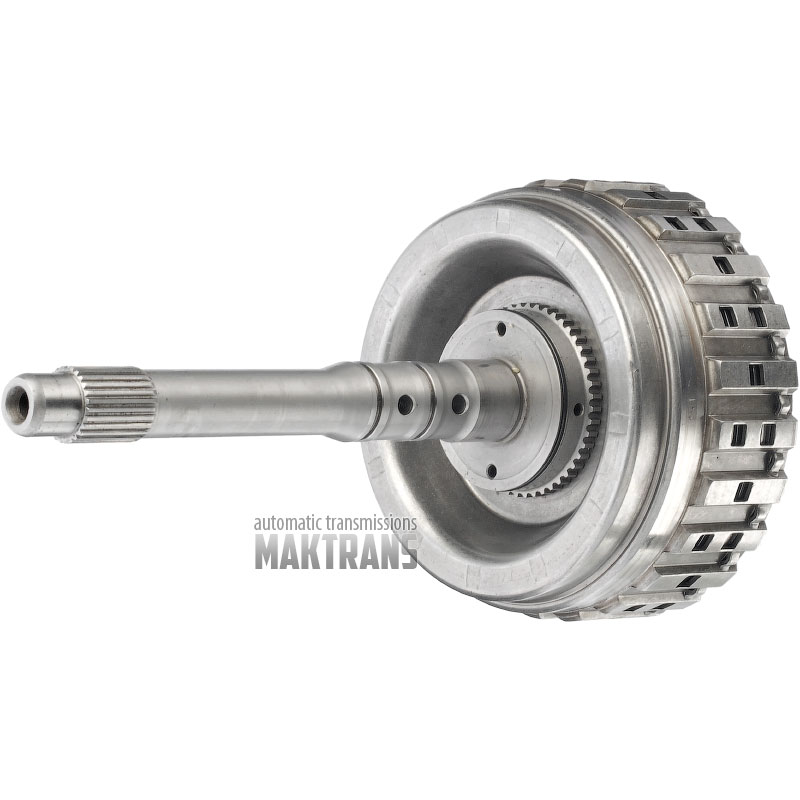

Input shaft / drum A Clutch ZF 5HP24 5HP24A / 6 friction plates (total thickness of set 25.50 mm)

Input Shaft/Drum A Clutch:

• Total height - 249 mm;
• Number of splines on the shaft - 27 pcs.;
• The outer diameter of the spline part is 21.95 mm;

Outer diameters of the working parts of the shaft:

• 18mm;
• 26 mm;
• Drum outer diameter - 141.90 mm;
• Height (on the inside) from the piston to the retaining ring - 28 mm;

Frction and steel plate kit A Cutch

Thrust plate:

• Thickness - 5.90 mm / 2.85 mm;
• Inner diameter - 107.15 mm;
• Number of teeth - 24 pcs.;
• Number of plates - 1 piece;

Friction plate:

• Thickness - 1.55 mm;
• Outer diameter - 128 mm;
• Number of teeth - 40 pcs.;
• Number of plates - 6 pcs.;

Steel plate:

• Thickness - 2.05 mm;
• Inner diameter - 106.85 mm;
• Number of teeth - 24 pcs.;
• Number of plates - 6 pcs.;

Spring wavy plate:

• Thickness - 0.80 mm;
• Inner diameter - 106.80 mm;
• Number of teeth - 24 pcs.;
• Number of plates - 1 piece;
