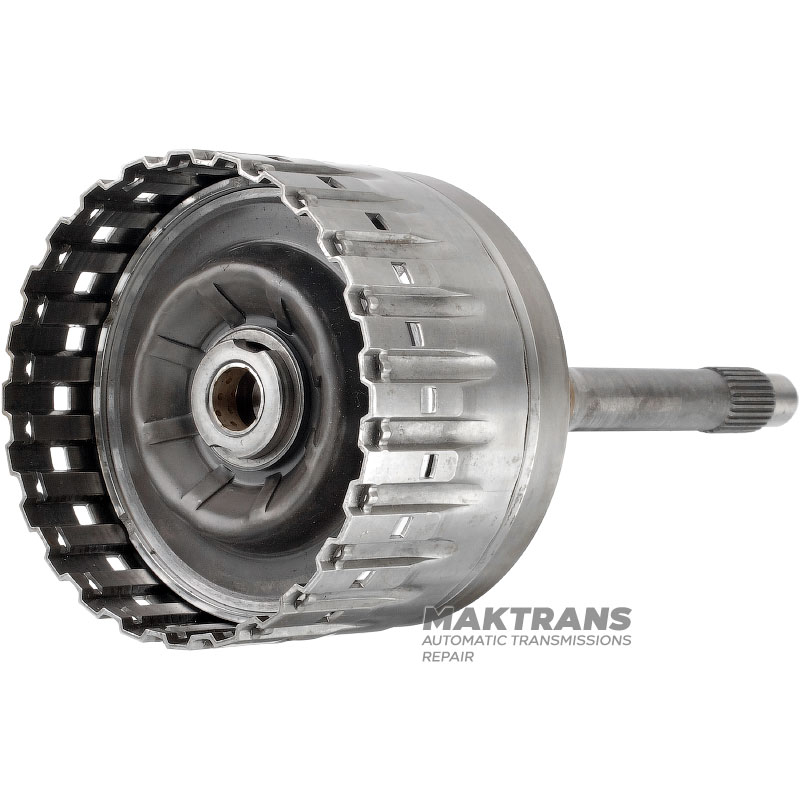

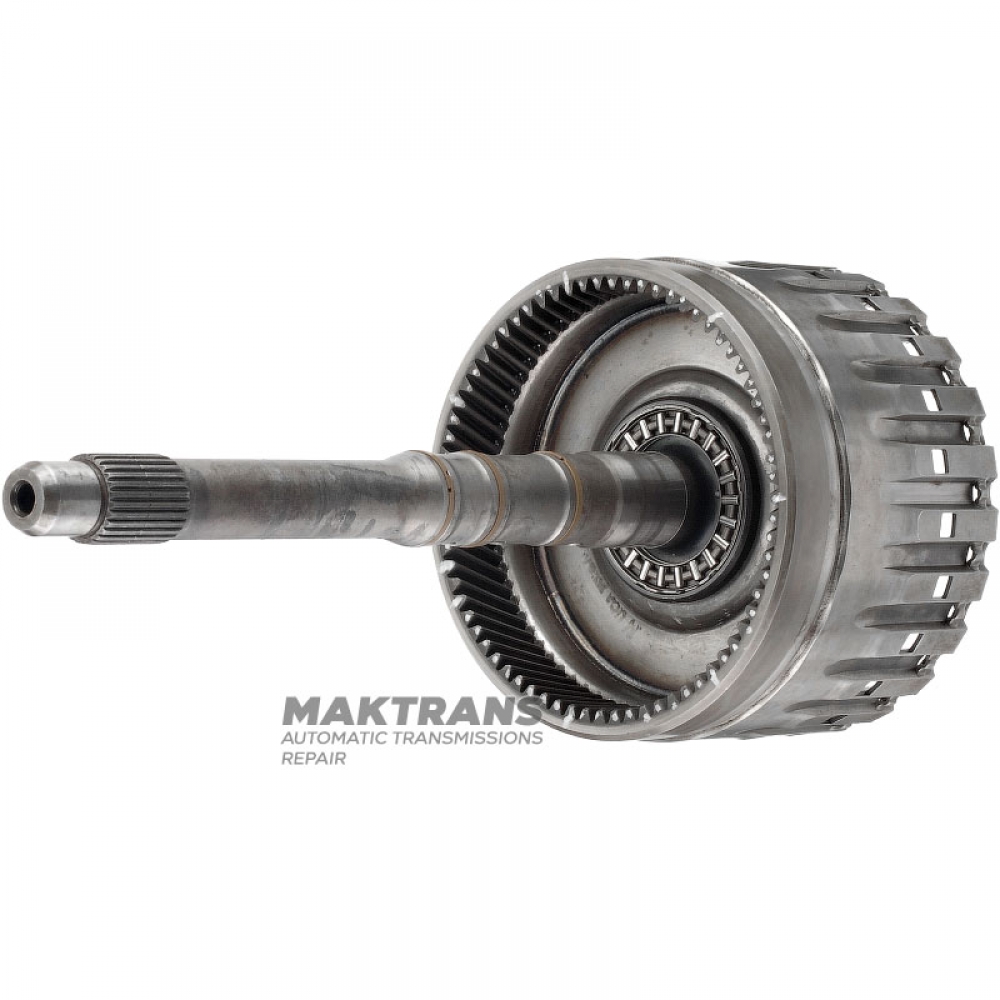

Input shaft / drum E Clutch (without disc kit (under 4 friction discs), with pistons) ZF 6HP19 - reconditioned, (total shaft height 297 mm, ring gear 71 teeth)

• Total height - 297 mm;
• Number of splines - 27 pcs.;
• The outer diameter of the spline part is 22 mm;

Diameters of the working parts of the shaft:

• 17.90 mm;
• 25.90 mm;

• Number of teeth on the ring gear - 71 pcs.;
• The outer diameter of the ring gear is 130.35 mm;
• Drum height (including ring gear) - 90 mm;
• Height from the piston to the retaining ring (on the inside of the drum) - 24 mm;
