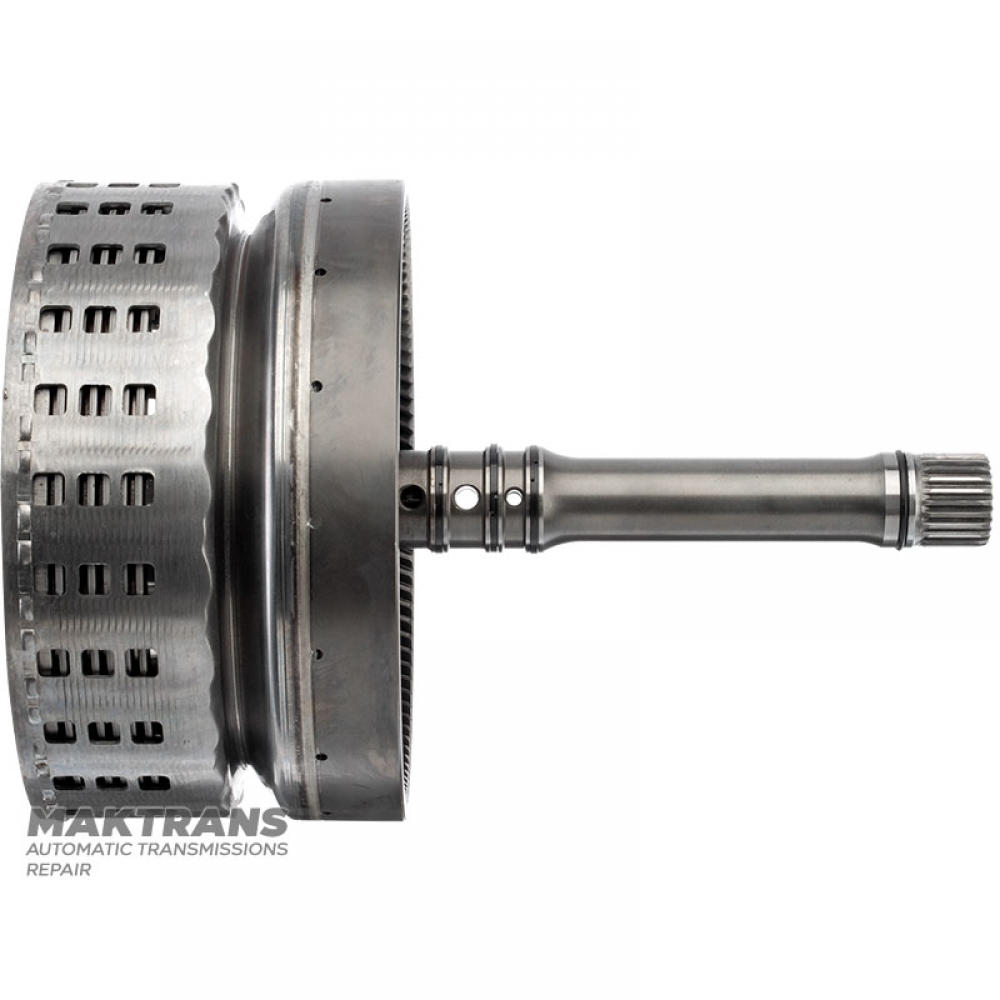

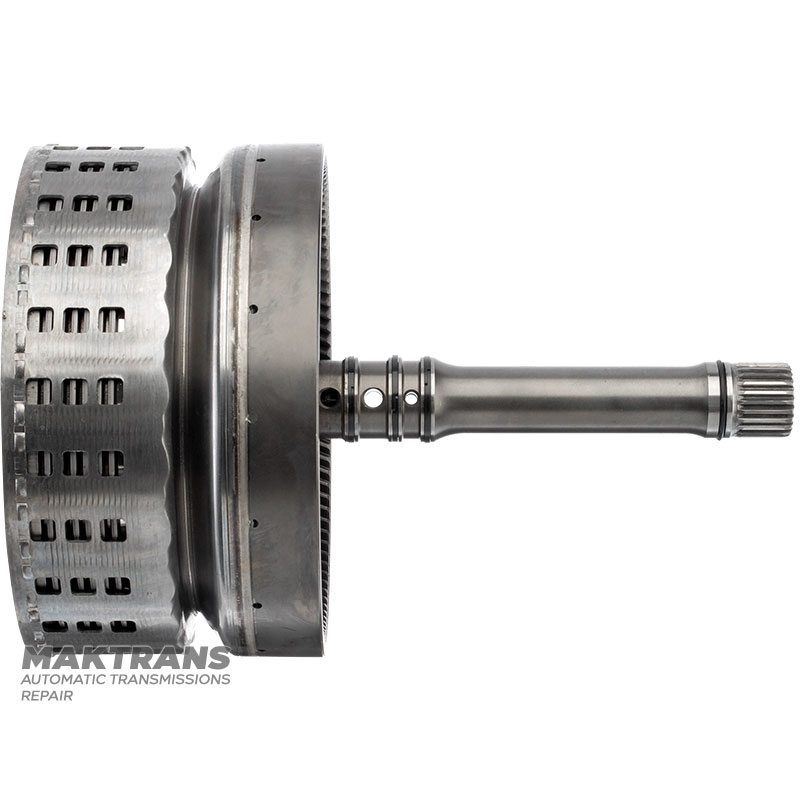

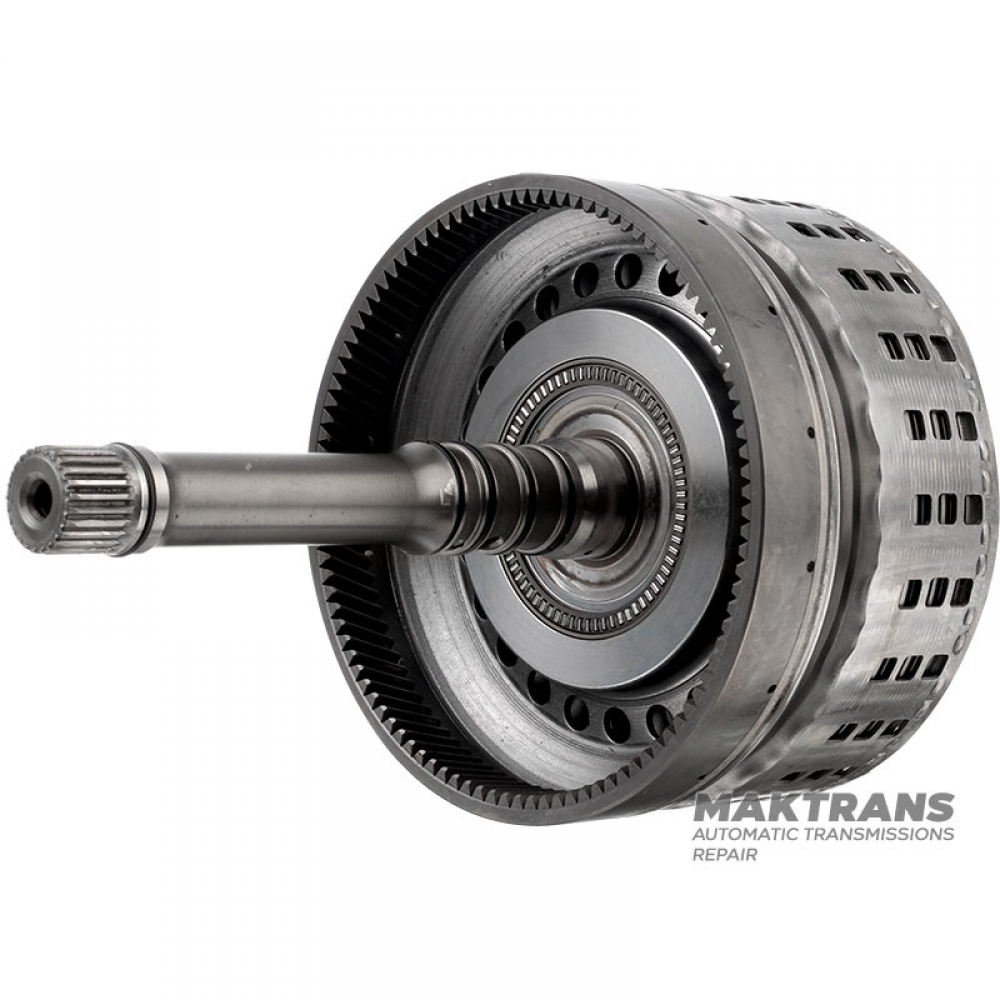

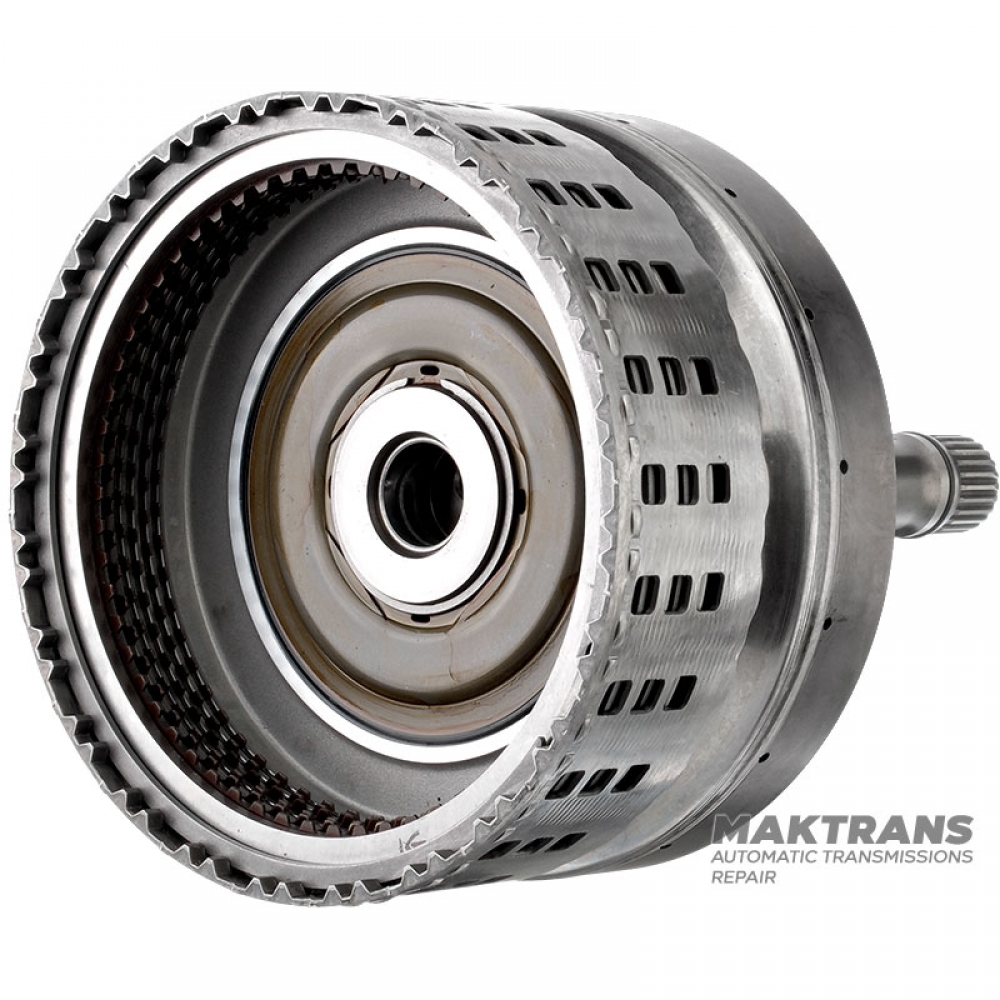

Input shaft / drum K1 Clutch NISSAN RE5R05A / JATCO JR507A [total height 255 mm, 6 friction plates]

• Total height - 255 mm;
• The height of the shaft from the base of the drum is 187 mm;
• Number of splines - 24 pcs.;
• Spline length ~ 18.50 mm;
• The outer diameter of the spline part is 25.75 mm;
• The outer diameter of the working part of the shaft at the base of the drum is 32.90 mm;
• The number of teeth on the ring gear is 102 pcs.;
• The outer diameter of the ring gear is 174.20 mm;
• Drum height (including ring gear) - 98 mm;
• Height from the piston to the retaining ring (on the inside of the drum) - 28 mm;

Friction and steel plate kit K1 Clutch :

• The total thickness of the set is 27.40 mm;

Thrust plate:

• Thickness - 4 mm;
• Inner diameter - 144.05 mm;
• Number of teeth - 24 pcs.;
• Number of plates - 1 piece;

Friction plate:

• Thickness - 1.85 mm;
• Outer diameter - 161.05 mm;
• Number of teeth - 60 pcs.;
• Number of plate - 6 pcs.;

Steel plate:

• Thickness - 2.05 mm;
• Inner diameter - 144 mm;
• Number of teeth - 24 pcs.;
• Number of plates - 6 pcs.;
