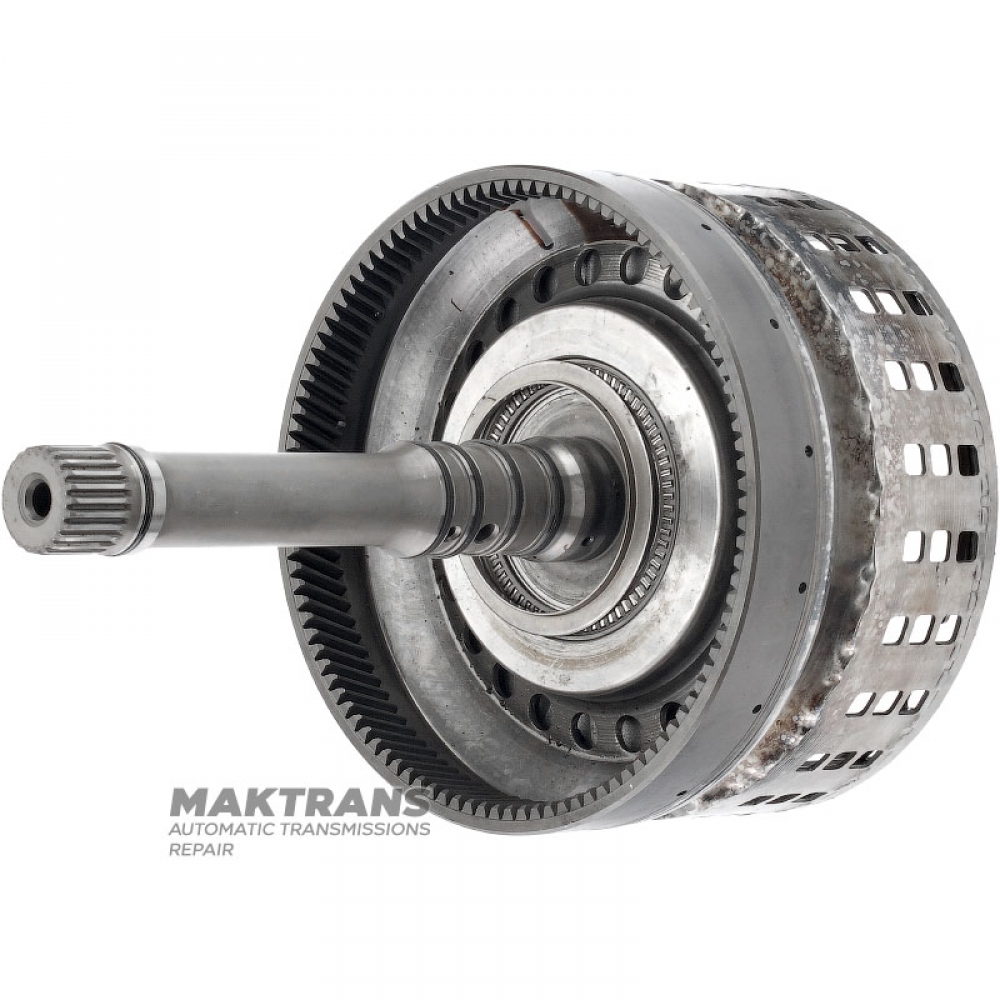

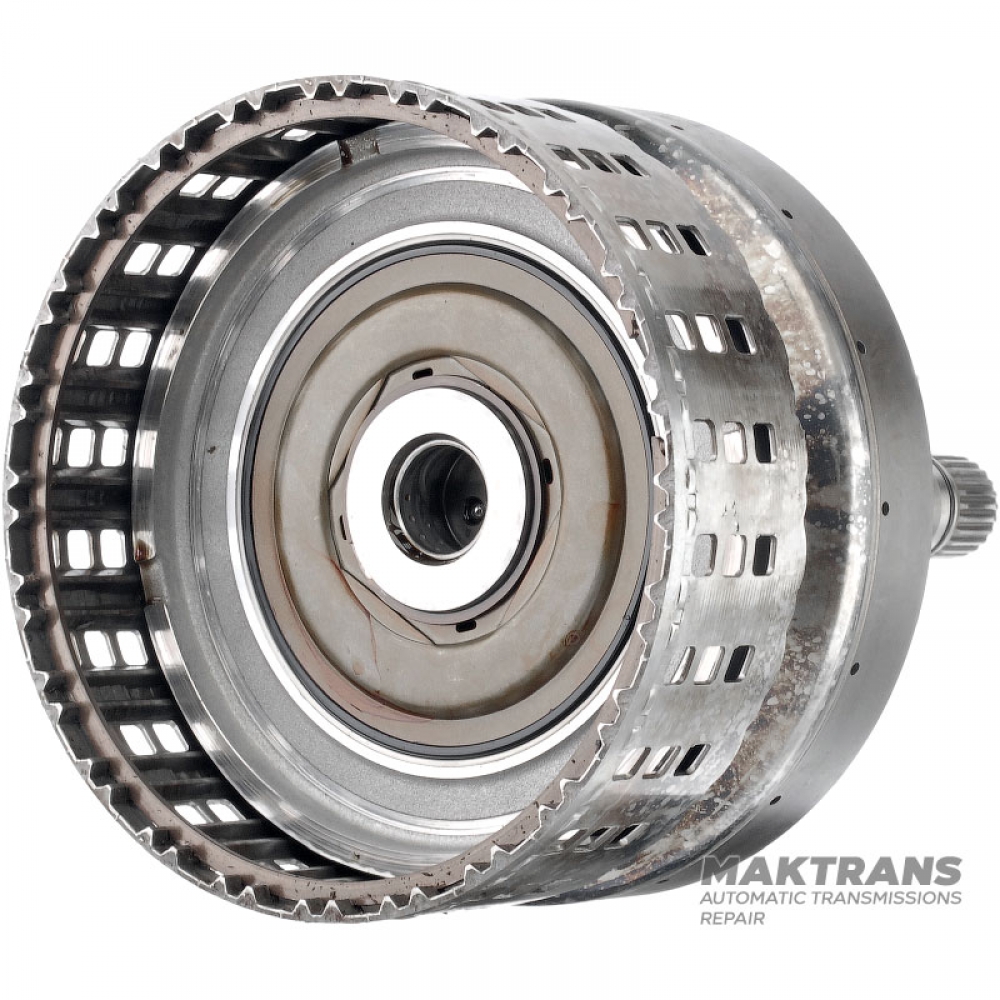

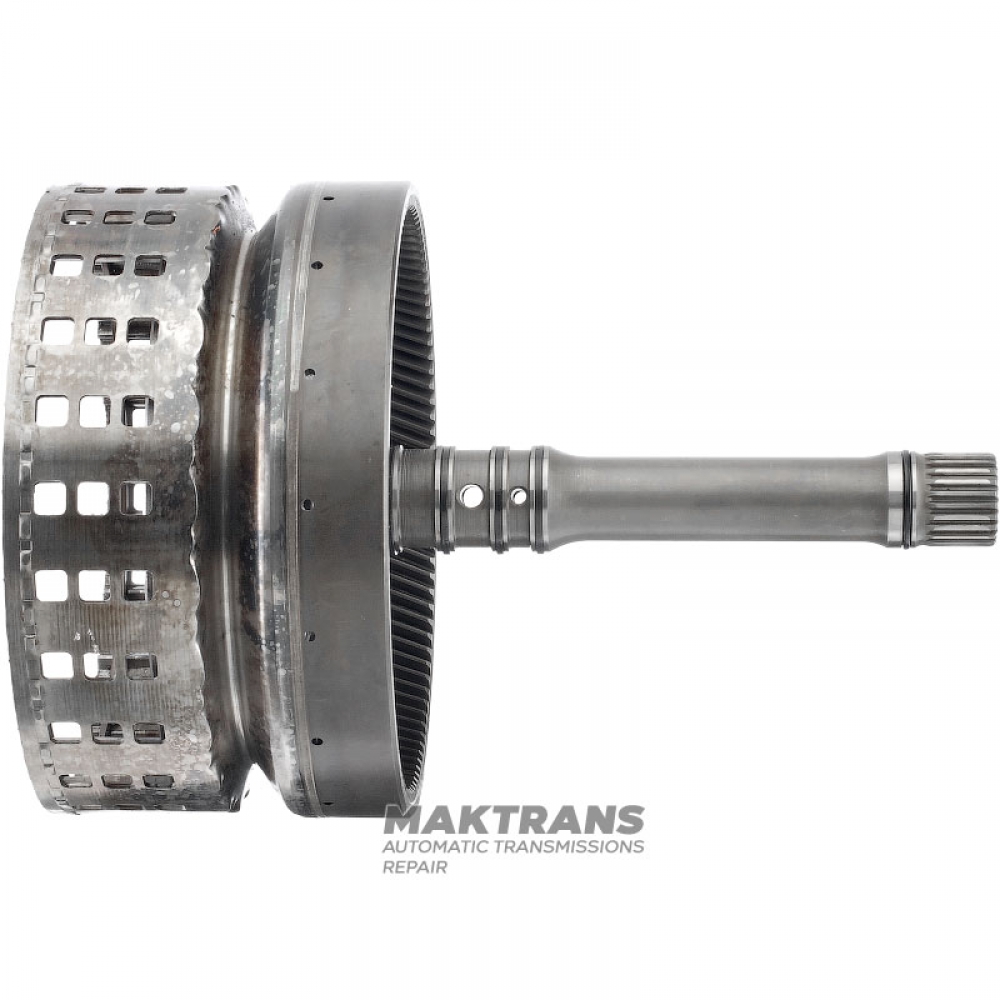

Input shaft / drum K1 Clutch NISSAN RE5R05A / JATCO JR507A [total height 255 mm, without K1 Clutch disc set (6 friction packs)]

Name: Input shaft / drum K1 Clutch NISSAN RE5R05A / JATCO JR507A [total height 255 mm, without K1 Clutch disc set (6 friction packs)]
Brand: JATCO
Price: 155.83 EUR
Availability: InStock

Worldwide Shipping 🌎

Product Code:

RE5R-K1-PUST

Product model copied to clipboard

Brand

JATCO

Availability: 1

Weight (kg): 3.6

€155.83

Shipping Icon Shipping to United States from €87.8

Main Specifications

Condition (used, new): used and inspected

Type: input shaft

Equipment level: K1 Clutch (empty, no discs)

Number of friction plates: 6

Number of teeth: 102

Height (mm): 256

Available Options

Stock Place:	Availability:	Price:	Qty:
Ukraine	1 pcs.	€155.83

Qty:

Product overview
Shipping & Payment
Questions - Answers (0)
Gearbox works better with (6)

Total height - 255 mm;
The height of the shaft from the base of the drum is 187 mm;
Number of splines - 24 pcs.;
Spline length ~ 18.50 mm;
The outer diameter of the spline part is 25.75 mm;
The outer diameter of the working part of the shaft at the base of the drum is 32.90 mm;
The number of teeth on the ring gear is 102 pcs.;
The outer diameter of the ring gear is 174.20 mm;
Drum height (including ring gear) - 98 mm;
Height from the piston to the retaining ring (on the inside of the drum) - 28 mm;
